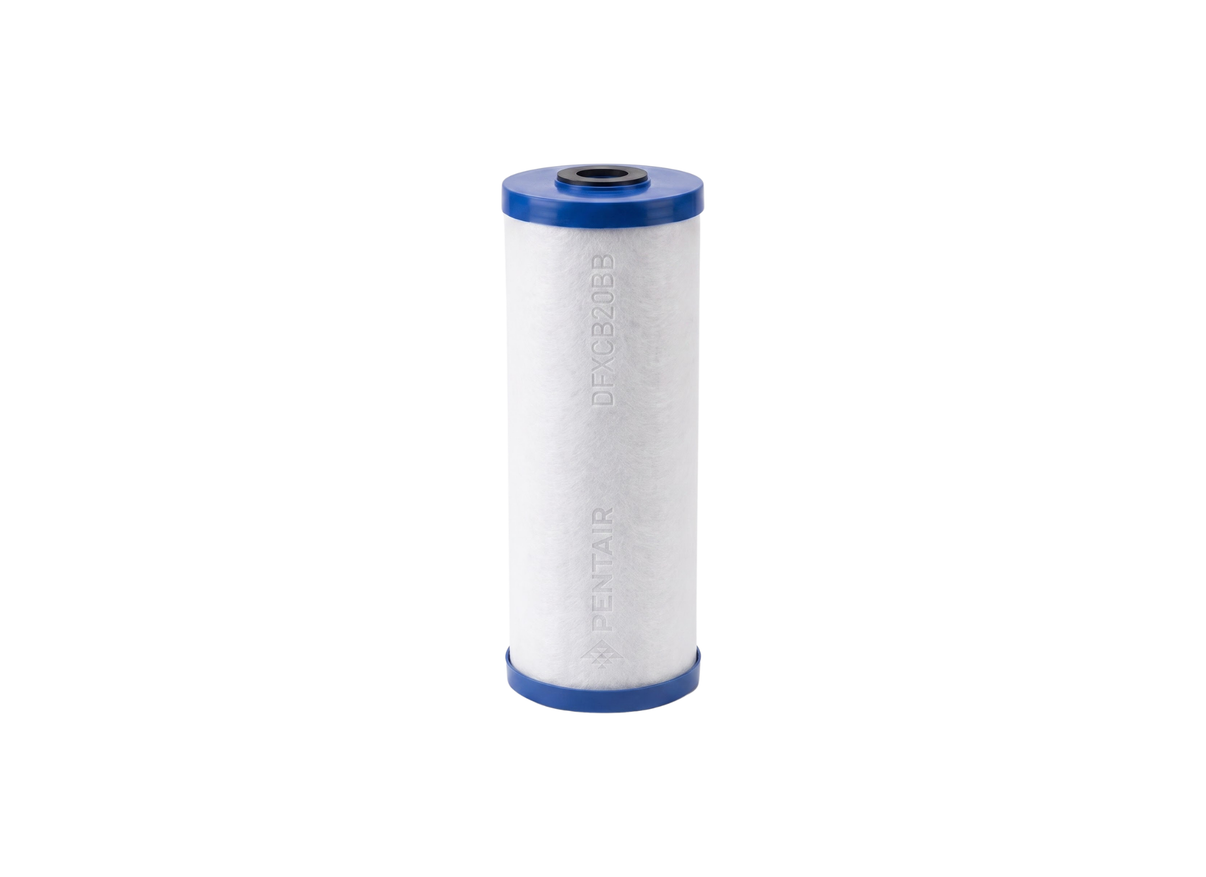

Onga DFXCB20BB Diamond Flow Dual-Purpose Carbon Block 10 Micron 4.5" x 20" Replacement Cartridge

Dual-purpose sediment filtration and carbon block treatment are combined in this elongated cartridge, suitable for point-of-entry high-flow water purification. It is designed for installation inside 20-inch Big Blue filter housings, including the Stage 2 of UV7501.

Hybrid construction features a polypropylene polyspun outer sediment wrap surrounding a traditional extruded carbon block core. Sized for whole-house housing sumps, the physical dimensions are 4.63 inches in outer diameter by 20.035 inches in length (117.6 mm by 508.89 mm). The cartridge includes polypropylene end caps and gaskets.

Tested performance demonstrates twice the resistance to particulate plugging compared to standard carbon block cartridges. Sourced technical tables specify an initial pressure drop of 1.0 psi at an initial test flow rate of 15.14 Lpm. The cartridge is rated at a nominal 10-micron level, operating on cold water lines at temperatures up to 51.7 degrees Celsius.

Commercial and residential filtration systems can utilize this high-volume replacement carbon block, cataloged under part number DFXCB20BB. The outer layer acts as a built-in pre-filter, maximizing the chemical adsorption capacity of the carbon block. Standard servicing requires replacing the cartridge every 6 to 12 months.

FEATURES

• Diamond Flow dual-purpose design provides sediment and taste filtration.
• Tested and certified by NSF International to NSF/ANSI Standard 42.
• Outer polyspun polypropylene pre-filter wraps an inner carbon core.
• Twice the resistance to particulate plugging compared to standard blocks.
• Nominal 10-micron filtration rating captures dirt, silt, sand, and rust.
• Fits standard Big Blue 20-inch filter housings for point-of-entry loops.

Warranty: Pentair warrants this product against defects in materials and workmanship under normal use and service for a period of one year from the invoice date.
