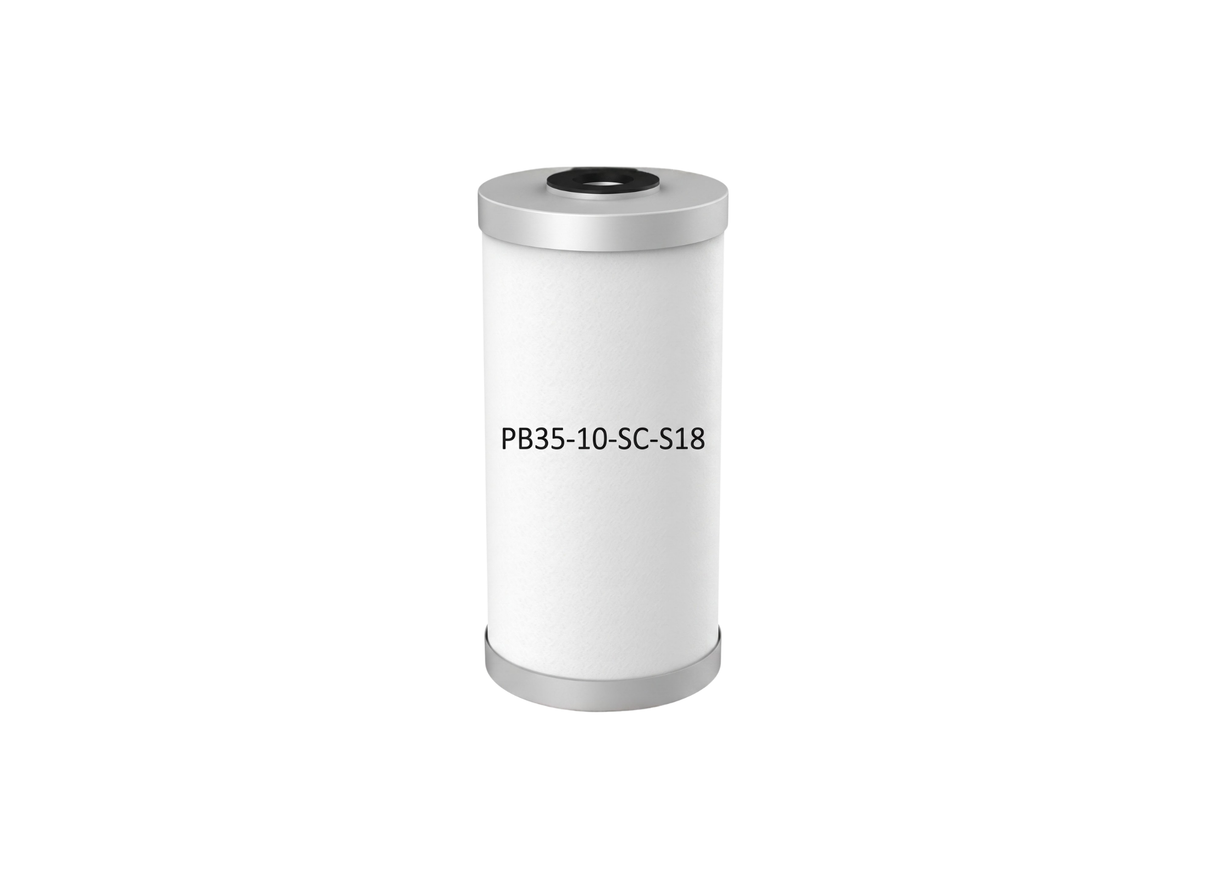

Onga PB3510 Extruded Carbon Block Lead & Cyst 0.5 Micron 4.5" x 10" Replacement Cartridge

Extruded as a carbon block, this filter cartridge is suitable for point-of-entry lead and cyst reduction. It is designed for installation inside 10-inch Big Blue filter housings, including the Stage 2 of UV5505, providing a secondary barrier.

Surrounding a central water flow core, the carbon block wall is manufactured with specialized lead-reducing binders and polypropylene end caps. The physical dimensions are a nominal 10 by 4.5 inches. The solid structure withstands water pressures up to 500 kPa.

Cyst reduction is achieved mechanically by a nominal 0.5-micron filtration rating, certified to NSF/ANSI Standard 53 to reduce microscopic cysts such as cryptosporidium and giardia. The cartridge operates on cold water lines with a working temperature range up to 51.7°C, performing chemical reduction.

Installing this element requires correct vertical alignment within the filter housing sump to prevent fluid bypass. Cataloged under orderable part number PB3510, it features a high chemical adsorption capacity. To maintain certification compliance, the cartridge requires replacement every 6 to 12 months.

• Extruded carbon block structure provides lead adsorption and chemical filtration.
• Tested and certified by NSF International to NSF/ANSI Standard 53.
• Polypropylene end caps provide stable sealing inside 10-inch sumps.
• Nominal 0.5-micron filtration rating captures giardia and cryptosporidium cysts.
• Resists chemical degradation and provides high chlorine odor reduction.
• Fits standard Big Blue 10-inch filter housings for point-of-entry loops.

Warranty: Pentair warrants this product against defects in materials and workmanship under normal use and service for a period of one year from the invoice date.
