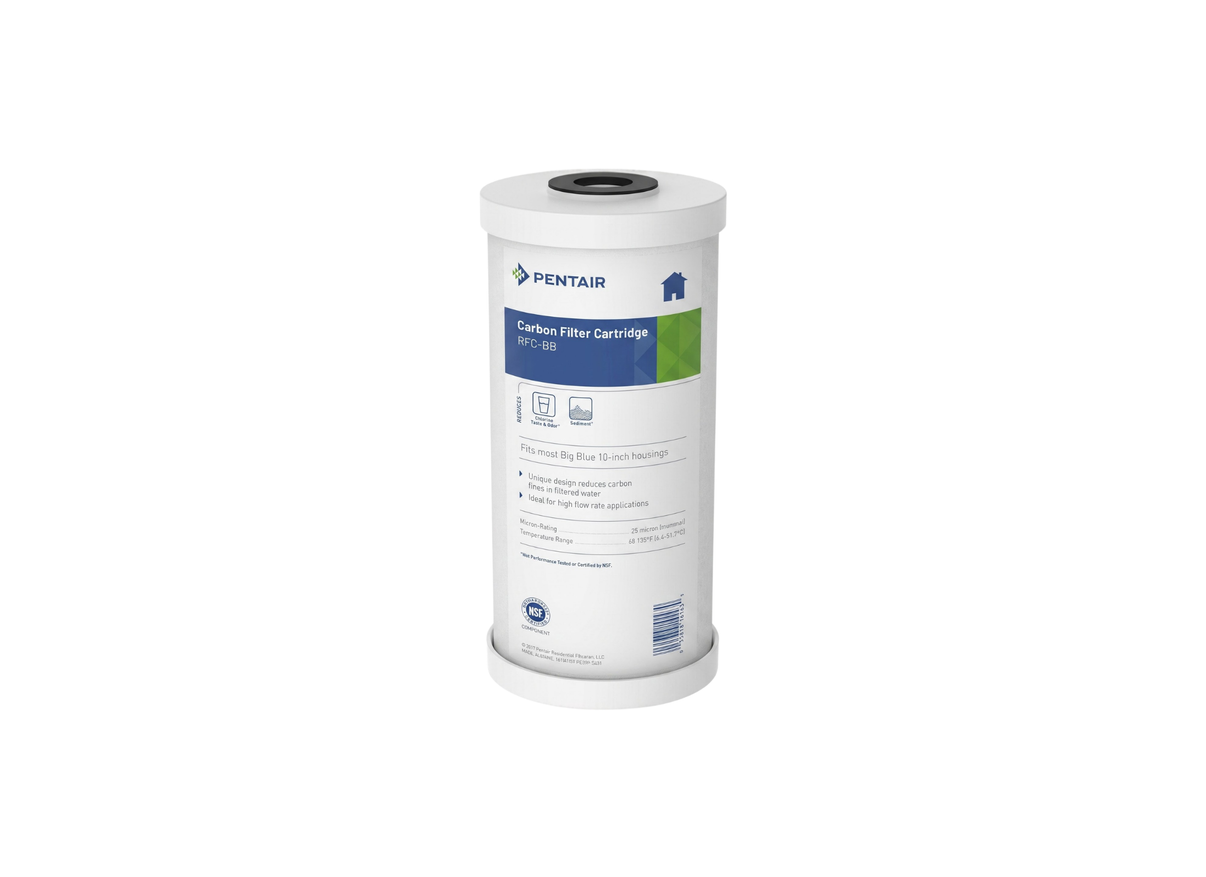

Onga RFC10BB Radial Flow Granular Carbon 20 Micron 4.5" x 10" Replacement Cartridge

Radial flow carbon filtration technology allows this cartridge to reduce chemical contaminants with minimal water pressure loss. It is designed for installation inside 10-inch Big Blue filter housings, including the Stage 2 of UV5510.

Polyethylene porous outer shell measuring 70 microns surrounds a central bed of granular activated carbon and a spun polypropylene core. The physical dimensions are specified as a nominal 10 by 4.5 inches. Solid end caps support the radial structure.

Pressure drop under testing conditions is rated at 0.90 psi at a test flow rate of 7.6 Lpm, showcasing high-flow hydraulic efficiency. The radial flow design reduces the release of carbon fines into the filtered water supply compared to standard granular activated carbon cartridges. It operates at temperatures up to 51.7°C.

Point-of-use or point-of-entry configurations can utilize this element, which is cataloged under part number RFC10BB. The model RFC-BB is Tested and Certified by NSF International to NSF/ANSI Standard 42 for material requirements only. Standard maintenance guidelines recommend replacing the cartridge every 6 to 12 months.

• Radial flow carbon design provides chlorine taste reduction with low pressure loss.
• Tested and certified by NSF International to NSF/ANSI Standard 42.
• Porous 70-micron polyethylene outer shell captures incoming sediment.
• Central spun polypropylene core stops release of carbon fines into plumbing.
• Nominal 20-micron filtration rating traps fine rust flakes and silt.
• Fits standard Big Blue 10-inch filter housings for point-of-entry loops.

Warranty: Pentair warrants this product against defects in materials and workmanship under normal use and service for a period of one year from the invoice date.
