Roll over image to zoom
SKU: 4GS07-1

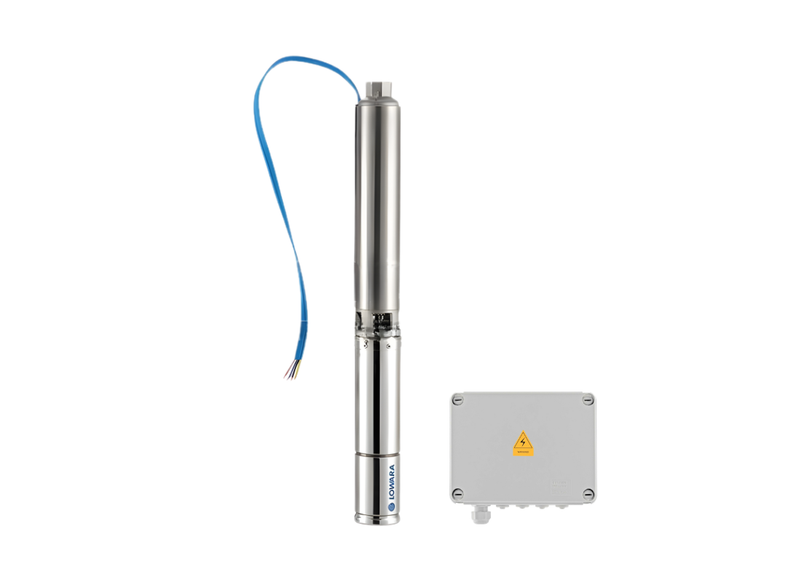

Lowara 4GS07-1 304 Stainless Steel 4" Submersible Bore Pump with Control Box
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
The Lowara 4GS07-1 is a robust 4" stainless steel submersible bore pump engineered for reliable groundwater supply in domestic, rural and irrigation applications.
Manufactured with a high content of AISI 304 stainless steel, the pump delivers excellent corrosion resistance and durability in borehole environments. The multistage centrifugal design provides strong pressure capability, while the floating impeller system helps minimise wear caused by sand and small abrasive particles commonly found in bore water.
Supplied with a control box for straightforward installation and motor protection, the 4GS07-1 is well suited for domestic water supply, livestock watering, irrigation systems and water transfer from bores. Its compact 4" design allows installation in narrow boreholes while delivering efficient and dependable pumping performance.
FEATURES
- 4" stainless steel submersible bore pump
- High-grade AISI 304 stainless steel construction
- Floating impeller design for improved wear resistance
- Maximum flow: 90 L/Min
- Maximum head: 54 m
- Multistage centrifugal pump design
- Single phase motor with control box included
- IP68 rated motor for underwater operation
- Suitable for domestic water supply, irrigation and livestock watering
- Designed for clean groundwater pumping applications
SPECIFICATIONS
| Max Flow | 90 L/Min |
| Max Head | 54 m |
| Power | 0.75 kW / 240v |
| Rated Current | 5.9 Amps |
| Suitable For | Bore Water / Irrigation / Domestic Supply / Stock Watering |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What electrical input power and supply voltage are specified for this submersible unit?
Powering the rotating stages of the 4GS07-1 requires coupling to a 0.75 kW motor on 220–240 V, 50 Hz, single-phase, utilizing a 4OS motor with dedicated control box submerged to 150 meters.
What integrated check valve mechanism protects this bore pump against reverse flow drainage?
Submerged service in deep wells requires housing the 4GS-07-1 in a 4-inch borehole installations down to 150 meters, equipped with an integrated non-return check valve to prevent backflow.
What elevation depth into an underground reservoir can this submersible pump elevate water from?
Overcoming substantial vertical lift, the 4GS 07 1 provides a peak dynamic head performance of approximately 54 m.
What steady water volume can this submersible pump deliver across its discharge outlet?
Discharge performance for the 4GS_07_1 yields a maximum water flow rate of approximately 90 L/Min under rated duty.
How do the hydraulic materials of this bore pump endure underground corrosion and grit?
Protection against gritty aquifer chemistry is delivered by AISI 304 stainless steel casing, floating Lexan impellers, and Noryl diffusers, enabling the 4GS07-1 to tolerate abrasive suspended sand concentrations up to 150 g/m³.
