SKU: 805024
Bianco iCON 250L Packaged Sewage Pump Station with B120GS2 Grinder Pump & iALARM
Australia-Wide
(08) 9240 2992
Official Bianco
Peace of Mind
Product Overview

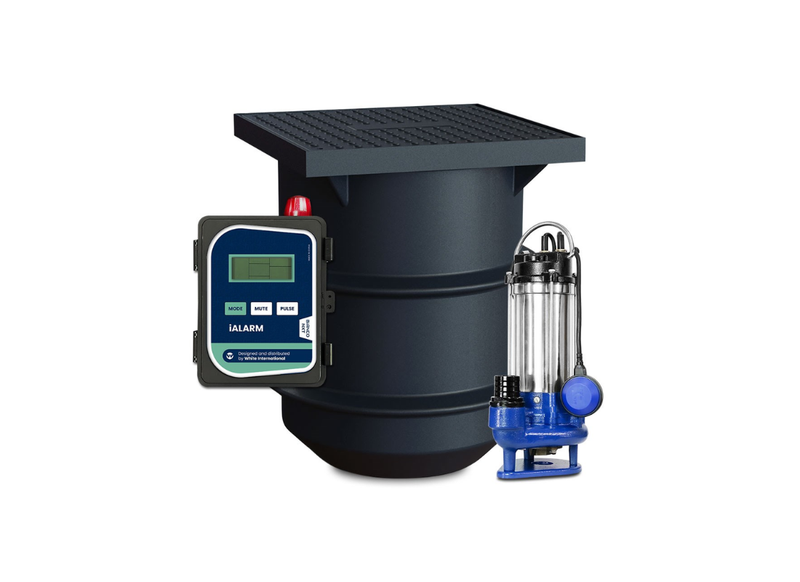

The Bianco iCON 250L Packaged Sewage Pump Station with B120GS2 Grinder Pump & iALARM is a complete underground wastewater lifting system designed for applications where sewage and wastewater cannot be discharged by gravity.
The system combines a durable 250 litre polyethylene pump station with the powerful Bianco B120GS2 automatic grinder pump, providing a compact packaged solution for pumping sewage, trade waste and effluent from below the main sewer level.
Powered by a 1.5kW, 240V single-phase motor, the B120GS2 delivers a maximum flow of 341 LPM and maximum head of 21 metres. Its grinder mechanism reduces soft solids into smaller particles before pumping, making the system particularly suited to sewage and wastewater applications.
The station is supplied with a Class A polyethylene walkover lid, DN100 inlet seal, combination ball/swing check valve, flexible discharge hose with camlock connection, 6mm stainless steel lifting chain and shackles, and 2" tank discharge, providing a professionally packaged system ready for installation.
FEATURES
- 1.5 kW single phase grinder pump (240V)
- Maximum flow: 341 litres per minute
- Maximum head: 20 metres

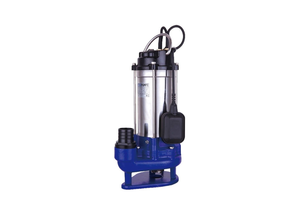

- Heavy-duty B120GS2 grinder pump with cutting system
- 250 litre polyethylene wastewater pump pit
- Pre-installed internal pipework and valves
- Non-return valve and isolation ball valve included
- Bianco iALARM audible and visual level alarm
- Designed for sewage and wastewater containing soft solids
- Stationary pump station installation
- 2" discharge connection
- Suitable for domestic and commercial pump-away systems
SPECIFICATIONS
| Max Flow | 341 L/Min |
| Max Head | 20 m |
| Power | 1.5 kW / 240v |
| Rated Current | 9.5 Amps |
| Suitable For | Sewage / Wastewater / Pump-Away Systems |
| Body Material | Polyethylene Tank / Cast Iron Pump |
| Inlet Size | 100 mm |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What motor type and electrical supply drive this underground lifting assembly?
A 1.5kW single-phase 240V motor powers the iCON-250L grinder pump to reduce soft solids effectively.
Which safety and alarm features are included to monitor liquid levels?
The iCON-250L-Packaged-Station comes equipped with an audible and visual iALARM level warning system.
What pump performance specifications regarding flow and head delivery are featured?
The iCON 250L reaches a maximum head of 21 metres and its Maximum flow is 341 litres per minute.
What tank dimensions and internal hardware components are supplied pre-installed?
Pre-installed pipework, valves, and a 250 litre polyethylene pit equip the iCON 250 L Packaged Station for rapid setup.
What are the primary installation scenarios and target uses for this packaged wastewater station?
Underground wastewater collection below main sewer levels is easily managed using the complete iCON 250L station.
