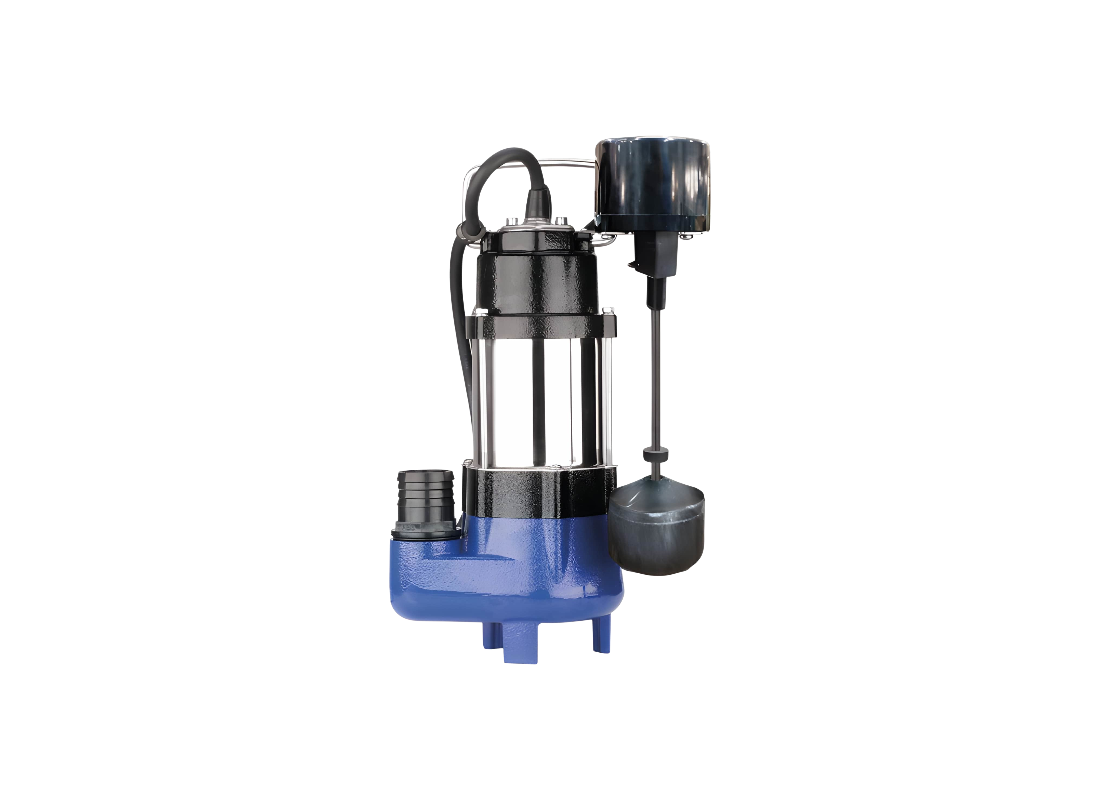

Bianco B25VAS2-FF Cast Iron Compact Submersible Drainage Pump for Ditches with Semi-Open Impeller
Australia-Wide
(08) 9240 2992
Official Bianco
Peace of Mind
Product Overview
Clearing ditches and managing drainage in restricted space pits is specialized for the Bianco BIA-B25VAS2-FF. This compact submersible pump incorporates a vertical float switch to manage float motion, ensuring reliable automatic operation in environments where traditional floats might snag. Its rugged design is ideal for residential dewatering and agricultural drainage where space is limited, providing consistent property protection during high-ingress events where dewatering is mandatory.
Hydraulic performance is provided by a 0.25 kW / 240v single-phase motor operating at a rated current of 1.8 Amps. Based on official technical data, this configuration delivers a maximum flow of 150 L/Min and reaches a maximum head of 7.5 m for efficient liquid evacuation from managed ditches. The asynchronous motor is rated for continuous S1 duty when submerged, ensuring stable performance and low operational noise during intensive residential dewatering cycles.
Clog-free operation is achieved through a single cast iron impeller designed to facilitate a 15 mm free passage for suspended particles. This hydraulic configuration is ideal for lifting clean or slightly contaminated water containing soft solids, as the semi-vortex action minimizes mechanical wear and internal contact. The 1¼-inch discharge with universal hose tail ensures streamlined liquid transfer, maintaining consistent volumetric efficiency even when processing wastewater with minor sediments.
Mechanical construction features a heavy-duty cast iron hydraulic body paired with an industrial-grade coating for superior durability. A dual mechanical seal arrangement prevents moisture ingress into the Class B insulated motor, while the AISI motor shaft offers high mechanical strength. Protection is completed by built-in thermal sensors and an IP68 enclosure rating, shielding the motor during submerged service in depths up to 5 metres in aggressive domestic environments.
FEATURES
- Vertical 'fixed' float design facilitates automatic operation in confined spaces where space is limited.
- Managed float mechanism ensures precise activation with a switch-on water level of 300 mm +/- 10 mm.
- Single cast iron semi-vortex impeller provides a 15 mm free passage for wastewater containing solids.
- Dual mechanical seals provide a high-integrity barrier to protect the motor from liquid ingress.
- Rugged cast iron construction with industrial coating provides resistance to corrosive drainage water.
- Continuous S1 duty asynchronous motor sustains performance during prolonged ditch dewatering tasks.
- In-built auto-resetting thermal overload protector safeguards internal windings from over-temperature.
- 10m H07RN-F neoprene power lead ensures secure connectivity in aggressive submerged conditions.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What specialized clearance targets restricted space ditching?
Ditch clearing and residential or agricultural drainage in areas with restricted installation space during wet weather are suitable applications for the BIA-B25VAS2-FF.
Where do drainage tasks clear restricted space ditches?
The vertical float on the BIA/B25VAS2/FF helps reduce snagging in narrow ditches and compact sumps.
How does ditch clearance operate in restricted spaces?
The BIA B25 VAS2 FF features a semi-vortex impeller with 15 mm free passage for water containing suspended particles in domestic drainage applications.
What drainage tasks target restricted space ditching?
The BIA-B-25-VAS2-FF can evacuate water from narrow ditches and confined collection spaces at agricultural drainage sites.
Which ditches require specialized restricted space clearance?
With a coated cast iron body, dual mechanical seals, and IP68 protection, the BIA_B25VAS2_FF is suitable for submerged drainage applications.
