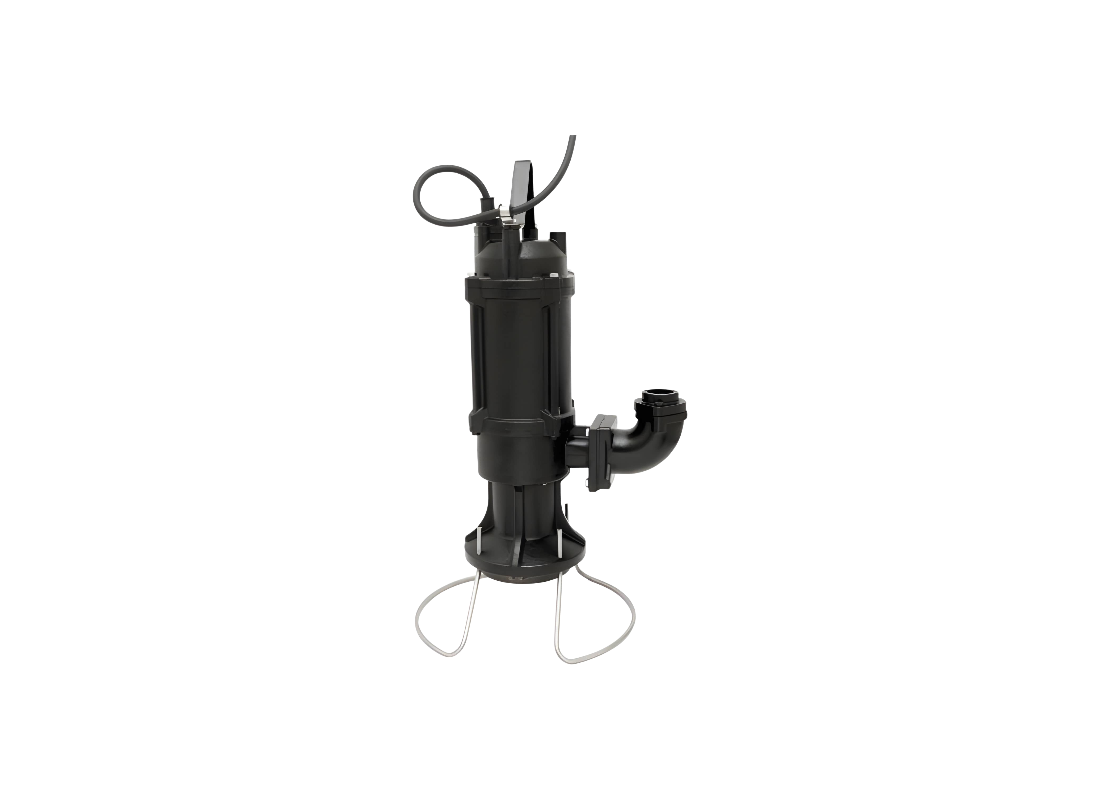

Bianco PDG150T Cast Iron Three Phase Macerator Pump for Biological Wastewater Pumping with Screw Rotor
Australia-Wide
(08) 9240 2992
Official Bianco
Peace of Mind
Product Overview
Three-phase sewer evacuation and the reduction of biological wastewater in commercial environments are the primary roles for this industrial macerator. It targets high-pressure sewer applications where groundwater contains fibrous materials and solids that would degrade standard transfer equipment. The manual design is engineered for commercial building services where structural resilience and three-phase power stability are paramount for long-term service.
Hydraulic output is driven by a 1.1 kW / 415v three-phase motor that attains an exceptional maximum head of 90 m. Drawing a rated current of 3.5 Amps, the assembly achieves a flow of 50 L/Min, providing the substantial lifting force necessary for deep-pit dewatering in high-pressure networks. This electrical configuration ensures stable torque and performance consistency during intensive macerating cycles in industrial conditions.
Superior solids handling is achieved through the integration of a high carbon martensitic stainless steel macerating ring paired with a screw rotor assembly. This configuration significantly lowers the risk of discharge clogs by grinding soft solids and fibrous matter into small particles before evacuation. The elastomer stator configuration facilitates the movement of abrasive material through the 1 1/4" discharge port without clogging the internal passages.
Structural durability features a rugged cast iron housing protected by an industrial coating to resist corrosive sewage conditions. Motor protection is provided by an IP68 enclosure rating and dual Silicon Carbide mechanical seals to maintain thermal stability during active use. The 40kg unit is supplied with a 9.5m H07 power lead, ensuring secure electrical connectivity and high durability in demanding industrial settings.
FEATURES
- Industrial 1.1 kW / 415v three-phase motor provides high-torque stability for commercial sewer duty.
- Macerating ring assembly uses high carbon martensitic stainless steel for superior solids reduction.
- Positive displacement screw rotor design ensures consistent flow in high-pressure sewer applications.
- Rugged cast iron body and motor housing offer exceptional mechanical strength in submerged duty.
- IP68 protection class supports safe and reliable operation at water depths reaching 6.5 metres.
- Silicon Carbide mechanical seals create a robust barrier against high-pressure liquid ingress.
- Manual operation design provides site operators with total control over wastewater discharge cycles.
- High-head 90m performance enables sewage transfer from deep subsurface collection points.
SPECIFICATIONS
| Max Flow | 50 L/Min |
| Max Head | 90 m |
| Power | 1.1 kW / 415v |
| Rated Current | 3.5 Amps |
| Suitable For | Commercial Sewer Networks |
| Body Material | Cast Iron |
| Liquid Temperature | 2°C - 40°C |
| Outlet Size | 32 mm |
| Warranty | 24Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What commercial three-phase sewer evacuation tasks are matched?
Commercial wastewater systems can use the BIA-3PH-MACERATOR for manual sewer evacuation and biological wastewater transfer in high-pressure applications.
What biological wastewater reduction standards are met?
The BIA_3PH/MACERATOR combines a high-carbon martensitic stainless steel macerating ring with a screw rotor to reduce soft solids and fibrous material.
How do heavy-duty grinders process fibrous materials in commercial sites?
With a maximum head of 90 metres and a flow rate of 50 L/min, the BIA/3PH/MACERATOR supports sewage transfer from deep collection points.
What industrial flow rates and head capabilities are delivered?
A rugged cast iron housing, dual Silicon Carbide mechanical seals, and IP68 protection equip the BIA 3PH MACERATOR for demanding submerged operation.
What commercial enclosure and protection ratings apply?
The BIA-3PH_MACERATOR uses a 1.1 kW, 415V three-phase motor rated at 3.5A and includes a 9.5-metre H07 power lead.
