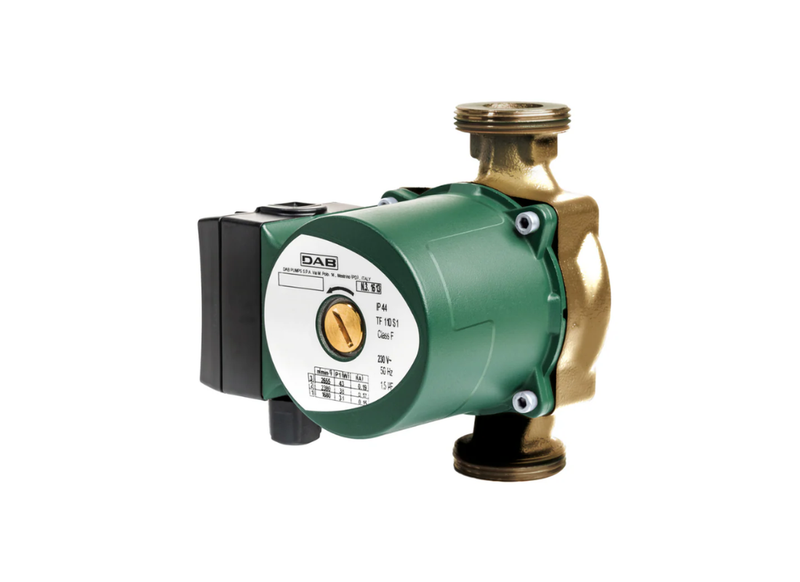

DAB VS65-150 Bronze Hot Water Circulator Pump with Single Speed Setting
Australia-Wide
(08) 9240 2992
Official DAB
Peace of Mind
Product Overview
The DAB VS65-150 is a bronze wet-rotor hot water circulator pump designed for domestic hot water circulation, heating systems and underfloor heating applications. Built with a bronze hydraulic body, die-cast aluminium motor casing and technopolymer impeller, the pump offers corrosion resistance and reliable performance when circulating potable hot water in closed or open domestic systems.
Powered by a 77W single-phase motor, the VS65-150 delivers up to approximately 60 litres per minute with a maximum head of 6 metres. The pump features a ceramic shaft mounted on graphite bushings lubricated by the pumped liquid, ensuring quiet operation and long service life. Designed as a single-speed wet rotor circulator, it operates with minimal maintenance and does not require external overload protection.
The pump is suitable for circulating clean water in domestic hot water recirculation systems, heating circuits and small air-conditioning systems. It supports liquid temperatures from approximately -10 °C up to 85 °C for sanitary use and up to 110 °C for heating applications, with a maximum working pressure of 10 bar.
FEATURES
- 77W single phase motor (240V)
- Maximum flow: 60 litres per minute
- Maximum head: 6 metres
- Bronze pump body for hot water circulation
- Technopolymer impeller
- Wet rotor circulator pump design
- Ceramic shaft with graphite bushings
- IP44 motor protection rating
- 1 1/2" inlet / 1 1/2" outlet
- Designed for domestic hot water circulation systems
SPECIFICATIONS
| Max Flow | 60 L/Min |
| Max Head | 6 m |
| Power | 0.77 kW / 240v |
| Rated Current | 0.34 Amps |
| Suitable For | Domestic Hot Water Circulation / Heating Systems / Underfloor Heating |
| Body Material | Bronze |
| Liquid Temperature | '-10°C to +110°C |
| Inlet Size | 40 mm |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Documents
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which systems commonly use this hot-water circulation pump?What is the maximum permitted working pressure?How does the shaft receive lubrication during operation?Which liquid temperatures are supported for heating use?What pipe connection size is used on this circulator?
The bronze VS65_150 is intended for domestic hot-water recirculation heating circuits, as well as small air-conditioning systems.Maximum working pressure is 10 bar for the DAB VS65 150, whose bronze hydraulic body is designed for hot-water circulation systems.The ceramic shaft runs on graphite bushings lubricated by the pumped liquid, supporting quiet operation in the wet-rotor VS65-150 circulator.For heating applications the VS65/150 supports temperatures up to 110°C. Sanitary use has a approximate range from -10°C to 85°C.The DAB VS65150 has 1 1/2-inch inlet and outlet connections. Its single-speed wet-rotor design is intended for circulating clean water.
