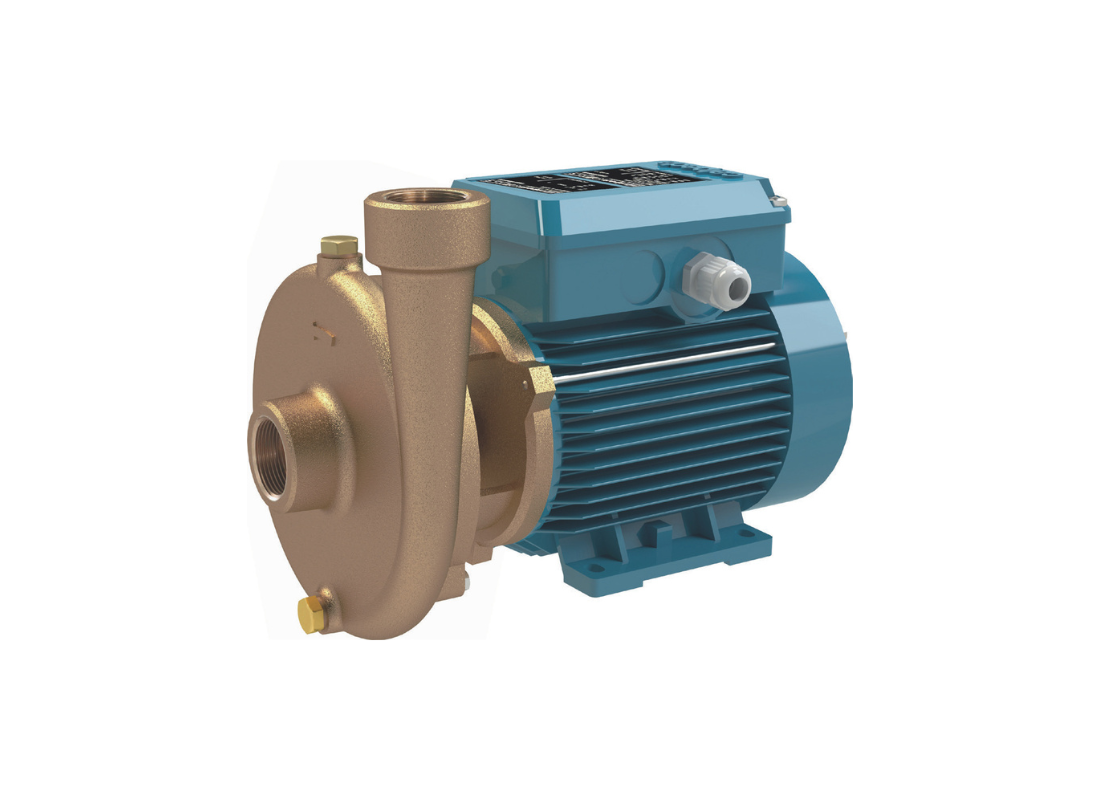

Compact liquid circulation involving emulsions, lightly contaminated fluids, or utility service water can be managed by the Calpeda BC 16/1 through its bronze open-impeller centrifugal arrangement. The hydraulic configuration is suited to smaller systems where unrestricted liquid passage and corrosion-resistant wetted construction are beneficial within confined installation layouts.
Flow capacity extends to 2.4 m³/h while maximum head reaches 5 m, supporting controlled low-pressure hydraulic movement across compact service systems. Power is supplied through a three-phase 400V induction motor rated at 0.15 kW output power with operating current of 1 A and rotational speed near 2900 rpm.
Within the hydraulic section, the open impeller arrangement supports passage of suspended particles up to 4 mm without excessive restriction to liquid movement. The centrifugal flow path assists stable handling behaviour for moderately contaminated liquids while maintaining smooth circulation characteristics during varying operating demand.
Bronze construction is utilized across the pump casing and hydraulic components to support service conditions requiring corrosion-resistant wetted materials. Mechanical shaft sealing is achieved through carbon ceramic seal faces with NBR elastomer support elements, while the motor assembly incorporates IP54 enclosure protection together with class F insulation. Operating capability supports liquid temperatures from -10°C to 90°C with maximum permissible pressure up to 6 bar.
FEATURES- Bronze hydraulic construction supporting corrosion-resistant liquid handling service
- Open impeller geometry assisting suspended particle passage up to 4 mm
- Compact close-coupled centrifugal arrangement minimizing installation space demand
- Three-phase 400V induction motor operating near 2900 rpm rotational speed
- Carbon ceramic mechanical seal arrangement with NBR elastomer support materials
- Class F insulated motor assembly supporting controlled thermal operation
- IP54 enclosure protection assisting resistance against dust and moisture exposure
- Small-capacity hydraulic configuration suited to compact circulation systems
