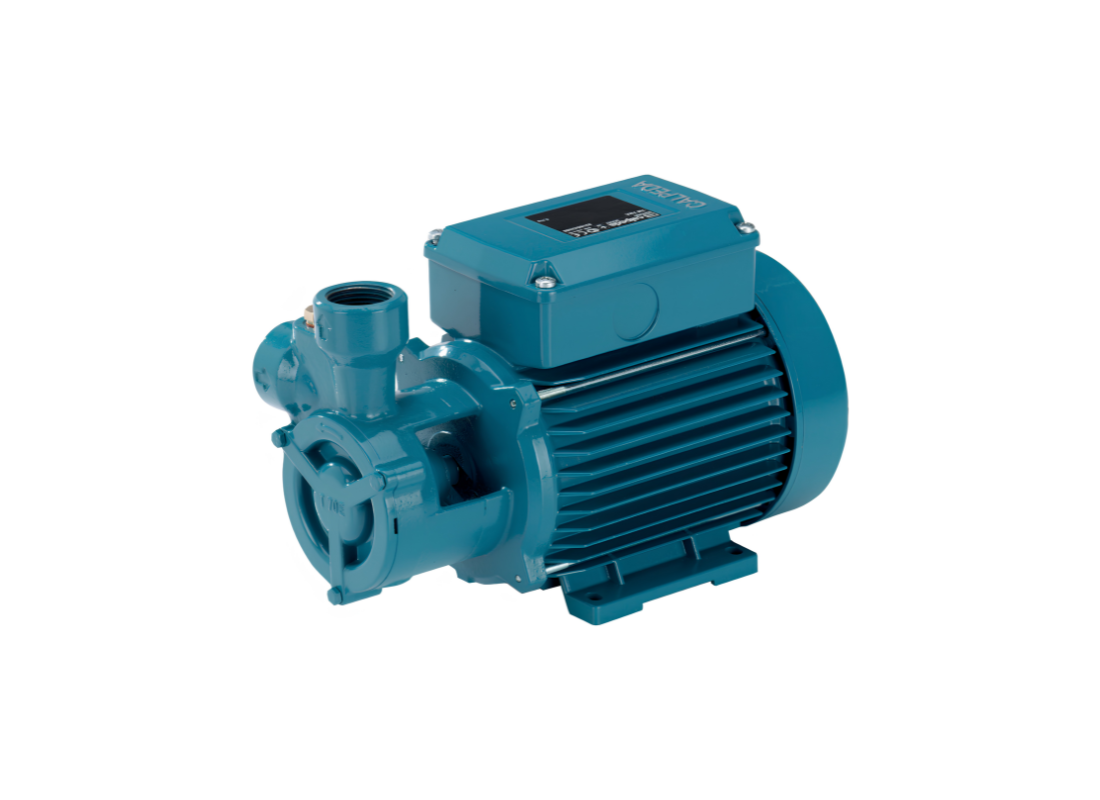

Developed for compact installations requiring elevated pressure generation, the Calpeda TPM 78 peripheral electropump is suitable for domestic pressure systems, controlled circulation duties, technical water transfer, and compact utility boosting applications. Its peripheral hydraulic arrangement is optimized for applications where high head performance is required with relatively low flow delivery.
The single-phase 240V motor operates with 0.37 kW rated output power and produces operating head up to 75 metres with flow performance reaching 16.6 L/Min. This hydraulic performance makes the pump suitable for domestic pressure systems, elevated water transfer duties, circulation loops, and installations where stable pressure delivery is required across moderate flow conditions.
A Brass CW617N EN 12167 impeller operates within the peripheral pumping stage to support efficient pressure-oriented hydraulic operation. The close-coupled electropump structure assists installation inside domestic utility systems and compact circulation assemblies.
Hydraulic body components including the pump casing, lantern bracket, and casing cover are manufactured from Cast Iron GJL 200 EN 1561 for dependable mechanical rigidity under continuous-duty service conditions. The rotating assembly incorporates a Steel 1.4104 EN 10088 (AISI 430F) shaft together with a Carbon-Ceramic-NBR mechanical seal arrangement. The 2-pole single-phase motor operates near 2900 rpm with integrated thermal protection, IP54 enclosure protection, and Class F insulation.
The pump is suitable for clean liquids without abrasive particles, suspended solids, or aggressive substances incompatible with hydraulic materials.
FEATURES- High-head peripheral electropump for compact pressure applications
- Single-phase motor with integrated thermal protector
- Brass CW617N EN 12167 impeller supports elevated pressure generation
- Cast Iron GJL 200 EN 1561 hydraulic body construction
- Close-coupled structure supports compact installation layouts
- Steel 1.4104 EN 10088 (AISI 430F) shaft construction
- Carbon-Ceramic-NBR mechanical sealing arrangement
- IP54 motor protection with Class F insulation system
