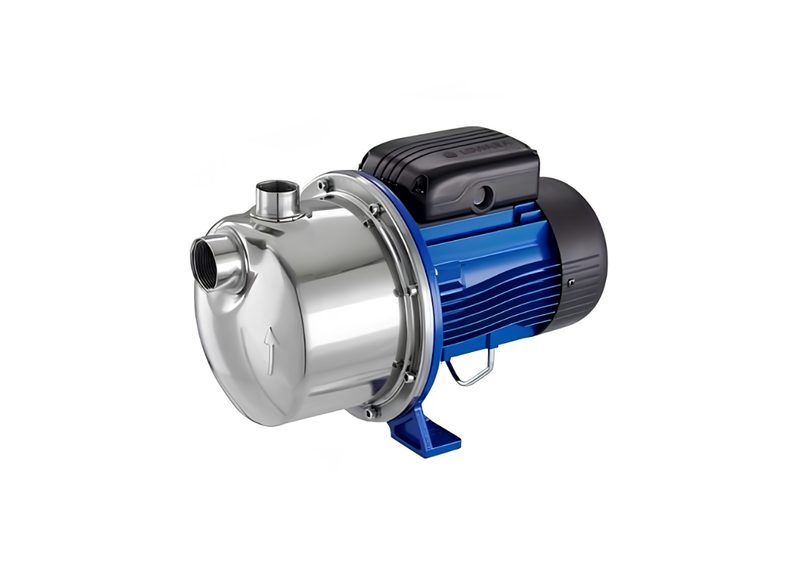

Lowara BGM7 Stainless Steel Reliable Self-Priming Centrifugal Pump for Rainwater with Technopolymer Diffuser
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Suitable for residential rainwater reuse, washing installations, and clean water pressure boosting duties, the Lowara BGM7 delivers dependable self-priming hydraulic performance across domestic water handling environments. Its integrated ejector configuration assists with maintaining stable operation in systems containing dissolved gases within transferred liquid.
Stainless steel hydraulic construction and stainless steel impeller design provide corrosion-resistant durability for continuous clean water handling applications. The pump delivers flow rates up to 55 L/Min with maximum head performance up to 36.6 metres based on the highest non-zero operating point from the technical performance table. The single-phase motor operates on 240v power supply with maximum input power of 0.80 kW and rated current of 4.63A during operation.
Its externally ventilated asynchronous motor configuration supports reliable residential water transfer and pressure boosting performance across continuous operating conditions. The BGM7 incorporates motor type SM80BG/1085 with rated motor power (P2) of 0.8 kW and capacitor specification of 25 µF / 450 V for dependable clean water supply operation.
Compact close-coupled hydraulic construction assists with installation into residential water systems, rainwater transfer setups, and washing applications requiring reliable self-priming operation. The pump features 32 mm inlet and 25 mm outlet connections for integration into clean water transfer installations. Supplied with manufacturer warranty coverage for self-priming centrifugal pump applications.
Features
- Self-priming centrifugal pump with integrated ejector system
- Stainless steel hydraulic and impeller construction
- Single-phase motor configuration
- Designed for residential rainwater transfer duties
- Supports continuous clean water handling operation
- Externally ventilated asynchronous motor design
- Compatible with washing and pressure boosting installations
- Compact close-coupled hydraulic construction
- Reliable clean water transfer performance
- Intended for residential water supply systems
SPECIFICATIONS
| Max Flow | 55 L/Min |
| Max Head | 36.6 m |
| Power | 0.8 kW / 240v |
| Rated Current | 4.52 Amps |
| Suitable For | Rainwater Collection |
| Body Material | Stainless Steel AISI 304 |
| Liquid Temperature | -10°C to +40°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What single-phase supply voltage and electrical power feed this residential water pump?
Energy supply requirements for the BGM7 specify a 0.75 kW motor powered by 220–240 V, 50 Hz, single-phase pulling 4.63 A, incorporating IP55 weatherproof motor enclosure with automatic reset thermal overload protection.
How is this domestic water pump anchored on a horizontal foundation with its integrated assembly?
Positioning on a rigid horizontal floor foundation is specified for the BGM-7, utilizing its integrated ejector for rapid self-priming.
What total dynamic head does this residential self-priming jet unit elevate?
Self-priming operation enables the BGM 7 to deliver a maximum dynamic elevation head of approximately 45.6 m under full service.
What peak flow volume does this residential jet unit deliver across its outlet port?
Self-priming water delivery with the BGM_7 produces a peak flow rate of approximately 80 L/Min across its Rp 1-1/4" (32 mm) suction and Rp 1" (25 mm) discharge ports.
Which metallurgy and ejector alloy components are utilized to resist abrasive deterioration?
Internal fluid pathways are safeguarded against corrosion by AISI 304 stainless steel casing and impeller, with Technopolymer PA66+GF30 built-in ejector in the BGM7, ensuring reliable water movement from -10°C to +40°C.
