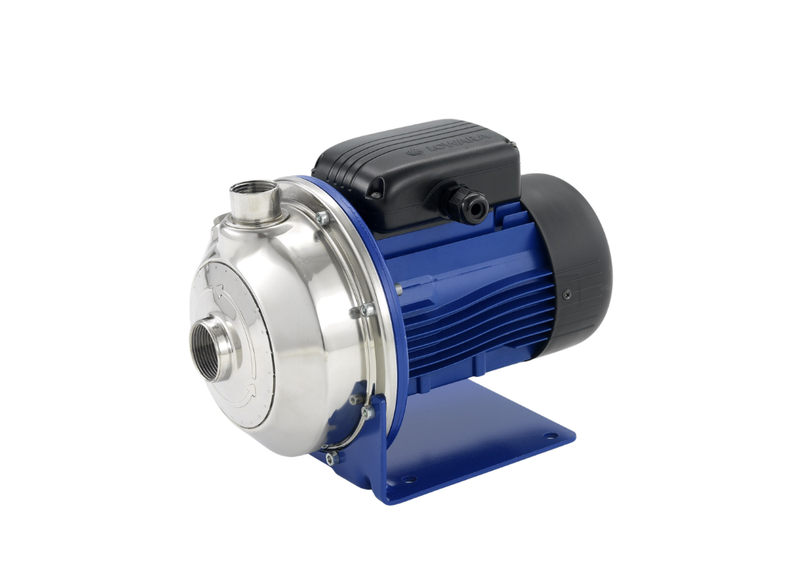

Lowara CEAM70/3V 316 Stainless Steel Centrifugal Pump with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
The Lowara CEAM70/3V Stainless Steel Centrifugal Pump is a high-quality close-coupled surface pump designed for reliable water transfer and pressure boosting in demanding environments. Manufactured with AISI 316 stainless steel wetted components, this pump offers superior corrosion resistance, making it ideal for applications involving aggressive water, food processing, chemical transfer and industrial systems.
The CEAM series features a closed impeller design for efficient hydraulic performance and a back pull-out configuration, allowing easier servicing without disturbing pipework. Powered by a 2.2 kW three-phase IE3 high-efficiency motor, the pump delivers strong and dependable performance for continuous duty applications.
Capable of producing flows up to 520 L/min with a maximum head of approximately 23 metres, the Lowara CEAM70/3V is well suited for commercial water supply, pressure boosting systems, irrigation, industrial transfer and washdown systems.
FEATURES
- Heavy-duty 316 stainless steel pump construction
- High efficiency closed impeller design
- Close coupled centrifugal pump configuration
- Back pull-out design for easier servicing
- IE3 high efficiency motor for reduced energy consumption
- Durable mechanical seal with EPDM elastomers
- Ideal for industrial, commercial and water transfer applications
- Engineered by Lowara / Xylem
SPECIFICATIONS
| Max Flow | 520 L/min |
| Max Head | 23 m |
| Power | 2.2 kW / 240v |
| Rated Current | 7.9 A |
| Suitable For | Water Transfer / Pressure Boosting / Irrigation |
| Body Material | 316 Stainless Steel |
| Liquid Temperature | -10°C to 110°C |
| Inlet Size | 50 mm |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What electrical power and supply voltage are required to operate this single-phase pump?
Energy supply requirements for the CEAM70/3V specify a 0.37 kW motor powered by 220–240 V, 50 Hz, single-phase pulling 2.72 A, incorporating IP55 dust and water spray protection, Class F insulation.
What horizontal mounting orientation and secure floor placement are recommended for this close-coupled unit?
Floor mounting on a horizontal foundation in sheltered environments is advised for the CEAM70-3V, providing an integrated base and adequate drainage.
What maximum dynamic elevation head is produced by this single-impeller centrifugal pump?
Demanding water distribution tasks are served by the CEAM 70 3V, which provides a maximum dynamic head rating of approximately 22.0 m.
What peak delivery flow and port pipe sizes are designed into this centrifugal unit?
Demanding commercial fluid circuits utilize the CEAM_70_3V, discharging a maximum flow rate of approximately 80 L/Min with Rp 1-1/4" (32 mm) suction and Rp 1" (25 mm) discharge ports.
What construction materials and mechanical seal elastomers prevent fluid corrosion in this pump?
Reliable thermal endurance against corrosion during hot water movement is ensured by alloy metallurgy materials in the CEAM70/3V, featuring AISI 304 stainless steel casing and closed impeller, with high-temperature FPM (Viton) elastomers, rated from -10°C to +110°C.
