SKU: ESHS80-160/185

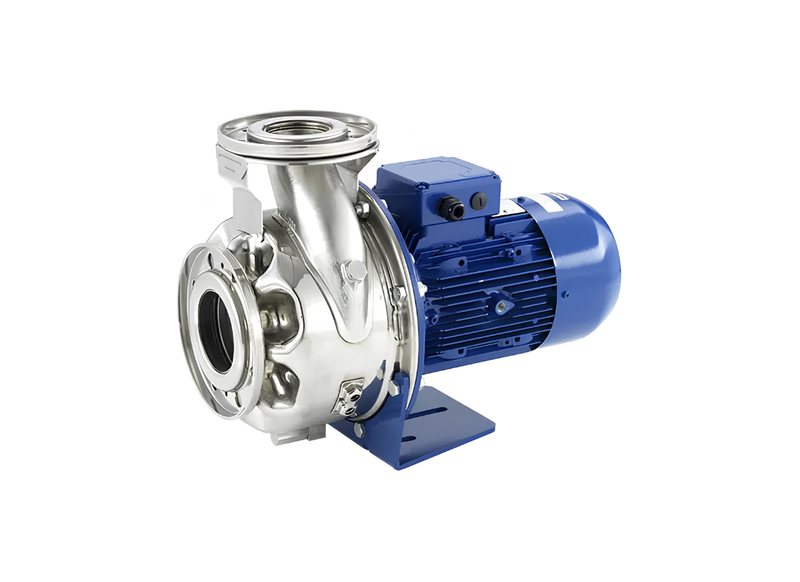

Lowara ESHS80 160/185 Stainless Steel End Suction Centrifugal Pump for Cooling Systems with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Addressing the rigorous requirements of industrial process cooling, this single stage end suction pump delivers targeted liquid management across commercial networks. Facility engineers rely on this unit to handle mildly aggressive fluids and clear water within complex manufacturing environments, ensuring consistent operational temperatures and pressures are met safely.
Technical specifications outline a Max Head scaling to approximately 45.4 m alongside a Max Flow of approximately 3486 L/Min. The electrical architecture demands a 415v three-phase supply, utilizing 32.1 Amps to power the 18.5 kW industrial drive. The physical piping connections consist of a 100 mm flanged intake port and an 80 mm radial discharge port.
Hydraulic momentum is controlled through a precision-engineered single stage centrifugal chamber utilizing an end-suction geometry. The physical framework incorporates a stub shaft adapter bracket, which keys the standard motor extension directly to the enclosed impeller. This rigid mechanical coupling minimizes alignment deviation during extended runtime.
To guarantee longevity, the wetted components are cast from high-grade 1.4408 stainless steel. The internal shaft relies on a standardized Ceramic/Carbon mechanical seal integrated with FKM elastomers to prevent fluid ingress. The motor features an IP55 protection degree, safely tolerating fluid temperatures from -10 °C to +120 °C.
FEATURES
- Single stage end suction layout with horizontal shaft
- Cast stainless steel (1.4408) material specification for superior durability
- Direct stub shaft rigid coupling via a dedicated adapter bracket
- Standardized Ceramic, Carbon, and FKM mechanical seal
- Three-phase 415v compatibility for industrial electrical grids
- Class 155 (F) insulation to safeguard internal motor windings
- Rated for maximum system operating pressures up to 12 bar
SPECIFICATIONS
| Max Flow | 3486 L/Min |
| Max Head | 45.4 m |
| Power | 18.5 kW / 415v |
| Rated Current | 32.1 Amps |
| Suitable For | Industrial Process |
| Body Material | AISI 316 Stainless Steel |
| Liquid Temperature | -10°C to +120°C |
| Inlet Size | 100 mm |
| Outlet Size | 80 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which alloy materials and mechanical face seal specifications ensure corrosion defense in this stainless steel end-suction centrifugal pump?
Specified with resilient metallurgy construction, the ESHS80-160/185 relies on alloy construction of AISI 316 stainless steel pump casing, diffusers, and closed impellers paired with mechanical face seals to withstand liquid corrosion.
What motor power rating in kilowatts and electrical line voltage current draw power this stainless steel end-suction centrifugal pump?
Built by industrial electrical lines, the ESHS80-160-185 features an electric motor rated at 18.5 kW (25.0 HP) powered by 380–415 V, 50 Hz, three-phase with a rating of 32.1 A.
Across industrial water installations, what operating pressure capability in bar and temperature range apply to this stainless steel end-suction centrifugal pump?
Enduring under rigorous operating pressures, the ESHS80 160 185 maintains a maximum working pressure rating of 12 bar (PN 12) across fluid operating temperatures from -10°C to +120°C.
In vertical fluid loops, what maximum dynamic lift head does this stainless steel end-suction centrifugal pump attain?
Circulating across facility piping systems, the ESHS80_160_185 develops a maximum dynamic elevation head of approximately 45.4 m to elevate water.
When discharging across pipeline circuits, what maximum flow volume and port diameter apply to this stainless steel end-suction centrifugal pump?
Releasing across commercial distribution lines, the ESHS80-160/185 provides a peak fluid flow rate of approximately 3486 L/Min connecting via DN 100 suction and DN 80 discharge flanged ports.
