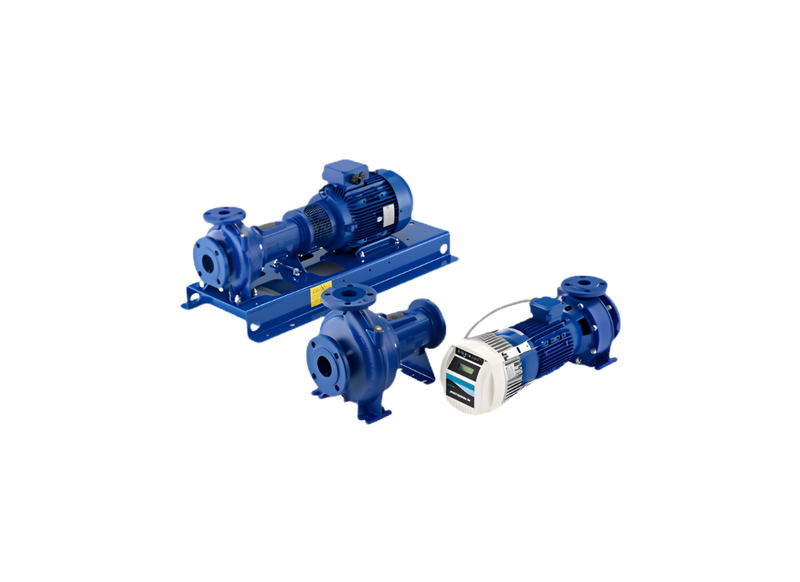

Lowara NSCEM32 125/15 Stainless Steel Rigid Coupled Centrifugal Pump for HVAC Circulation with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
The Lowara NSCEM32-125/15 is specifically constructed for HVAC circulation and rigorous industrial heating environments. Built to facilitate efficient thermal distribution, this unit ensures reliable operational capabilities throughout commercial building service infrastructures.
Operating with a maximum head of approximately 18.0 m and achieving a maximum flow of approximately 474 L/Min, this system is powered by a robust 1.5 kW / 240v motor. The plumbing architecture features a 50 mm inlet alongside a 32 mm outlet to accommodate substantial fluid exchange.
The unit features a highly refined hydraulic path that enables stable circulation even under fluctuating demand. By optimizing the rotational characteristics of the fluid, it delivers dependable suction performance and minimizes mechanical stress on the pumping mechanism.
Built utilizing a heavy-duty Cast Iron casing and a Fabricated Stainless Steel (AISI 316) impeller, it safely manages liquid temperatures reaching up to +120 °C. It features a reliable extended shaft configuration, backed by IP55 motor protection and standard mechanical sealing.
FEATURES
- Heavy-duty extended shaft motor mounting
- Stainless Steel (AISI 316) fluid handling components
- High thermal tolerance up to +120 °C
- IP55 enclosure rating against moisture
- Class 155 (F) motor thermal insulation
- Back pull-out design for simpler maintenance
- Interchangeable mechanical seal arrangement
SPECIFICATIONS
| Max Flow | 474 L/Min |
| Max Head | 18 m |
| Power | 1.5 kW / 240v |
| Rated Current | 7.87 Amps |
| Suitable For | Industrial Process and Water Supply |
| Body Material | AISI 316 Stainless Steel |
| Liquid Temperature | -25°C to +120°C |
| Inlet Size | 50 mm |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Across connected plumbing lines, what peak delivery flow volume and connection sizing apply to this flanged end-suction centrifugal pump?
Discharging across facility piping networks, the NSCEM32-125/15 maintains a maximum delivery flow volume of approximately 474 L/Min across DN 50 suction and DN 32 discharge flanged ports.
Which alloy materials and mechanical seal metallurgy guard against corrosion inside this flanged end-suction centrifugal pump?
Forged with corrosion-resistant alloy materials, the NSCEM32-125-15 incorporates alloy metallurgy of cast iron casing with stainless steel closed impellers and precision mechanical seals to guard against corrosion.
For safe electrical installation, what voltage current requirements and motor power rating apply to this flanged end-suction centrifugal pump?
Powered by facility power panels, the NSCEM32 125 15 utilizes an electric motor rated at 1.5 kW (2.0 HP) operating on 220–240 V, 50 Hz, single-phase drawing 8.1 A.
Under prolonged fluid service, what operating pressure limit and fluid temperature range are supported by this flanged end-suction centrifugal pump?
Operating under demanding fluid temperatures, the NSCEM32_125_15 accommodates a maximum working pressure limit of 16 bar (PN 16) with permissible fluid temperatures from -25°C to +120°C.
How high can this flanged end-suction centrifugal pump elevate water upward across vertical pipework?
Operating across building service lines, the NSCEM32-125/15 achieves a peak dynamic head of approximately 18 m to propel liquid upward.
