SKU: NSCEM40-125/15

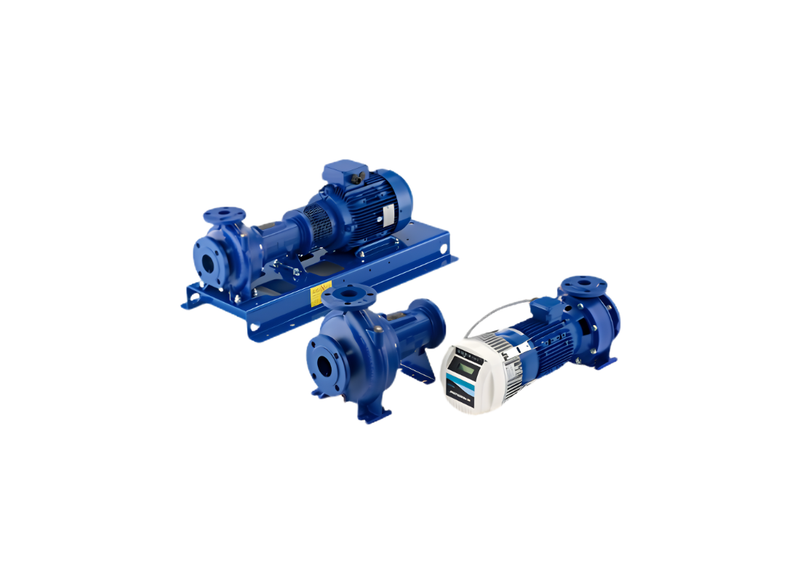

Lowara NSCEM40 125/15 Stainless Steel Close Coupled Centrifugal Pump for Industrial Supply with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Designed for demanding industrial environments water supply demands, the Lowara NSCEM40-125/15 provides exceptional volume transfer across mid-sized building services. It is specifically tailored to support reliable and constant duty fluid distribution networks.
This system leverages a 1.5 kW / 240v single-phase motor to generate a maximum flow of approximately 588 L/Min alongside a maximum head of approximately 14.7 m. Plumbed for larger capacities, it utilizes a 65 mm inlet and a 40 mm outlet for efficient liquid exchange.
A highly refined internal hydraulic setup ensures that high-volume liquid handling remains completely stable. The internal water passage reduces turbulence dramatically, maximizing flow consistency and preserving the integrity of the downstream piping architecture.
Featuring an extended shaft motor configuration, the pump utilizes a rugged Cast Iron body and a Fabricated Stainless Steel (AISI 316) impeller. With its IP55 motor protection and Class 155 (F) insulation, it safely handles fluid temperatures peaking at +120 °C.
FEATURES
- Large capacity 65 mm inlet configuration
- Fabricated AISI 316 Stainless Steel impeller
- Durable Cast Iron outer pump housing
- IP55 rated moisture-protected motor
- Directly coupled extended shaft mechanics
- Engineered for +120 °C thermal capability
- High volumetric efficiency hydraulic design
SPECIFICATIONS
| Max Flow | 588 L/Min |
| Max Head | 14.7 m |
| Power | 1.5 kW / 240v |
| Rated Current | 7.87 Amps |
| Suitable For | HVAC, Industrial Process, Irrigation, Water Supply |
| Body Material | AISI 316 Stainless Steel |
| Liquid Temperature | -25°C to +120°C |
| Inlet Size | 65 mm |
| Outlet Size | 40 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much working pressure in bar and what liquid temperature capabilities are engineered into this flanged end-suction centrifugal pump?
Operating across industrial piping systems, the NSCEM40-125/15 provides a maximum working pressure rating of 16 bar (PN 16) across certified temperatures from -25°C to +120°C.
To what vertical elevation can liquid be propelled by this flanged end-suction centrifugal pump?
Operating through distribution piping lines, the NSCEM40-125-15 maintains a maximum dynamic head of approximately 14.7 m across vertical piping.
What peak fluid flow capacity and discharge port diameter sizing apply to this flanged end-suction centrifugal pump?
Discharging through designated connection lines, the NSCEM40 125 15 outputs a peak liquid flow volume of approximately 588 L/Min through DN 65 suction and DN 40 discharge flanged ports.
What alloy composition and mechanical seal materials resist corrosion across this flanged end-suction centrifugal pump?
Forged for demanding fluid environments, the NSCEM40_125_15 utilizes alloy construction of cast iron casing with stainless steel closed impellers backed by mechanical face seals to prevent fluid corrosion.
What electrical power rating and supply voltage current draw are specified for this flanged end-suction centrifugal pump?
Powered from dedicated power supplies, the NSCEM40-125/15 operates via an electric motor rated at 1.5 kW (2.0 HP) on a supply voltage of 220–240 V, 50 Hz, single-phase at 8.1 A.
