SKU: NSCS32-200/75

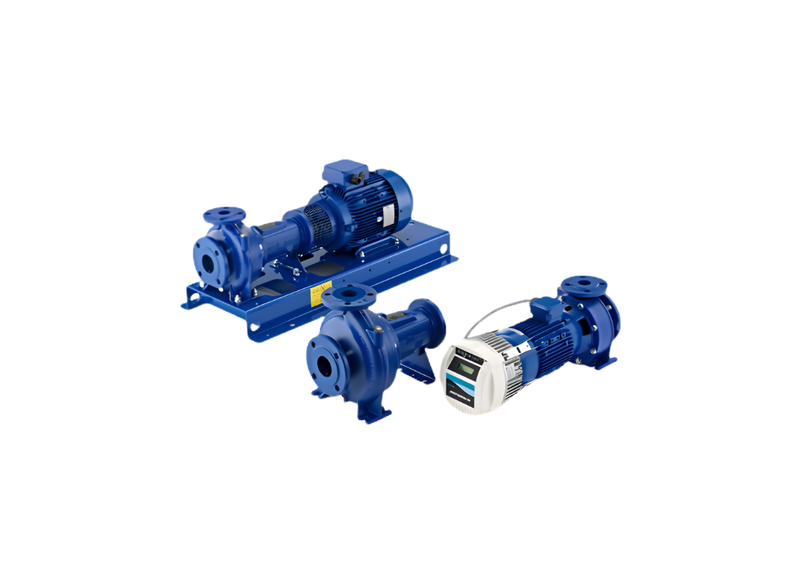

Lowara NSCS32 200/75 Stainless Steel Heavy Duty Centrifugal Pump for Thermal Regulation with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Engineered to sustain high-pressure commercial spray systems, the Lowara NSCS32-200/75 supplies an uninterrupted volume of fluid for critical industrial applications. Its heavy-duty framework guarantees consistent high-velocity output essential for complex distribution networks.
Driven by a potent 7.5 kW / 415v three-phase electrical motor, this system pushes a formidable maximum head of approximately 61.9 m and a maximum flow of approximately 528 L/Min. System integration relies on standardized metric connections, using a 50 mm suction port and a 32 mm discharge port.
Fluid dynamics are tightly regulated by a precision-crafted internal passageway that maximizes volumetric output efficiency. The dynamically balanced impeller directly mitigates flow separation, ensuring a constant and reliable pressure curve even under significant operational resistance.
Mechanically secured with a highly rigid stub shaft mounting arrangement, the unit relies on a resilient Cast Iron body and a Fabricated Stainless Steel (AISI 316) impeller. Protected by an IP55 enclosure, it is rated to safely accommodate thermal liquid extremes reaching +120 °C.
FEATURES
- Heavy-duty rigid stub shaft mounting arrangement
- Corrosion-resistant AISI 316 Stainless Steel impeller
- Robust industrial Cast Iron pump housing exterior
- Standardized high-efficiency three-phase motor setup
- IP55 moisture and dust ingress protection rating
- Rated for extreme +120 °C thermal fluid capabilities
- Simplified back pull-out service access configuration
SPECIFICATIONS
| Max Flow | 528 L/Min |
| Max Head | 61.9 m |
| Power | 7.5 kW / 415v |
| Rated Current | 14.2 Amps |
| Suitable For | Industrial Process and Cooling Systems |
| Body Material | AISI 316 Stainless Steel |
| Liquid Temperature | -25°C to +120°C |
| Inlet Size | 50 mm |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which alloy materials and mechanical seal specifications deliver corrosion resilience in this flanged end-suction centrifugal pump?
Manufactured with corrosion-resistant alloy materials, the NSCS32-200/75 provides alloy metallurgy of cast iron casing with stainless steel closed impellers paired with mechanical seals to protect against corrosion.
Under plant electrical service, what motor kilowatt rating and supply voltage current draw support this flanged end-suction centrifugal pump?
Driven by facility power panels, the NSCS32-200-75 incorporates an electric motor rated at 7.5 kW (10.0 HP) connecting to 380–415 V, 50 Hz, three-phase with current feed of 14.1 / 8.16 A.
For high-pressure water circuits, what maximum working pressure capability and thermal limits apply to this flanged end-suction centrifugal pump?
Certified under demanding fluid temperatures, the NSCS32 200 75 certifies a maximum working pressure rating of 16 bar (PN 16) with allowable fluid temperatures from -25°C to +120°C.
What peak vertical head elevation can this flanged end-suction centrifugal pump generate upward?
Delivering across building service lines, the NSCS32_200_75 provides a peak dynamic lift head of approximately 61.9 m pushing water upward.
In commercial pumping lines, what maximum discharge flow and connection diameters are sustained by this flanged end-suction centrifugal pump?
Transferring across facility piping networks, the NSCS32-200/75 supplies a maximum fluid delivery volume of approximately 528 L/Min through DN 50 suction and DN 32 discharge flanged ports.
