SKU: NSCS32-250/110

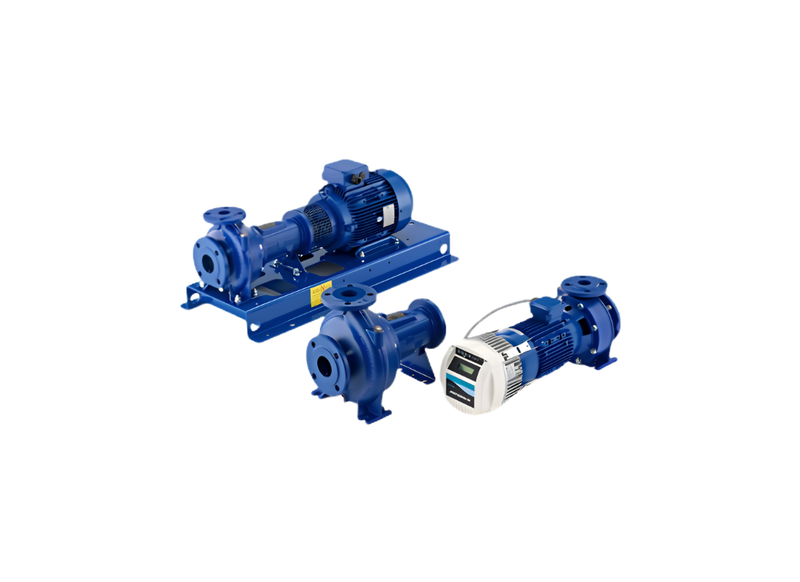

Lowara NSCS32 250/110 Stainless Steel Stub Shaft Centrifugal Pump for Cooling Loops with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Deployed heavily within extensive facility water management systems, the Lowara NSCS32-250/110 efficiently coordinates large-scale fluid movement. This heavy-duty model is designed to withstand the operational rigors of continuous processing plants and commercial sites requiring absolute reliability.
Powered by a substantial 11.0 kW / 415v three-phase motor, this unit manages a maximum flow of approximately 528 L/Min while achieving an impressive maximum head of approximately 73.7 m. Plumbed for industrial integration, the pump relies on a 50 mm suction connection and a 32 mm discharge port.
The unit's hydraulic core is precisely engineered to control high-velocity fluid transfer without inducing destructive vibrations. The perfectly balanced closed impeller geometry actively combats recirculation loss, ensuring that the pressure curve remains consistent against heavy system resistance.
Constructed around a specialized stub shaft motor connection, the pump pairs a thick Cast Iron casing with a Fabricated Stainless Steel (AISI 316) impeller. With an IP55 protection rating and an industrial-grade mechanical seal, it safely handles fluid extremes ranging up to +120 °C.
FEATURES
- High-strength rigid stub shaft coupling configuration
- Premium AISI 316 Stainless Steel fluid handling impeller
- Highly resilient Cast Iron external structural housing
- Powerful continuous duty three-phase electrical motor
- IP55 environmental protection against dust and moisture
- Engineered to safely manage liquid extremes up to +120 °C
- Accessible back pull-out service and maintenance design
SPECIFICATIONS
| Max Flow | 528 L/Min |
| Max Head | 73.7 m |
| Power | 11 kW / 415v |
| Rated Current | 19.2 Amps |
| Suitable For | Cooling Systems / Industrial Process |
| Body Material | AISI 316 Stainless Steel |
| Liquid Temperature | -25°C to +120°C |
| Inlet Size | 50 mm |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What dynamic vertical head and fluid lift capability are sustained by this flanged end-suction centrifugal pump?
Delivering through distribution piping lines, the NSCS32-250/110 produces a maximum dynamic head of approximately 73.7 m to lift fluid upward.
What volumetric flow rating and discharge outlet dimensions are certified for this flanged end-suction centrifugal pump?
Transferring through designated connection lines, the NSCS32-250-110 delivers a peak delivery flow rate of approximately 528 L/Min discharging through DN 50 suction and DN 32 discharge flanged ports.
How does the metallurgy of the casing and mechanical seal prevent corrosive chemical attack in this flanged end-suction centrifugal pump?
Manufactured for demanding fluid environments, the NSCS32 250 110 features alloy construction of cast iron casing with stainless steel closed impellers with mechanical face seals to resist corrosion and chemical attack.
How much electrical motor power in kilowatts and what operating voltage current draw apply to this flanged end-suction centrifugal pump?
Driven from dedicated power supplies, the NSCS32_250_110 is powered by an electric motor rated at 11 kW (15.0 HP) running on 380–415 V, 50 Hz, three-phase with a current draw of 19.6 / 11.3 A.
Regarding thermal capabilities, what permissible liquid temperature range and working pressure apply to this flanged end-suction centrifugal pump?
Certified across industrial piping systems, the NSCS32-250/110 sustains a maximum working pressure capability of 16 bar (PN 16) across liquid operating temperatures from -25°C to +120°C.
