SKU: NSCS80-160/150

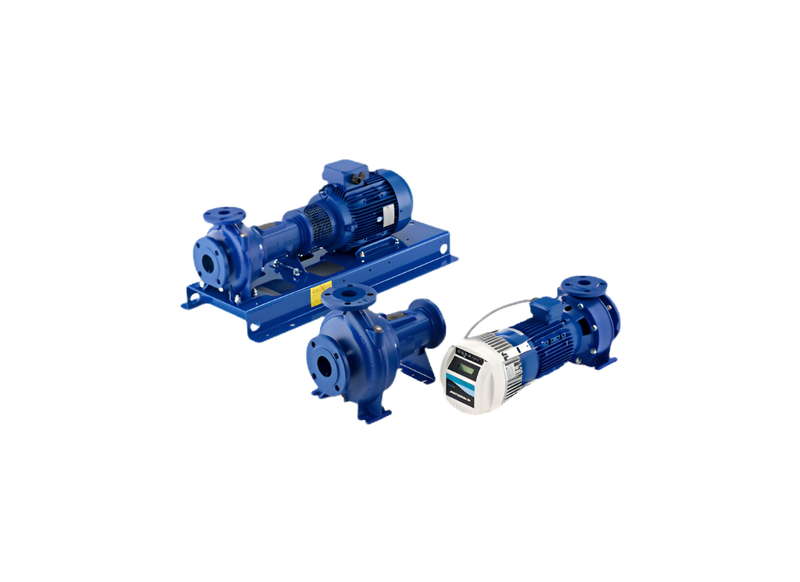

Lowara NSCS80 160/150 Cast Iron Stub Shaft Centrifugal Pump for Liquid Transfer with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Industrial facilities require continuous high-capacity liquid transfer to support centralized water supply operations. The Lowara NSCS80-160/150 end-suction centrifugal pump is designed to integrate into commercial plumbing systems, providing steady hydraulic distribution across large-scale networks.
Operating on a 415v three-phase supply, this unit features a 15 kW motor that draws a rated current of 26.1 Amps. It achieves a maximum head of approximately 32.4 m and delivers a peak flow capacity of 3930 L/Min. Installation is supported by standardized 100 mm suction and 80 mm discharge flanged connections.
The internal hydraulic design utilizes a closed impeller to regulate fluid acceleration and minimize intake turbulence. This configuration helps establish a predictable circulation rhythm, making it suitable for multi-branch plumbing arrays that demand stable pressure.
Wetted components are manufactured from cast iron, allowing the pump to process liquid temperatures ranging from -25°C to +120°C. The exterior chassis includes a sealed electrical enclosure and mechanical seal arrangements that protect the central rotating shaft from ambient moisture.
FEATURES
- Rigid close-coupled stub shaft mounting supports proper mechanical alignment under standard operational loads
- Back pull-out volute design allows internal component inspection without disconnecting adjacent pipework
- TEFC motor enclosure shields internal stator windings from ambient dust ingress
- Replaceable wear rings protect the primary hydraulic chamber from abrasive particulate damage
- Pre-drilled base supports enable vibration-minimizing anchoring to concrete foundational pads
- Galvanized carbon steel hardware secures the main casing to maintain structural stability
- Optimized discharge geometry limits internal friction to support overall mechanical efficiency
SPECIFICATIONS
| Max Flow | 3930 L/Min |
| Max Head | 32.4 m |
| Power | 15 kW / 415v |
| Rated Current | 26.1 Amps |
| Suitable For | Cooling Systems |
| Body Material | Cast Iron |
| Liquid Temperature | -25°C to +120°C |
| Inlet Size | 100 mm |
| Outlet Size | 80 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Across commercial piping installations, what maximum working pressure rating and temperature range apply to this flanged end-suction centrifugal pump?
Approved across facility pressure circuits, the NSCS80-160/150 delivers a maximum working pressure capability of 16 bar (PN 16) across fluid temperatures from -25°C to +120°C.
Across vertical distribution risers, what maximum dynamic lift head is developed by this flanged end-suction centrifugal pump?
Driving through plant water circuits, the NSCS80-160-150 sustains a peak dynamic head of approximately 32.4 m to propel clean liquid upward.
What maximum flow volume and connection port diameters are sustained across this flanged end-suction centrifugal pump?
Routing through system pipework runs, the NSCS80 160 150 maintains a maximum discharge flow rate of approximately 3930 L/Min utilizing DN 100 suction and DN 80 discharge flanged ports.
How do the alloy metallurgy components and mechanical seals defend this flanged end-suction centrifugal pump against chemical attack?
Equipped for harsh corrosive applications, the NSCS80_160_150 ensures alloy metallurgy protection with cast iron casing with stainless steel closed impellers and precision mechanical face seals against corrosion.
In commercial power systems, what motor power in kilowatts and operating voltage current draw run this flanged end-suction centrifugal pump?
Running from facility electrical circuits, the NSCS80-160/150 runs on an electric motor rated at 15 kW (20.0 HP) supplied by 380–415 V, 50 Hz, three-phase at a current of 26.1 A.
