SKU: NSCS80-160/185

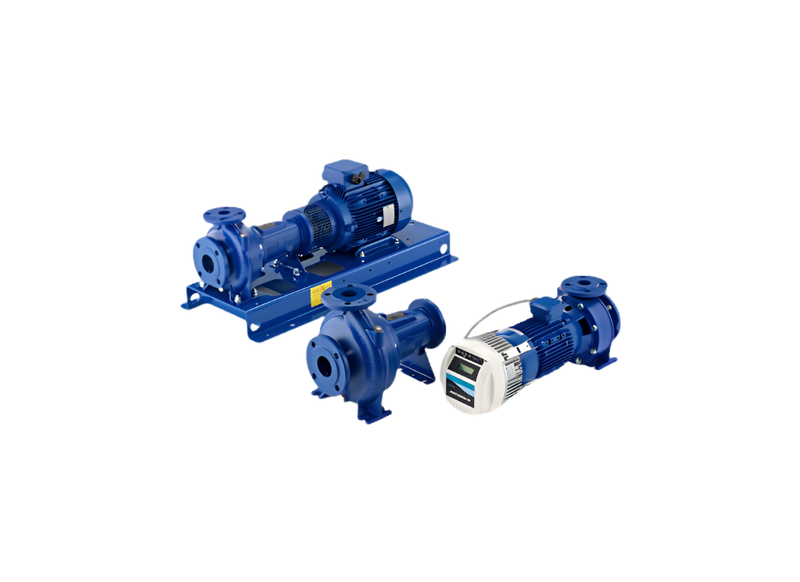

Lowara NSCS80 160/185 Cast Iron High Capacity Centrifugal Pump for Process Water with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Industrial process cooling systems require stable liquid circulation to regulate manufacturing equipment temperatures. The Lowara NSCS80-160/185 end-suction unit acts as a mechanical driver for thermal exchange circuits, providing consistent fluid delivery for commercial layouts.
Delivery output features a maximum head rating of approximately 37.2 m and a volume output reaching 3930 L/Min. Powered by a 415v three-phase electrical framework, the 18.5 kW motor registers 32.7 Amps during standard operation. Plumbing connectivity utilizes a 100 mm suction flange paired with an 80 mm discharge flange.
The internal pathways are shaped to restrict intake cavitation and promote smooth pressurized distribution. By managing directional water momentum, the pump produces a predictable flow velocity that supports industrial layouts without experiencing disruptive energy losses.
Constructed from cast iron, the wetted elements tolerate operational fluid temperatures ranging between -25°C and +120°C. The exterior incorporates thermal insulation materials and structural bracing to maintain electrical safety over extended continuous lifespans.
FEATURES
- Close-coupled motor adapter bracket removes the need for complex field alignment procedures during installation
- Innovative back pull-out assembly isolates the rotating elements for rapid technical inspection
- Thickened volute geometry safely absorbs the hydraulic shock common in centralized plumbing grids
- Industrial-grade insulation protects the internal stator windings against operational heat generation
- Interchangeable mechanical seal arrangement accommodates varied industrial fluids for widespread facility versatility
- DN100 and DN80 standardized bolting flanges simplify the attachment of expansive commercial pipework
- Cast iron drive bracket supplies structural rigidity for the attached high-voltage assembly
SPECIFICATIONS
| Max Flow | 3930 L/Min |
| Max Head | 37.2 m |
| Power | 18.5 kW / 415v |
| Rated Current | 32.7 Amps |
| Suitable For | Process Water |
| Body Material | Cast Iron |
| Liquid Temperature | -25°C to +120°C |
| Inlet Size | 100 mm |
| Outlet Size | 80 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What dynamic elevation push is generated upward by this flanged end-suction centrifugal pump?
Driving in multi-story elevation loops, the NSCS80-160/185 produces a maximum dynamic head of approximately 37.2 m to lift fluid upward.
Across distribution piping systems, what peak flow rate and outlet connection sizing apply to this flanged end-suction centrifugal pump?
Routing into building service circuits, the NSCS80-160-185 delivers a peak delivery flow rate of approximately 3930 L/Min discharging through DN 100 suction and DN 80 discharge flanged ports.
Regarding corrosion protection, what alloy materials and mechanical face seals are featured on this flanged end-suction centrifugal pump?
Equipped against fluid chemical attack, the NSCS80 160 185 features alloy construction of cast iron casing with stainless steel closed impellers with mechanical face seals to resist corrosion and chemical attack.
What electrical supply voltage and motor power kilowatt rating are certified on this flanged end-suction centrifugal pump?
Running under nominal voltage supply, the NSCS80_160_185 is powered by an electric motor rated at 18.5 kW (25.0 HP) running on 380–415 V, 50 Hz, three-phase with a current draw of 32.70 A.
Under demanding hydraulic conditions, what operating pressure limit in bar and fluid temperature are sustained by this flanged end-suction centrifugal pump?
Approved within approved operating limits, the NSCS80-160/185 sustains a maximum working pressure capability of 16 bar (PN 16) across liquid operating temperatures from -25°C to +120°C.
