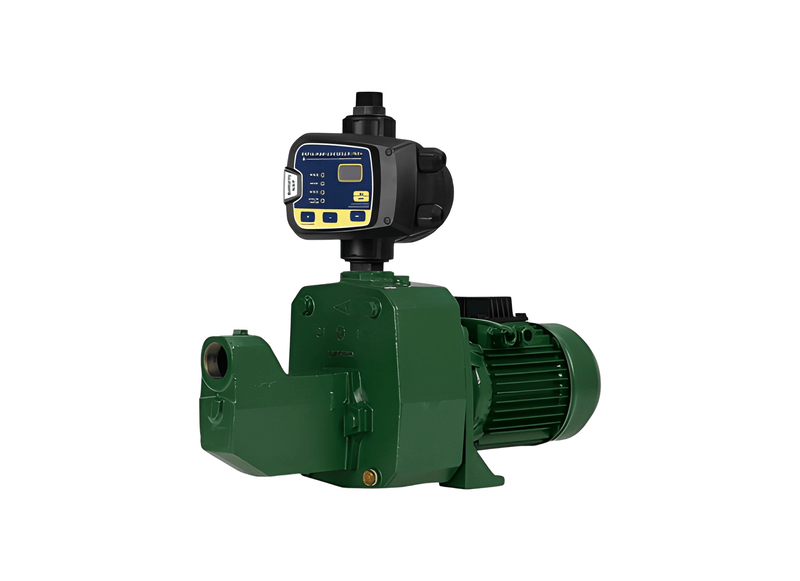

DAB 151PRO Cast Iron nXt PRO Self-Priming Jet Pressure Pump with Glass Reinforced Twin Impeller
Australia-Wide
(08) 9240 2992
Official DAB
Peace of Mind
Product Overview
The DAB 151PRO is a rugged surface-mounted self-priming jet pressure pump designed for pressure boosting, irrigation, and water transfer applications. It is particularly suited for installations requiring water lifting from tanks, rivers, and dams, delivering reliable suction performance even in the presence of air bubbles or light sandy impurities.
This pump is widely used in domestic water supply systems, horticulture, and small-scale agricultural applications, as well as light industrial services. Its twin impeller design enhances pressure capability, making it suitable for systems requiring higher head performance and stable water delivery.
Constructed with a GJL 200 cast iron pump body, the unit provides high mechanical strength and durability. The hydraulic components including the impeller, jet, venturi, and diffuser are manufactured from glass reinforced Noryl, ensuring efficient flow performance and resistance to wear. A carbon ceramic nitrile mechanical seal and nitrile O-rings provide reliable sealing and long service life.
This model delivers a maximum head of 75 metres and a maximum flow rate of 75 L/Min. The integrated jet and venturi system enables suction capability of up to 8 metres under optimal conditions, ensuring efficient self-priming performance.
Powered by a 1.1 kW single-phase motor operating on 240V, the pump features a TEFC motor design with in-built auto-reset thermal overload protection. It operates at 2800 RPM and is rated to IP44, ensuring safe and reliable operation. The nXt PRO dual mode controller enables automatic start and stop operation, incorporates a check valve, and provides dry run protection for system safety.
The pump supports a fluid temperature range from 0°C to 35°C and operates at a maximum pressure of 8 bar. It is approved for drinking water applications as per AS/NZ 4020 certification, making it suitable for potable water systems.
FEATURES- Twin impeller design for enhanced pressure performance
- Maximum flow rate of 75 L/Min and maximum head of 75 m
- nXt PRO controller with automatic operation and dry run protection
- Built-in check valve for improved system efficiency
- Self-priming capability with suction up to 8 metres
- Cast iron pump body (GJL 200) for strength and durability
- Glass reinforced Noryl impeller, jet, venturi, and diffuser
- Carbon ceramic nitrile mechanical seal for reliable sealing
- TEFC motor with auto-reset thermal overload protection
- IP44 protection rating with 2800 RPM motor operation
- Approved for drinking water (AS/NZ 4020)
- Suitable for clean water with light sandy impurities
SPECIFICATIONS
| Max Flow | 75 L/Min |
| Max Head | 75 m |
| Power | 1.1 kW / 240v |
| Rated Current | 7.2 Amps |
| Suitable For | High Pressure Supply |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 35°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does the hydraulic design support higher pressure applications?
Higher pressure delivery is supported by a twin-impeller design and DAB 151PRO reaches a maximum head of 75 m for suitable applications.
Which automatic controls are included for safer pump operation?
System control includes automatic start and stop a check valve and dry-run protection through the nXt PRO controller on DAB-151PRO.
What maximum suction lift is available for water transfer?
Water can be drawn from a suction lift up to 8 metres under optimal conditions and DAB/151PRO is intended for irrigation and pressure boosting.
Which motor and enclosure details should installers check?
Installers should note the 1.1 kW single-phase TEFC motor at 2800 RPM while DAB_151PRO provides IP44 protection and thermal overload protection.
What certification supports use in potable water systems?
AS/NZ 4020 approval supports drinking-water applications and DAB 151 PRO has a separate maximum flow rate of up to 75 L/Min.
