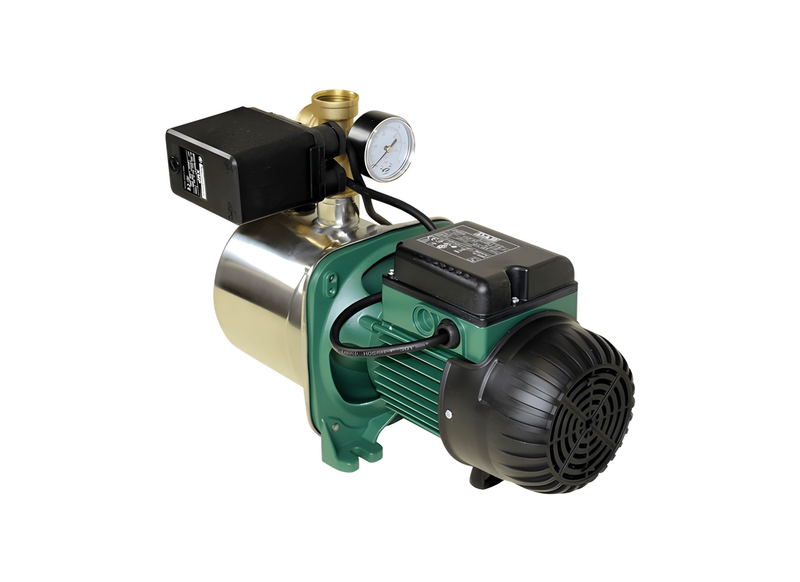

DAB JINOX132MP Stainless Steel Self-Priming Jet Pressure Pump with Pressure Switch Technopolymer Impeller
Australia-Wide
(08) 9240 2992
Official DAB
Peace of Mind
Product Overview
The DAB JINOX132MP is a surface-mounted self-priming stainless steel jet pressure pump designed for irrigation, water transfer, and pressure boosting applications where reliable suction performance is required. It provides excellent suction capability even in the presence of air bubbles and is suitable for pumping clean water with low levels of sandy impurities.
Equipped with an integrated pressure switch, the pump delivers automatic start and stop operation, ensuring consistent pressure and efficient system performance. It is well suited for residential installations, small farms, and light-duty service applications.
Constructed with a stainless steel pump body, seal holder cover, and wear ring, the pump offers strong corrosion resistance and durability. The motor support is made from die-cast aluminium, while the impeller, diffuser, and venturi tube are manufactured from technopolymer for efficient hydraulic performance. A carbon/ceramic mechanical seal ensures reliable sealing and long service life.
This model delivers a maximum head of 48 metres and a maximum flow rate of 80 L/Min, supporting stable pressure and efficient water movement. The self-priming design allows suction up to 8 metres under optimal conditions.
Powered by a 1 kW single-phase motor operating on 240V, the pump features built-in thermo-amperometric protection and a permanently engaged capacitor for safe and reliable operation. It is designed for horizontal installation and supports liquid temperatures up to 35°C for domestic use.
FEATURES- Integrated pressure switch for automatic pump control
- Excellent self-priming capability even with air in suction line
- Suitable for water with low levels of sandy impurities
- Stainless steel pump body, seal holder, and wear ring
- Die-cast aluminium motor support for structural strength
- Technopolymer impeller, diffuser, and venturi system
- Carbon/ceramic mechanical seal for extended durability
- Thermo-amperometric motor protection for safe operation
- Low-noise operation with greased-for-life ball bearings
- Designed for horizontal installation
- Suitable for clean, non-aggressive and non-viscous liquids
SPECIFICATIONS
| Max Flow | 80 L/Min |
| Max Head | 48 m |
| Power | 1 kW / 240v |
| Rated Current | 6.6 Amps |
| Suitable For | Garden Irrigation |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which control feature automates starting and stopping the pump?
Automatic start and stop are managed by an integrated pressure switch and DAB JINOX132MP supports irrigation with flow up to 80 L/Min.
What suction capability helps draw water from tanks or wells?
Self-priming suction reaches up to 8 m under optimal conditions and DAB-JINOX132MP is designed for clean water with low sandy impurities.
Which components use stainless steel construction for corrosion resistance?
Stainless steel forms the pump body seal holder cover and wear ring while DAB/JINOX132MP uses technopolymer hydraulic components for efficient operation.
What installation orientation is required for this pressure pump?
Horizontal installation is required and DAB_JINOX132MP supports liquid temperatures up to 35°C for domestic water supply and small farms installations.
What motor protection is included for domestic water applications?
Thermo-amperometric protection safeguards the 1 kW single-phase motor operating on 240V and JINOX132MP (DAB JINOX132MP) develops a separate maximum head of 48 m.
