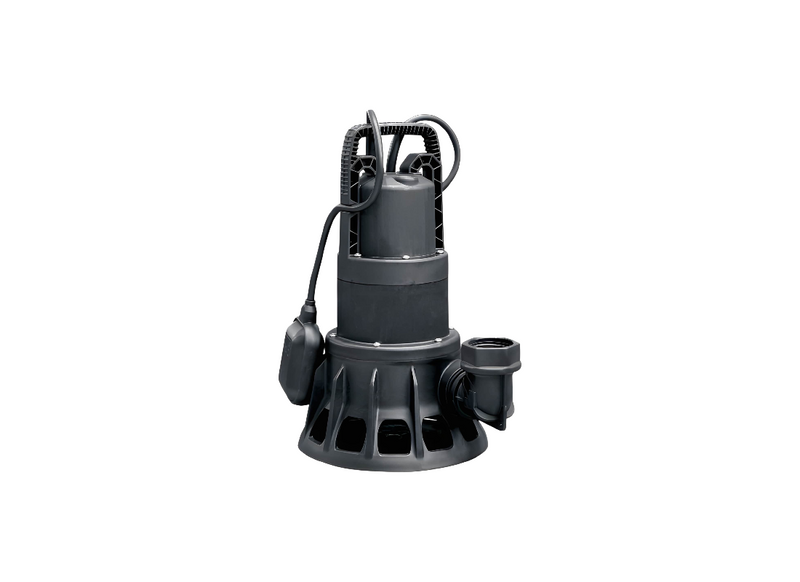

DAB BVP750MA Technopolymer 38mm Solids Handling Dirty Water Pump for Floodwater Drainage with Float Switch
Australia-Wide
(08) 9240 2992
Official DAB
Peace of Mind
Product Overview
Removing dirty water from flooded areas, collection pits and domestic drainage systems is efficiently managed by the DAB-BVP750MA submersible pump. Designed for automatic operation through an integrated float switch, this unit is suitable for both fixed installations and portable emergency applications. Its compact construction allows it to be deployed in residential and light commercial environments where dependable dirty water removal is required to protect property from water accumulation.
Hydraulic performance is delivered by a 0.75 kW single-phase motor operating on a 240v supply with a rated current of 5.6 Amps. The pump achieves a maximum flow rate of 390 L/Min and develops a maximum head of 11.8 m, providing the capacity required for transferring dirty water from pits, tanks and flooded structures. Automatic level control ensures efficient operation without constant supervision while maintaining stable performance during extended drainage cycles.
Liquid handling capability is supported by a hydraulic system designed for dirty water containing suspended solids. The pump accommodates particles up to 38 mm in size, allowing debris-laden water to pass through with reduced risk of obstruction. This capability makes the unit suitable for demanding drainage tasks where sediment and suspended material are present within the pumped liquid.
Construction utilizes corrosion-resistant technopolymer components that provide durability while keeping overall weight manageable for installation and handling. The sealed motor assembly is designed for submerged operation, while integrated protection systems help maintain long-term reliability in challenging drainage environments. A standard 1½" BSPF discharge connection allows straightforward integration into common drainage pipework systems.
Features
- Automatic float switch operation responds to changing water levels without manual intervention.
- Handles suspended solids up to 38 mm for efficient dirty water transfer.
- 0.75 kW single-phase motor delivers reliable performance for residential and light commercial drainage.
- Maximum flow rate of 390 L/Min supports rapid removal of accumulated water.
- Maximum head of 11.8 m provides effective lifting capability from deep pits and tanks.
- Corrosion-resistant technopolymer construction offers durability in submerged service.
- Standard 1½" BSPF outlet allows easy connection to drainage systems.
- Suitable for fixed installations or portable emergency dewatering applications.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What particle size can pass through the dirty-water hydraulic system?
The pump handles suspended solids up to 38 mm and DAB BVP750MA uses corrosion-resistant technopolymer components for submerged dirty-water service.
What maximum head supports drainage from pits and tanks?
A maximum head of 11.8 m supports lifting from pits and DAB-BVP750MA uses an integrated float switch for automatic level control.
What flow capacity helps remove accumulated dirty water?
The pump moves up to 390 L/Min and DAB/BVP750MA supports dirty-water removal from flooded areas and domestic drainage systems during emergency dewatering.
Which motor power and electrical supply operate the pump?
A 0.75 kW single-phase motor operates on 240V and DAB_BVP750MA draws a rated current of 5.6 Amps for dirty-water drainage.
Which installation options suit emergency dewatering requirements?
Fixed or portable installation supports emergency dewatering and DAB BVP750MA connects through a standard 1½-inch BSPF discharge outlet for drainage pipework.
