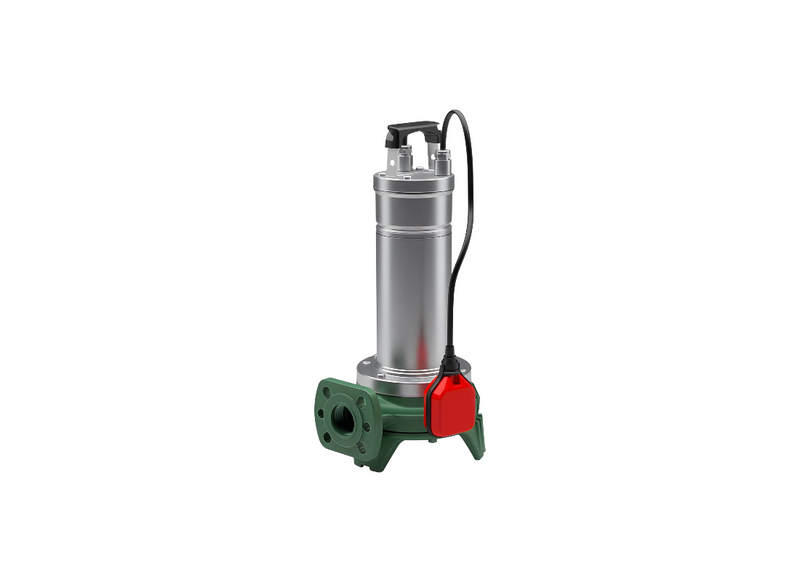

DAB FEKAVS-GRINDER A Cast Iron Auto Submersible Wastewater Pump for Grey Water Pumping with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official DAB
Peace of Mind
Product Overview
The DAB FEKA VS GRINDER A is a submersible pump with shredder for sewage, certified to EN 12050-1 for lifting systems handling wastewater containing faecal matter in buildings. This automatic version incorporates an integrated float switch, managing fluid transfer in commercial building service and grey water pumping networks.
Performance relies on a dry asynchronous and waterproof motor cooled directly by the pumped liquid. Operating on a single-phase 240v electrical supply, the 1.0 kW system achieves a max flow rate of 240 L/Min and vertical head up to 25 m. The unit draws a rated current of 6.4 Amps during continuous draining cycles.
The unit is constructed with a cast iron pump body and base casting, producing a net weight of 23 kg for stable submerged positioning. The main hydraulic chamber houses a vortex impeller cast from iron, working in tandem with a grinding system manufactured from AISI 630 stainless steel to process solid matter before expulsion through the 40 mm outlet. The motor is Class F insulated with IP68 protection.
Fluid containment utilizes a double mechanical seal arrangement with an interposed non-toxic oil chamber. The motor side uses carbon-alumina materials, while the pump side utilizes silicon carbide to prevent liquid bypass into the stainless steel motor casing. This assembly supports installations reliant on small diameter pipes requiring high pressures, with a maximum immersion depth of 7 meters.
Features
- Unit net weight is 23 kg to support fixed positioning
- Suitable for fixed installations with coupling device or mobile installation on tank bottom
- Thermal-overload protection integrated for single-phase configuration
- Insulated rubber covered handle for safe manual positioning
- Internal rotor on greased-for-life ball bearings for low noise operation
- Liquid temperature range: 0°C to +40°C for domestic use
- Supplied with 10m H07RN8-F power cable with IP68 protection
- EN 12050-1 certified for wastewater containing faecal matter
SPECIFICATIONS
| Max Flow | 240 L/Min |
| Max Head | 25 m |
| Power | 1 kW / 240v |
| Rated Current | 6.4 Amps |
| Suitable For | Commercial Wastewater Draining |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which electrical configuration powers the automatic sewage grinder?
Motor cooling depends on pumped liquid because DAB FEKAVS-GRINDER A uses a waterproof motor and a single-phase 240V supply for its 1.0 kW drive.
How much wastewater can the pump move at maximum flow?
Maximum flow reaches up to 240 L/Min. DAB-FEKAVS-GRINDER-A has a separate maximum vertical head of 25 m for elevated discharge.
What materials form the grinding system and vortex impeller?
An iron vortex impeller works alongside an AISI 630 stainless steel grinding system in DAB/FEKAVS/GRINDER/A to process solid matter before discharge.
What is the maximum depth for submerged installation?
Submerged placement can reach a maximum immersion depth of 7 metres and DAB_FEKAVS_GRINDER_A has IP68 protection for the motor assembly.
Which certification applies to sewage containing faecal matter?
EN 12050-1 certification covers wastewater containing faecal matter and the DAB FEKAVS GRINDER A includes a 10 m H07RN8-F power cable.
