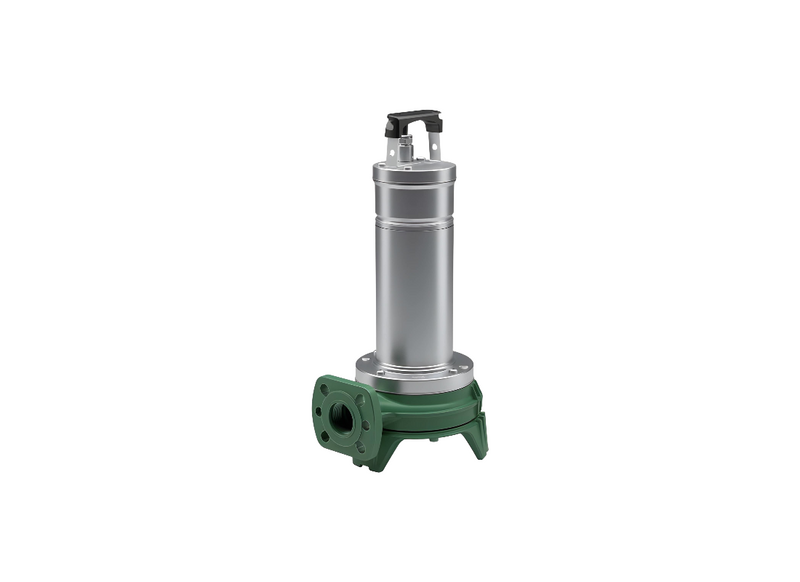

DAB FEKAVS-GRINDER M Cast Iron Manual Submersible Wastewater Pump for Septic Effluent with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official DAB
Peace of Mind
Product Overview
The DAB FEKA VS GRINDER M is a manual submersible pump with shredder for sewage, certified to EN 12050-1 for lifting systems handling wastewater containing faecal matter. This non-automated variant operates without a float switch, configured for construction sites and septic effluent disposal setups.
Performance relies on a dry asynchronous and waterproof motor cooled directly by the pumped liquid. Operating on a single-phase 240v electrical supply, the 1.0 kW system achieves a max flow rate of 240 L/Min and vertical head up to 25 m. The unit draws a rated current of 6.2 Amps during continuous draining cycles.
The structural foundation utilizes a cast iron pump body and base, ensuring the complete assembly maintains a net weight of 23 kg. A stainless steel motor casing protects internal components, while a vortex impeller cast from iron handles continuous grey water pumping tasks. The internal grinding system is made of AISI 630 stainless steel. The motor is Class F insulated with IP68 protection.
To prevent fluid intrusion during extended submersion, the design implements a double mechanical seal utilizing an interposed non-toxic oil chamber. Silicon carbide is deployed on the pump side working alongside carbon-alumina on the motor side. The processed wastewater is discharged through a standard 40 mm outlet, with a maximum immersion depth of 7 meters.
Features
- Unit net weight is 23 kg to ensure stability during fluid processing
- Supports fixed installations with coupling base or mobile deployment on tank bottom
- Thermal-overload protection integrated standard for single-phase operation
- Durable handle covered in insulating rubber for secure handling
- Asynchronous rotor on oversized ball bearings for long-term durability
- Liquid temperature handling: 0°C to +40°C for domestic use
- 10m H07RN8-F supply cable with IP68 protection rating
- EN 12050-1 certified for wastewater containing faecal matter
SPECIFICATIONS
| Max Flow | 240 L/Min |
| Max Head | 25 m |
| Power | 1 kW / 240v |
| Rated Current | 6.2 Amps |
| Suitable For | Commercial Wastewater Draining |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What flow capacity is available for sewage pumping and grinding?
Sewage handling supports flow rates up to 240 L/Min and DAB FEKAVS-GRINDER M is designed for wastewater containing faecal matter.
Which electrical supply and motor rating does this version require?
A 240V single-phase supply powers the 1.0 kW motor drawing 6.2 A and DAB-FEKAVS-GRINDER-M includes built-in thermal-overload protection during operation.
What vertical head limit applies during pumping operation?
The vertical head reaches 25 m and DAB/FEKAVS/GRINDER/M is rated for this separate limit for use in submersible sewage pumping systems.
Which discharge connection and immersion limit support installation planning?
Installation uses a 40 mm discharge outlet and permits immersion to 7 m so DAB_FEKAVS_GRINDER_M can be positioned within these limits.
What built-in electrical protection is included for single-phase operation?
Built-in thermal-overload protection supports single-phase operation and DAB FEKAVS GRINDER M also has IP68 protection and Class F motor insulation.
