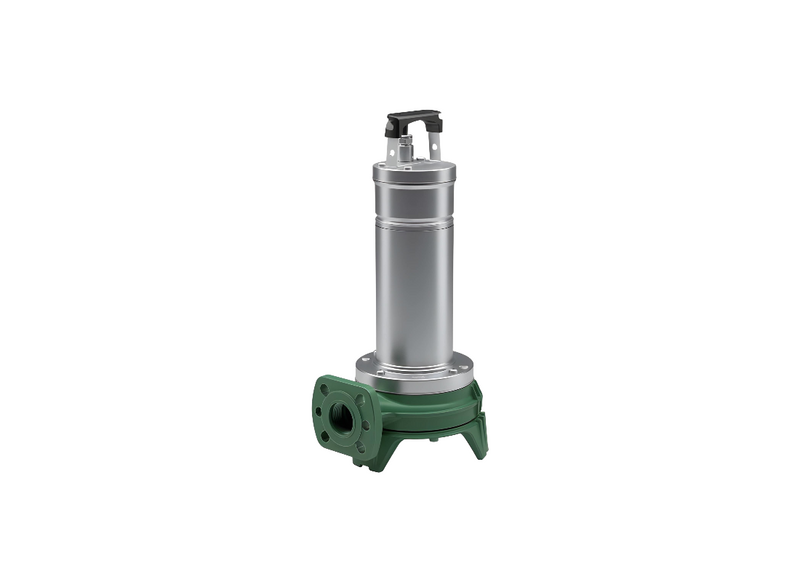

DAB FEKAVS-GRINDER T Cast Iron Three-Phase Submersible Wastewater Pump for Infrastructure with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official DAB
Peace of Mind
Product Overview
The DAB FEKA VS GRINDER T is a three-phase submersible pump with shredder for sewage, certified to EN 12050-1 for lifting systems handling wastewater containing faecal matter. This manual pump operates without a float switch, providing controlled fluid management for commercial building service and infrastructure wastewater draining.
Performance relies on a dry asynchronous and waterproof motor cooled directly by the pumped liquid. Powered by a three-phase 415v electrical framework, the 1.0 kW motor assembly draws 3 Amps of rated current. This configuration allows the pump to reach a 240 L/Min maximum flow and a 25 m maximum head.
Fluid containment is managed via a double mechanical seal setup utilizing an interposed non-toxic oil chamber. The system deploys carbon-alumina on the motor side and silicon carbide on the pump side to protect the electrical sections. A stainless steel casing securely houses the motor to resist external degradation. The motor is Class F insulated with IP68 protection.
Physical processing relies on an AISI 630 stainless steel shredding system that breaks down solids before they encounter the cast iron vortex impeller. The primary pump body and base are manufactured from cast iron, creating a total net weight of 23 kg. Processed fluids are expelled through the 40 mm outlet, with a maximum immersion depth of 7 meters.
Features
- Unit net weight is 23 kg for secure installation positioning
- Suitable for fixed installations with coupling device or mobile deployment in tank
- Three-phase version includes thermal protection connectable to control panel
- Stainless steel handle covered in insulating rubber for safe manual extraction
- Internal rotor on greased-for-life ball bearings to minimize acoustic output
- Liquid temperature range: 0°C to +40°C in standard conditions
- AISI 316 stainless steel motor shaft with IP68 motor protection
- EN 12050-1 certified for wastewater containing faecal matter
SPECIFICATIONS
| Max Flow | 240 L/Min |
| Max Head | 25 m |
| Power | 1 kW / 415v |
| Rated Current | 3 Amps |
| Suitable For | Septic Effluent Disposal |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Documents
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How is the three-phase motor powered and protected during operation?
The 415V three-phase supply powers a 1.0 kW motor drawing 3 A and DAB-FEKAVS-GRINDER-T has Class F insulation and IP68 protection.
What maximum head can the sewage grinder pump reach?
The pump reaches a maximum head of 25 m and DAB/FEKAVS/GRINDER/T uses a cast iron vortex impeller for wastewater handling.
Which installation arrangements are supported for this submersible unit?
Fixed installation uses a coupling device or the unit can operate in a tank and DAB_FEKAVS_GRINDER_T has a 40 mm outlet.
What certification covers wastewater containing faecal matter?
EN 12050-1 certification covers wastewater containing faecal matter and DAB FEKAVS GRINDER T uses an AISI 630 stainless steel shredder.
What flow capacity is available for wastewater pumping and grinding?
Wastewater pumping supports flow rates up to 240 L/Min and DAB FEKAVS-GRINDER T is designed for sewage containing faecal matter.
