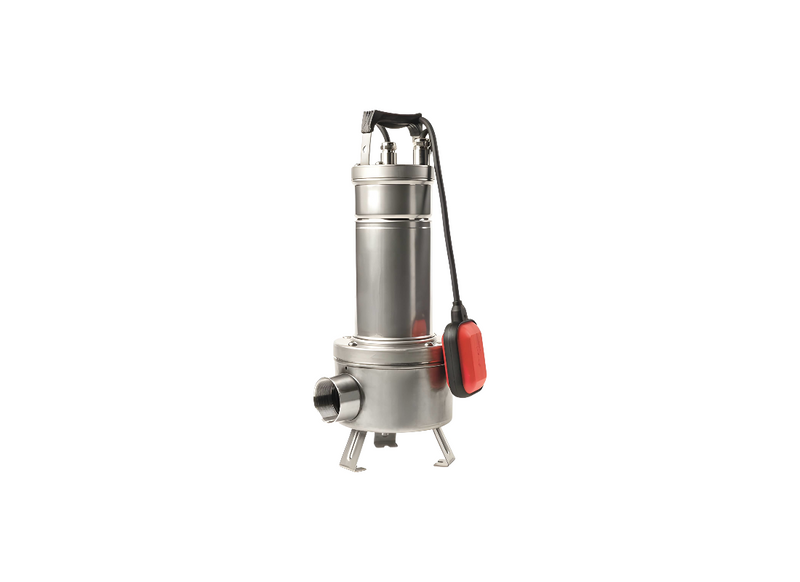

DAB FEKAVS1200MA Stainless Steel High Flow Wastewater Pump for Collection Pit Drainage with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official DAB
Peace of Mind
Product Overview
High-capacity wastewater transfer duties are efficiently managed by the DAB-FEKAVS1200MA submersible wastewater pump. Featuring automatic operation through an integrated float switch, this model is intended for drainage systems, collection pits and wastewater handling applications where dependable liquid level control is essential. Its design supports both residential and commercial environments requiring robust wastewater removal performance.
Performance is driven by a 1.2 kW single-phase motor operating on a 240v supply with a rated current of 8.63 Amps. The pump achieves a maximum flow rate of 533 L/Min and develops a maximum head of 14 m, providing substantial hydraulic capacity for demanding transfer applications. Automatic operation allows the system to respond to changing liquid levels while maintaining efficient performance throughout the drainage cycle.
The hydraulic assembly incorporates a stainless steel vortex impeller designed for wastewater containing suspended solids. With a solids handling capability of up to 50 mm, the pump allows larger particles to pass through the hydraulic passage without restricting operation. This design supports dependable wastewater transfer while minimizing the likelihood of clogging in challenging service conditions.
Constructed with a stainless steel AISI 304 pump body, the unit provides excellent resistance to corrosion and wear in submerged environments. The integrated float switch ensures fully automatic operation, while the robust construction supports long-term reliability in wastewater systems. A 2" BSPF discharge outlet allows easy connection to standard drainage and transfer pipework.
Features
- Automatic float switch enables hands-free operation in changing liquid level conditions.
- Stainless steel vortex impeller facilitates reliable wastewater transfer with reduced clogging risk.
- 50 mm solids handling capability supports wastewater containing suspended debris.
- Maximum flow rate of 533 L/Min provides high-capacity drainage performance.
- Maximum head of 14 m delivers strong lifting capability for demanding applications.
- Stainless steel AISI 304 pump body offers corrosion resistance and long service life.
- 2" BSPF discharge outlet supports straightforward installation into drainage infrastructure.
- Suitable for wastewater and rainwater transfer in residential and commercial environments.
SPECIFICATIONS
| Max Flow | 533 L/Min |
| Max Head | 14 m |
| Power | 1.2 kW / 240v |
| Rated Current | 8.63 Amps |
| Suitable For | Wastewater Transfer |
| Body Material | Stainless Steel AISI 304 |
| Liquid Temperature | Maximum 50°C |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which discharge connection size supports standard drainage pipework?
A 2-inch BSPF outlet connects to standard drainage pipework and DAB FEKAVS1200MA suits wastewater transfer across residential and commercial drainage settings.
How does the pump respond when wastewater levels change in a collection pit?
An integrated float switch starts automatic operation as liquid levels change so DAB-FEKAVS1200MA manages drainage without constant manual supervision during daily use.
What solids passage is available for wastewater containing suspended debris?
The stainless steel vortex impeller passes suspended solids up to 50 mm and DAB/FEKAVS/1200MA helps reduce clogging during wastewater transfer.
What maximum flow capacity supports high-volume wastewater transfer?
Wastewater transfer supports flow rates up to 533 L/Min and DAB_FEKAVS_1200MA has a separate maximum head of 14 m for lifting duties.
Which construction material helps resist corrosion during submerged operation?
The AISI 304 stainless steel pump body resists corrosion in submerged service and DAB FEKAVS 1200MA uses a stainless steel vortex impeller.
