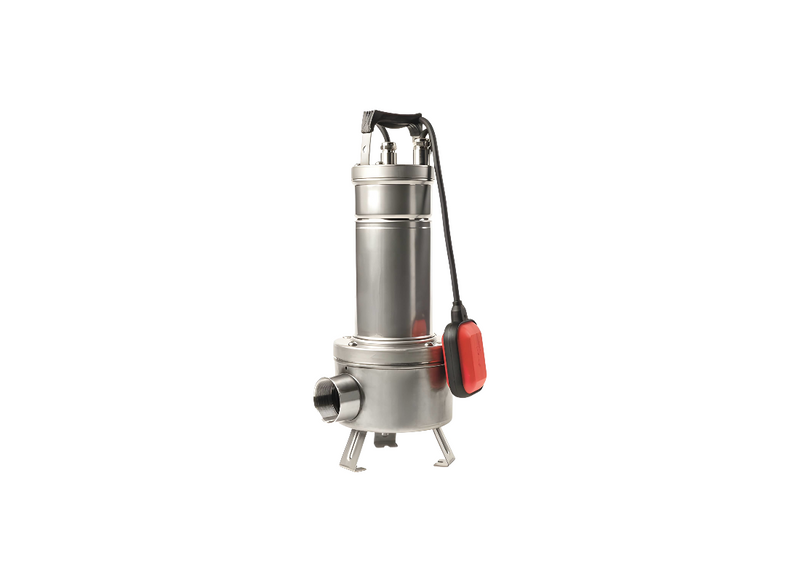

DAB FEKAVS550MA Stainless Steel 50mm Solids Passage Wastewater Pump for Rainwater Transfer with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official DAB
Peace of Mind
Product Overview
Automatic wastewater management in residential and light commercial environments is simplified with the DAB-FEKAVS550MA submersible wastewater pump. Equipped with an integrated float switch, this unit automatically responds to changing liquid levels in pits, tanks and drainage systems. Its construction is intended for handling wastewater and rainwater where suspended solids may be present, providing dependable operation in applications requiring minimal operator intervention.
Performance is supplied by a 0.55 kW single-phase motor operating on a 240v power supply with a rated current of 4.2 Amps. The pump delivers a maximum flow rate of 330 L/Min and develops a maximum head of 7.4 m, providing effective transfer capability for wastewater removal and site drainage duties. Automatic level control supports efficient operation during periods of fluctuating liquid ingress while maintaining consistent hydraulic performance.
The hydraulic system utilizes a stainless steel vortex impeller engineered to process wastewater containing suspended solids. With a free passage capability of up to 50 mm, the design allows larger particles to pass through the pump without restricting flow. This configuration reduces the likelihood of blockage and supports reliable operation in wastewater transfer applications where debris may be present within the pumped media.
Structural durability is provided by a stainless steel AISI 304 pump body that offers excellent resistance to corrosion in demanding drainage environments. The submerged motor assembly is designed for reliable service, while the integrated automatic float mechanism provides hands-free operation. A 2" BSPF discharge connection allows straightforward installation into wastewater pipework and drainage infrastructure.
Features
- Integrated float switch enables automatic start and stop operation based on liquid level.
- Stainless steel vortex impeller supports wastewater transfer with reduced clogging risk.
- 50 mm solids handling capability allows passage of larger suspended particles.
- Stainless steel AISI 304 pump body provides corrosion resistance in wastewater applications.
- Maximum flow rate of 330 L/Min supports efficient drainage and liquid transfer.
- Maximum head of 7.4 m provides reliable lifting performance.
- 2" BSPF outlet connection enables easy integration into drainage systems.
- Suitable for wastewater and rainwater handling in residential and light commercial environments.
SPECIFICATIONS
| Max Flow | 330 L/Min |
| Max Head | 7.4 m |
| Power | 0.55 kW / 240v |
| Rated Current | 4.2 Amps |
| Suitable For | Wastewater Transfer |
| Body Material | Stainless Steel AISI 304 |
| Liquid Temperature | Maximum 50°C |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which motor configuration supplies power for wastewater transfer?
A 0.55 kW single-phase motor draws 4.2 Amps from a 240V supply and DAB-FEKAVS550MA supports automatic wastewater transfer in drainage installations.
What particle passage helps reduce blockage during pumping?
The hydraulic system allows solids passage up to 50 mm and DAB-FEKAVS550MA uses a stainless steel vortex impeller to reduce clogging risk.
What maximum head supports lifting wastewater from drainage pits?
A maximum head of 7.4 m supports wastewater lifting and DAB/FEKAVS550MA has an integrated float switch for automatic level-based operation.
What flow capacity supports wastewater transfer during drainage?
The pump delivers up to 330 L/Min and DAB_FEKAVS550MA is intended for wastewater and rainwater handling in residential and light commercial drainage.
Which materials and outlet connection support installation durability?
The AISI 304 stainless steel body resists corrosion and DAB FEKAVS550MA uses a 2-inch BSPF outlet for drainage pipework integration.
