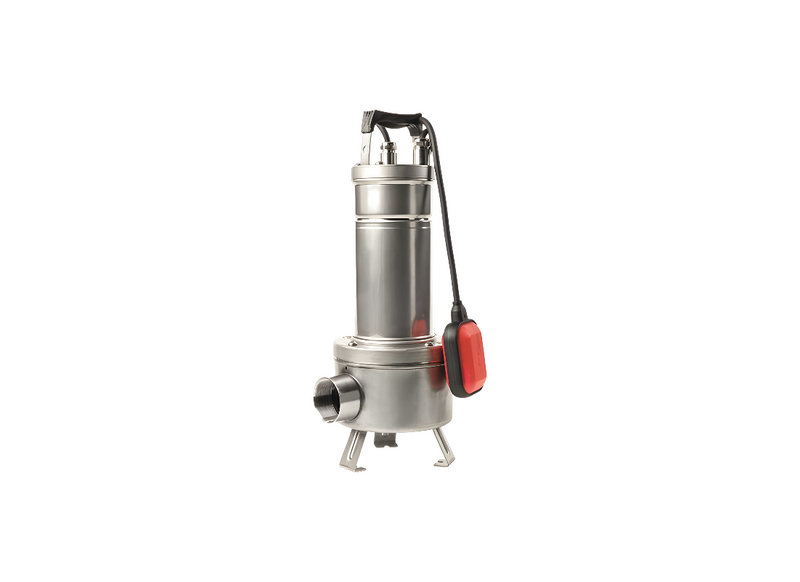

DAB FEKAVS750MA Stainless Steel Corrosion Resistant Wastewater Pump for Commercial Drainage with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official DAB
Peace of Mind
Product Overview
Wastewater and rainwater transfer applications requiring higher hydraulic output are effectively handled by the DAB-FEKAVS750MA submersible wastewater pump. Designed with automatic operation through an integrated float switch, this unit provides reliable liquid level management in pits, collection chambers and drainage systems. Its robust construction supports continuous service in environments where suspended solids are commonly encountered.
Hydraulic capacity is provided by a 0.75 kW single-phase motor operating on a 240v supply with a rated current of 5.13 Amps. The pump generates a maximum flow rate of 400 L/Min and reaches a maximum head of 9.6 m, delivering the performance required for demanding wastewater transfer duties. Automatic level sensing allows efficient operation during varying inflow conditions while reducing the need for manual monitoring.
A stainless steel vortex impeller forms the core of the hydraulic system, enabling reliable handling of wastewater containing suspended solids. The design provides a free passage of up to 50 mm, allowing larger debris to pass through the pump while maintaining flow performance. This arrangement minimizes clogging potential and helps ensure dependable operation in drainage applications where solids are present.
The pump body is manufactured from stainless steel AISI 304, providing excellent corrosion resistance and durability in submerged environments. Combined with an integrated automatic float mechanism, the assembly offers a practical solution for wastewater management across residential and commercial sites. A standard 2" BSPF outlet connection simplifies installation into existing drainage infrastructure.
Features
- Automatic float switch operation manages changing liquid levels without manual control.
- Stainless steel vortex impeller supports efficient wastewater handling with reduced blockage risk.
- 50 mm solids passage capability allows transfer of wastewater containing larger suspended particles.
- Maximum flow rate of 400 L/Min delivers high-capacity drainage performance.
- Maximum head of 9.6 m provides effective lifting capability for wastewater applications.
- Stainless steel AISI 304 pump body offers durability and corrosion resistance.
- 2" BSPF discharge outlet enables straightforward pipework integration.
- Suitable for wastewater and rainwater transfer in residential and commercial drainage systems.
SPECIFICATIONS
| Max Flow | 400 L/Min |
| Max Head | 9.6 m |
| Power | 0.75 kW / 240v |
| Rated Current | 5.13 Amps |
| Suitable For | Wastewater Transfer |
| Body Material | Stainless Steel AISI 304 |
| Liquid Temperature | Maximum 50°C |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum flow capacity supports demanding wastewater transfer duties?
The pump delivers up to 400 L/Min and DAB FEKAVS750MA uses a stainless steel vortex impeller for wastewater containing suspended solids.
What vertical lifting capability is available for drainage installations?
A maximum head of 9.6 m supports vertical drainage and DAB-FEKAVS750MA operates automatically through an integrated float switch as liquid levels change.
How does the pump respond to changing liquid levels?
The integrated float switch manages changing liquid levels and DAB/FEKAVS750MA can operate without constant manual monitoring in residential and commercial drainage systems.
What debris size can pass through the hydraulic system?
A free passage of up to 50 mm allows larger debris through and DAB_FEKAVS750MA uses an AISI 304 stainless steel pump body.
Which outlet connection supports integration with existing drainage pipework?
The 2-inch BSPF outlet connects to drainage pipework and DAB FEKAVS750MA has a 0.75 kW single-phase motor drawing 5.13 Amps.
