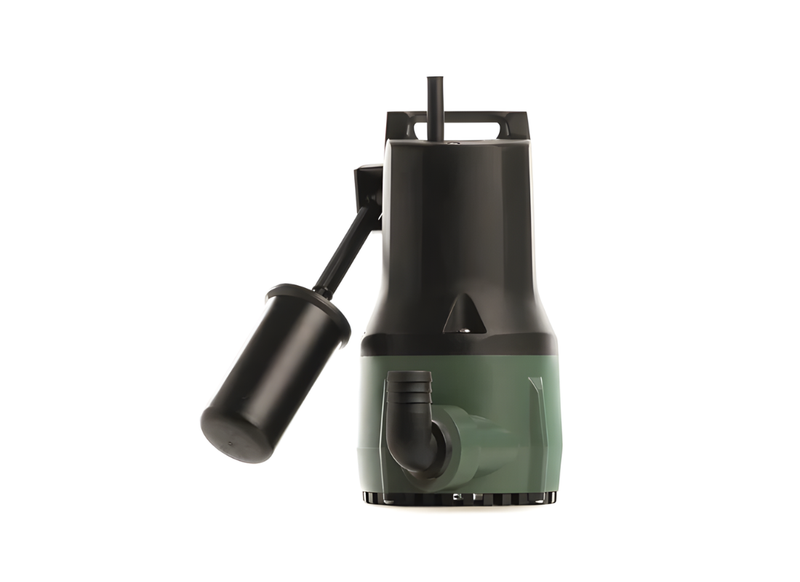

DAB NOVA180A Technopolymer Submersible Dewatering Pump with Float Switch
Australia-Wide
(08) 9240 2992
Official DAB
Peace of Mind
Product Overview
The DAB NOVA180A is a compact technopolymer submersible drainage pump designed for domestic dewatering and light drainage applications. Constructed with a corrosion-resistant technopolymer pump body, impeller and suction grille along with a stainless steel motor shaft, the pump offers durable operation and reliable performance when handling clean or slightly dirty water in residential environments.
Powered by a 0.22 kW (0.3 HP) single-phase motor, the NOVA180A delivers up to 80 litres per minute with a maximum head of approximately 5 metres. The pump features a rigid arm float switch that automatically starts and stops the pump depending on the water level, making it ideal for unattended drainage tasks such as sump pits, flooded basements, rainwater wells and small tanks.
Designed for both fixed and portable installation, the NOVA180A can handle small solids up to about 5 mm and includes built-in thermal motor protection for safe operation. Its lightweight and compact design makes it suitable for emergency water removal, residential drainage systems and general household dewatering tasks.
FEATURES
- 0.3HP (0.22kW) single phase motor (240V)
- Maximum flow: 80 litres per minute
- Maximum head: 5 metres
- Technopolymer pump body and impeller
- Rigid arm automatic float switch
- Handles solids up to 5mm
- Stainless steel motor shaft
- Thermal overload protection
- Submersible design with IP68 protection
- 1 1/4" outlet
- Designed for domestic drainage and dewatering applications
SPECIFICATIONS
| Max Flow | 80 L/Min |
| Max Head | 5 m |
| Power | 0.22 kW / 240v |
| Suitable For | Domestic Drainage / Sump Pumps / Flooded Areas / Water Transfer |
| Body Material | Technopolymer |
| Liquid Temperature | 0°C to +35°C |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What mechanism switches the pump on and off automatically?
Water-level changes trigger the rigid-arm float switch to control automatic start and stop on the DAB NOVA_180A during drainage tasks.
Which particle size can pass through this drainage pump?
The NOVA 180A can handle solids up to 5 mm, making it suitable for light drainage involving clean or slightly dirty water.
What motor protection is provided for domestic dewatering?
Thermal motor protection and IP68 protection are included on the DAB NOVA-180A, which also has a stainless steel motor shaft for drainage service.
How much flow and head can this model achieve?
The NOVA/180A has a maximum flow of 80 L/min also the Maximum head is approximately 5 metres.
Which discharge connection is available for installation?
A 1 1/4-inch outlet is fitted to the DAB NOVA180A, whose compact submersible design suits fixed or portable domestic drainage.
