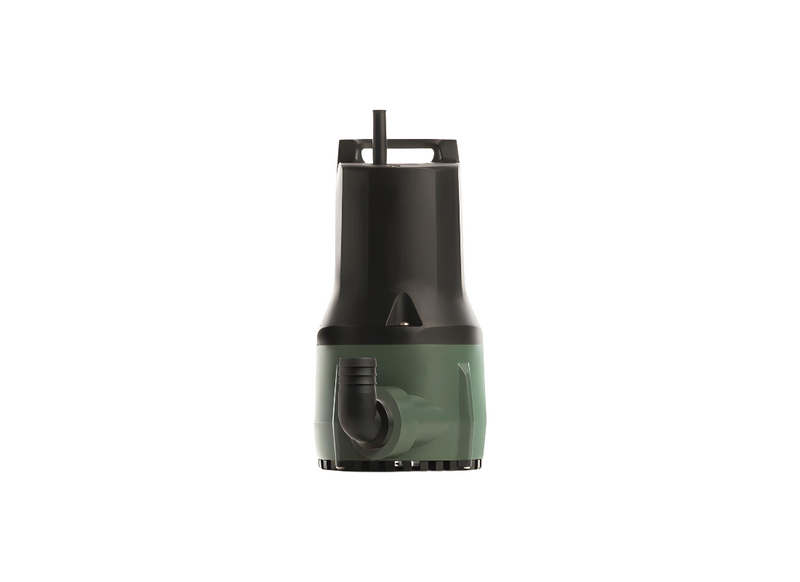

DAB NOVA200 Technopolymer Low Water Level Drainage Pump for Basement Dewatering with 5mm Particle Handling
Australia-Wide
(08) 9240 2992
Official DAB
Peace of Mind
Product Overview
Draining flooded basements or garages requires a compact, manual solution like this submersible unit. Designed for fixed domestic applications or portable emergency use, it excels at lifting water from tanks, excavations, or pedestrian subways. The manual operation mode allows for precise control in shallow water conditions, supporting a minimum draught depth of just 8 mm for thorough evacuation of surface water in residential and hobbyist environments.
Providing reliable hydraulic output, the 0.22 kW single-phase motor operates on a 240v supply at 1.5 Amps. This configuration achieves a maximum head of 6.6 m and a peak flow rate of 200 L/Min, ensuring efficient transfer for domestic gardening and emergency drainage tasks. The asynchronous motor is rated for continuous duty when fully submerged, maintaining thermal stability and consistent volumetric performance during prolonged dewatering cycles.
Hydraulic efficiency is centered on a technopolymer impeller designed for clear water or dirty water containing small suspended solids. The suction grid facilitates the free passage of particles up to 5 mm in diameter, preventing blockages in flooded garages or hobbyist excavations. Because the pump handles solids without fibers, it remains a dependable choice for emptying swimming pools or fountains where surface debris and fine sediments are present.
Structural durability is anchored by a hydro-resistant technopolymer pump body and suction grid coupled with a stainless steel motor casing and shaft. A threefold seal with interposed rings and an oil pre-chamber protects the motor against liquid ingress, while permanently lubricated oversized ball bearings ensure low noise and extended service life. Integrated thermo-amperometric protection safeguards the Class F insulated motor, ensuring longevity in residential service.
FEATURES
- Hydro-resistant technopolymer pump body and suction grid provide structural durability and corrosion resistance.
- Manual operation design facilitates water removal down to a minimum draught depth of 8 mm in tanks.
- Threefold seal arrangement with interposed rings and oil pre-chamber isolates the motor from fluid ingress.
- Continuous duty asynchronous motor is rated for S1 operation when submerged for prolonged drainage cycles.
- Oversized permanently lubricated ball bearings reduce operational noise while extending the mechanical life.
- Integrated thermo-amperometric protection safeguards the Class F motor from thermal failure during duty.
- Stainless steel motor casing and shaft assembly provide high thermal dissipation and material strength.
- Suction grid allows for 5 mm free passage of suspended solids during basement or garage dewatering.
SPECIFICATIONS
| Max Flow | 200 L/Min |
| Max Head | 6.6 m |
| Power | 0.22 kW / 240v |
| Rated Current | 1.5 Amps |
| Suitable For | Basement Dewatering |
| Body Material | Technopolymer |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How shallow can this pump drain water from a flat surface?
For shallow surface drainage the minimum draught depth is 8 mm and DAB NOVA200 supports careful manual water removal in flooded areas.
Which motor rating supports domestic emergency drainage tasks?
Compact domestic drainage is powered by a 0.22 kW single-phase motor on 240V and DAB-NOVA200 draws 1.5 A during operation.
What particle size can pass through the suction grid?
Suspended particles up to 5 mm can pass through the suction grid while DAB/NOVA200 reaches a separate maximum head of 6.6 m.
Which construction materials are used around the motor and hydraulics?
The pump body and suction grid use technopolymer and DAB_NOVA200 includes a stainless steel motor casing and shaft for structural durability.
What type of operation does this drainage unit provide?
Manual control suits tanks garages and excavations and DAB NOVA 200 can deliver flow rates up to 200 L/Min when operating.
