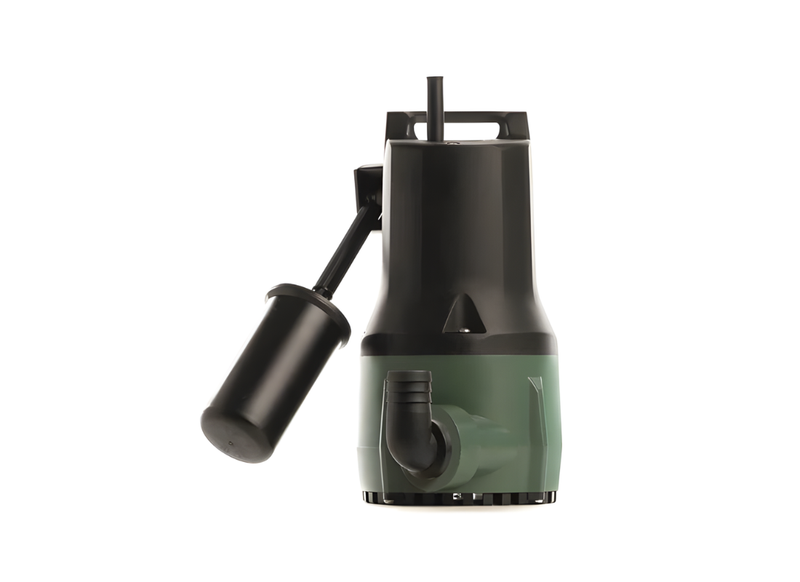

DAB NOVA300A Technopolymer Submersible Drainage Pump with Float Switch
Australia-Wide
(08) 9240 2992
Official DAB
Peace of Mind
Product Overview
The DAB NOVA300A is a compact technopolymer submersible drainage pump designed for domestic water removal and general drainage applications. Constructed with a corrosion-resistant technopolymer pump body, impeller and suction grille, along with a stainless steel motor shaft, the pump offers long service life and reliable performance when handling clean or slightly soiled water in residential environments.
Powered by a 0.22kW (0.3HP) single-phase motor, the NOVA300A delivers up to approximately 200 litres per minute with a maximum head of around 6-7 metres. The pump is equipped with a rigid arm float switch that automatically starts and stops the pump depending on the water level, making it ideal for unattended drainage tasks such as sump pits, flooded basements, and water collection tanks.
Designed for easy installation in both fixed and portable applications, the NOVA300A can handle solids up to about 10 mm and supports immersion depths up to 7 metres. With integrated thermal motor protection and IP68 protection rating, the pump provides safe and reliable operation for domestic drainage, garden water transfer and emergency dewatering situations.
FEATURES
- 0.3HP (0.22kW) single phase motor (240V)
- Maximum flow: 200 litres per minute
- Maximum head: 6.8 metres
- Technopolymer pump body and impeller
- Rigid arm automatic float switch
- Handles solids up to 10mm
- Stainless steel motor shaft
- Thermal overload protection
- Submersible design with IP68 protection
- 1 1/4" outlet
- Designed for domestic drainage and water transfer applications
SPECIFICATIONS
| Max Flow | 200 L/Min |
| Max Head | 6.8 m |
| Power | 0.22 kW / 240v |
| Rated Current | 1.6 Amps |
| Suitable For | Domestic Drainage / Sump Pumps / Flooded Areas / Water Transfer |
| Body Material | Technopolymer |
| Liquid Temperature | 0°C to +35°C |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Does this drainage pump start automatically as water rises?
A rigid-arm float switch starts and stops the NOVA_300A according to water level, supporting unattended drainage from suitable collection tanks.
What size of solid particles can the pump handle?
The DAB NOVA 300A handles solids up to 10 mm. Its technopolymer body impeller and suction grille suit clean or slightly soiled water.
How deep can the pump be immersed?
The NOVA-300A supports immersion depths up to 7 metres and has IP68 protection, with thermal motor protection integrated for domestic drainage use.
What are its maximum flow and head ratings?
Maximum flow for the NOVA/300A is 200 L/min and Maximum head is 6.8 metres.
Which outlet connection is provided for drainage pipework?
A 1 1/4-inch outlet is provided on the DAB NOVA300A for fixed or portable domestic drainage installations in suitable collection areas.
