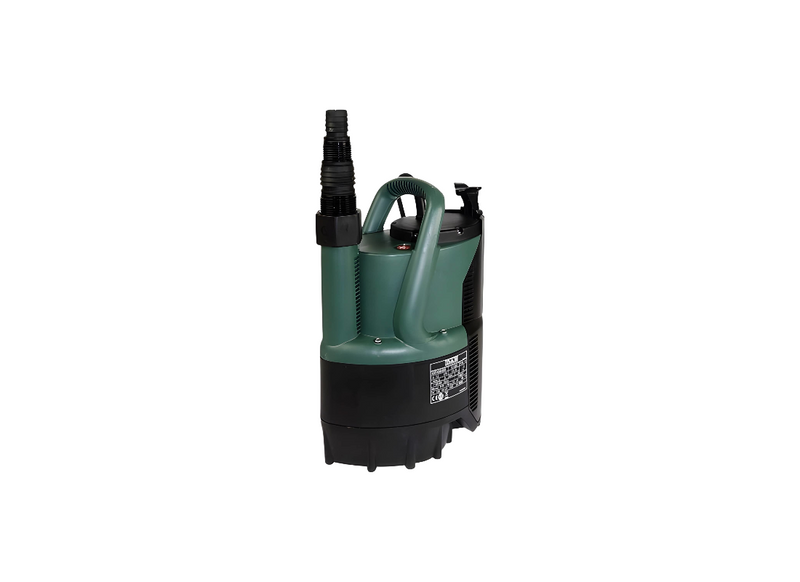

DAB VERTY NOVA 400M Technopolymer Submersible Drainage Pump with Internal Float Switch
Australia-Wide
(08) 9240 2992
Official DAB
Peace of Mind
Product Overview
The DAB VERTY NOVA 400M is a compact technopolymer submersible drainage pump designed for domestic dewatering and drainage applications in confined spaces. Built with corrosion-resistant technopolymer components and a stainless steel motor casing and shaft, the pump provides reliable performance when handling clean or slightly dirty water containing small suspended particles.
Powered by a 0.4 kW (0.55 HP) single-phase motor, the VERTY NOVA 400M delivers up to approximately 180 litres per minute with a maximum head of around 9 metres. The pump features a vertical top discharge design and an internal float switch that enables automatic start and stop operation depending on the water level.
Its narrow body allows installation in small sump pits with minimum dimensions around 20 × 20 cm. The pump can handle water containing particles up to about 5 mm and can drain water levels down to a very low depth in manual mode, making it ideal for flooded basements, garages, pits and rainwater tanks.
FEATURES
- 0.55HP (0.4kW) single phase motor (240V)
- Maximum flow: 180 litres per minute
- Maximum head: 9 metres
- Technopolymer pump body and hydraulic components
- Internal automatic float switch for start/stop operation
- Vertical top discharge design for narrow pits
- Handles solids up to 5mm
- Stainless steel motor shaft and casing
- Thermal overload motor protection
- 1 1/4" outlet
- Designed for domestic drainage and dewatering applications
SPECIFICATIONS
| Max Flow | 180 L/Min |
| Max Head | 9 m |
| Power | 0.4 kW / 240v |
| Rated Current | 2.6 Amps |
| Suitable For | Domestic Drainage / Sump Pits / Basement Dewatering / Water Transfer |
| Body Material | Technopolymer |
| Liquid Temperature | 0°C to +35°C |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Will the narrow body fit into compact sump pits?
The VERTY_NOVA_400M has a narrow body designed for sump pits around 20 × 20 cm, making it suitable for confined drainage spaces.
How does automatic switching respond to water levels?
An internal float switch starts and stops the VERTY NOVA 400M automatically as the water level changes in the pit.
What particle size can pass through this drainage pump?
The DAB VERTY-NOVA-400M handles particles up to 5 mm and is designed for clean or slightly dirty water drainage in domestic settings.
Can the pump drain water to a low remaining level?
Manual mode allows the VERTY/NOVA/400M to drain water to a very low level, supporting dewatering in garages pits and basements.
What are the maximum flow and head ratings?
The VERTYNOVA400M has a maximum flow of approximately 180 L/min also Its maximum head is 9 metres.
