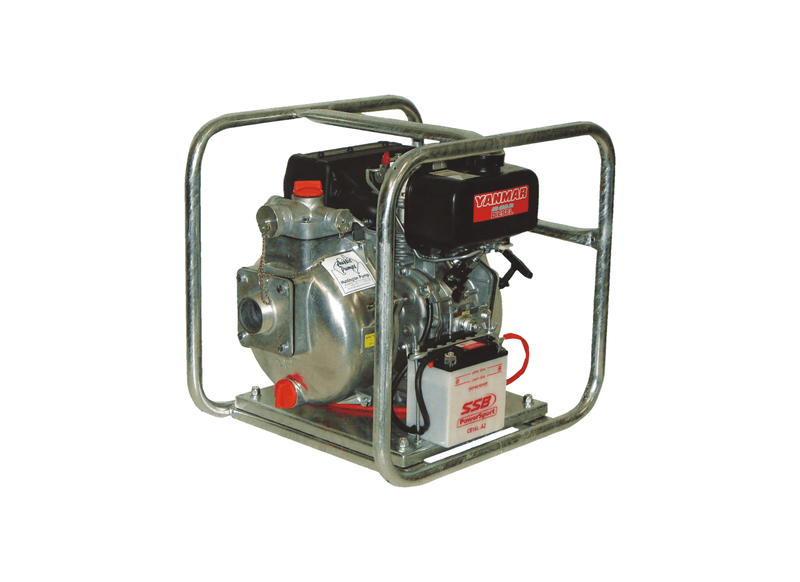

Aussie Pumps Fire Chief QP205SE/L48ESOL Aluminium 4.8HP Firefighting Pump with Yanmar L48ESOL Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Remote property caretakers and absent landowners install the Aussie Fire Chief (QP205SE/L48ESOL) solenoid diesel pump for autonomous bushfire protection around homestead perimeters and isolated outbuildings. A fitted fuel solenoid supports automatic start-stop control throughout long dormant winter months. The self-priming wet end picks up water instantly when emergency fire pumps are initiated.
Emergency water delivery achieves a maximum delivery rate of 400 L/min and develops a maximum elevation head of 60 m. Internal hydraulic architecture features a marine grade aluminium casing with big belly priming geometry, a single piece closed aluminium impeller, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass is 45 kg in standard operating trim.
Mechanical drive is provided by a Yanmar L48 4.8HP electric start diesel engine with stop/start fuel solenoid (battery supplied separately) producing 4.8 HP. Plumbing connections incorporate 2" BSP male inlet & 3-way outlet (2 x 1", 1 x 1.5") with metal caps & chains, and the self-priming wet end achieves 7.6 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Structural fully welded steel roll frame with battery mounting tray encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- High tensile marine grade aluminium casing resists corrosion through continuous water service.
- Big belly priming chamber picks up prime fast from 7.6 m.
- A single-piece closed impeller delivers 60 m head pressure with low diesel fuel usage.
- Fire ports with metal caps and retention chains come standard for multiline hose lays.
- The serviceable suction valve holds prime in the casing between jobs.
- Integrated fuel-solenoid auto control keeps this ready for push-button key starting without manual intervention.
- Aussie Pumps covers the pump end for 5 years with 2-year Yanmar engine warranty support.
SPECIFICATIONS
| Max Flow | 400 L/Min |
| Max Head | 60 m |
| Power | Yanmar L48 Diesel Solenoid Engine |
| Suitable For | Bushfire Protection |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 50 mm |
| Outlet Size | 3-way (2 x 25 mm, 1 x 40 mm) |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What pipe connection sizes and manifold types come standard?
The Aussie Pumps Fire Chief Diesel QP205SE L48ESOL (QP205SE/L48ESOL) features 50 mm BSP intake threading and 3-way (2 x 25 mm, 1 x 40 mm) BSP delivery ports for flexible pipe and hose connections.
How much liquid volume and elevation pressure can this pump provide?
The QP205SE/L48ESOL provides up to 400 L/min in water flow and up to 60 m in elevation head, with actual delivery determined by the operating point.
What warranty terms and spare parts backing apply in Australia?
The QP205SE-L48ESOL is covered by a 5-year pump end warranty, 2-year Yanmar engine warranty, with complete spare parts access and factory documentation available Australia-wide.
What type of power unit and starting method are fitted?
The QP205SE L48ESOL features a Yanmar L48 4.8HP electric start diesel engine with stop/start fuel solenoid, incorporating an electric key start ignition with fuel-solenoid automatic start-stop control to get pumping quickly.
How deep can this unit prime liquid from open water sources?
The Aussie QP205SE/L48ESOL provides self-priming capability from up to 7.6 m vertical suction lift, picking up prime swiftly without requiring external line priming.
