SKU: QPT205SLT/L100ES

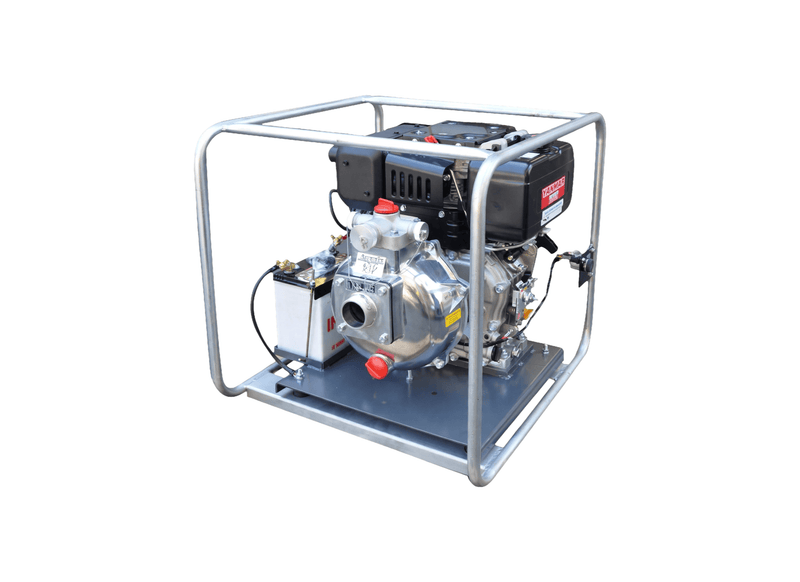

Aussie Pumps Mr T QPT205SLT/L100ES Aluminium 10HP Twin Impeller Firefighting Pump with Yanmar L100ES Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Remote eco-resorts and mountain pastoral holdings install the Aussie Mr T (QPT205SLT/L100ES) solenoid twin impeller diesel pump for automated hillside sprinkler systems and emergency bushfire protection. The fitted fuel solenoid keeps the pump ready for automatic start-stop activation during fire danger days. Dual impellers produce strong head pressure to feed roof-mounted sprinkler systems and high pressure hydrants.
High elevation delivery volume achieves a maximum delivery rate of 450 L/min and develops a maximum elevation head of 90 m. Internal hydraulic architecture features a marine grade aluminium casing, twin closed aluminium impellers mounted on a single drive shaft, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass measures 100 kg in dry operating trim.
Mechanical drive is provided by a Yanmar L100 10HP electric start diesel engine with stop/start fuel solenoid (battery supplied separately) producing 10 HP. Plumbing connections incorporate 2" BSP male inlet & 3-way outlet (2 x 1", 1 x 1.5") with metal caps & chains, and the self-priming wet end achieves 7.6 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Structural fully welded steel roll frame with battery mounting tray encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- The 2-inch alloy body shrugs off corrosion across seasons of farm use.
- A large internal liquid reservoir delivers fast self-priming from 7.6 m depth.
- Twin closed aluminium impellers push discharge heads up to 90 m.
- A 3-way outlet (2 x 1-inch and 1 x 1.5-inch) with metal caps and chains feeds multiple hose lines.
- The serviceable suction valve holds prime in the casing between jobs.
- Aussie Pumps covers the pump end for 5 years with 2-year Yanmar engine warranty support.
SPECIFICATIONS
| Max Flow | 450 L/Min |
| Max Head | 90 m |
| Power | Yanmar L100 Diesel Solenoid Engine |
| Suitable For | Spray Irrigation |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 50 mm |
| Outlet Size | 3-way (2 x 25 mm, 1 x 40 mm) |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How are the intake and discharge pipe connections laid out?
The Aussie Pumps Mr T Twin Impeller Diesel QPT205SLT L100ES (QPT205SLT/L100ES) features 50 mm BSP intake threading and 3-way (2 x 25 mm, 1 x 40 mm) BSP delivery ports for flexible pipe and hose connections.
What volumetric fluid output and vertical dynamic head apply?
The QPT205SLT/L100ES provides up to 450 L/min in water flow and up to 90 m in elevation head, with actual delivery determined by the operating point.
Which warranty terms and service agent networks support this unit?
The QPT205SLT-L100ES is covered by a 5-year pump end warranty, 2-year Yanmar engine warranty, with complete spare parts access and factory documentation available Australia-wide.
How is this unit driven and what starting mechanics are provided?
The QPT205SLT L100ES features a Yanmar L100 10HP electric start diesel engine with stop/start fuel solenoid, incorporating an electric key start ignition to get pumping quickly.
What suction lift performance and priming depth are achievable?
With vertical suction lift reaching up to 7.6 m, the Aussie QPT205SLT/L100ES draws water directly from dams and pits once the pump casing is charged.
