SKU: QPT205SLTEDL100

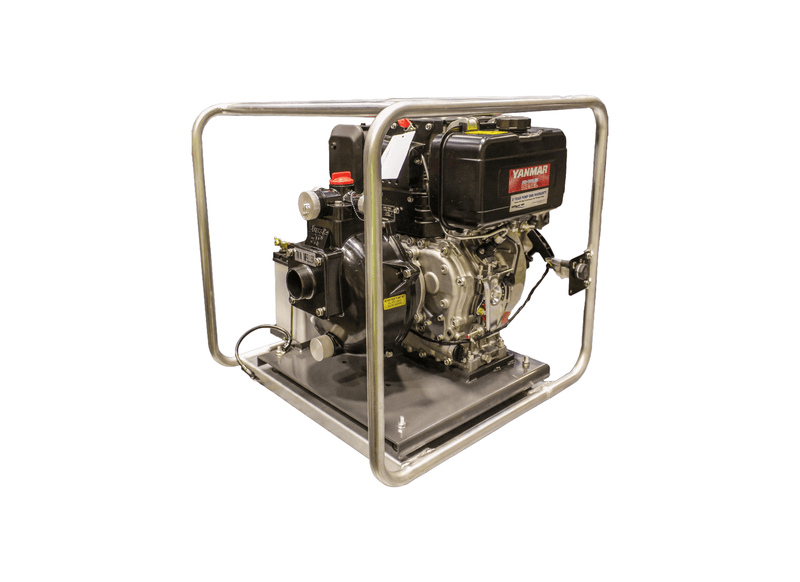

Aussie Pumps Mr T Twin Skipper QPT205SLTEDL100 Aluminium 10HP Marine Fire Pump with Yanmar Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Extra-high pressure for marine firefighting and long-distance water elevation is the focus of this twin-impeller marine configuration. Engineered for proven service in severe coastal and maritime.
Hydraulic performance encompasses a maximum shut-off head of 90 m (128 PSI) at zero flow and an open-discharge flow capacity of up to 450 L/min at zero static head. The epoxy-coated aluminium casing houses twin bronze impellers, bronze volute, ceramic/carbon seal, and zinc anode drain plug. Mass: 100 kg in roll frame. High-tensile body metallurgy resists outdoor weathering and harsh operating environments.
Powered by an electric-start Yanmar L100 (10 HP) diesel engine in a protective roll frame (battery supplied separately; QPT twin-impeller models are excluded from free Geomet couplings/strainer). Ports feature 2" inlet with 3-way outlet, self-priming to 7.6 m. High-torque Yanmar diesel engine drive delivers strong fuel economy on site.
Engineered with stainless steel external fasteners and zinc anode protection for severe marine fire defense. Supported by complete technical assembly documentation, product schematics, and factory replacement component stockists through Aussie Pumps distribution channels. Complete technical assembly schematics and spare parts stockists support ongoing field servicing.
Features- Twin bronze impellers and bronze volute generate extra high pressure up to 90 m head (128 PSI).
- Epoxy-coated marine aluminium casing with sacrificial zinc anode for saltwater defense.
- Electric-start Yanmar L100 (10 HP) diesel engine mounted in a protective roll frame.
- High-pressure delivery reaching 450 L/min maximum flow rate.
- Multi-port 2-inch inlet with 3-way discharge manifold for multi-hose fire lines.
- Self-priming internal wet end draws water from vertical suction depths up to 7.6 m.
- Includes a 5-year Aussie Pumps warranty on the pump body and a 2-year Yanmar diesel engine warranty.
SPECIFICATIONS
| Max Flow | 450 L/Min |
| Max Head | 90 m |
| Power | Yanmar L100 Diesel Electric Start Engine |
| Suitable For | Vessel Washdown |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 50 mm |
| Outlet Size | 3-way (2 x 25 mm, 1 x 40 mm) |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What pressure advantage does the twin-stage impeller configuration deliver at sea?
With dual closed impellers working in series, the Aussie Pumps Sea Skipper Twin Impeller QPT205SLTE (QPT205SLTEDL100) generates massive discharge pressure, projecting strong firefighting jets up to top masts or through extensive deck piping networks.
What marine protection treatments are applied to this twin-stage assembly?
The QPT205SLTEDL100 features marine conversion coatings and sacrificial zinc anodes to defend internal twin-impeller passages from aggressive brine corrosion.
What operational water flow and total dynamic head are rated?
Performance testing for the QPT205SLTEDL100 establishes a maximum flow rate of approximately 450 L/min and a maximum head of approximately 90 m.
How is mechanical horsepower supplied and initiated on the pump?
The QPT205SLTEDL100 derives rotational power from a Yanmar L100 10HP electric-start diesel engine, featuring turnkey electric starting.
What vertical priming depth is delivered without external filling aids?
The QPT205SLTEDL100 draws water vertically from depths reaching up to approximately 7.6 m, supporting swift setup at open water points.
