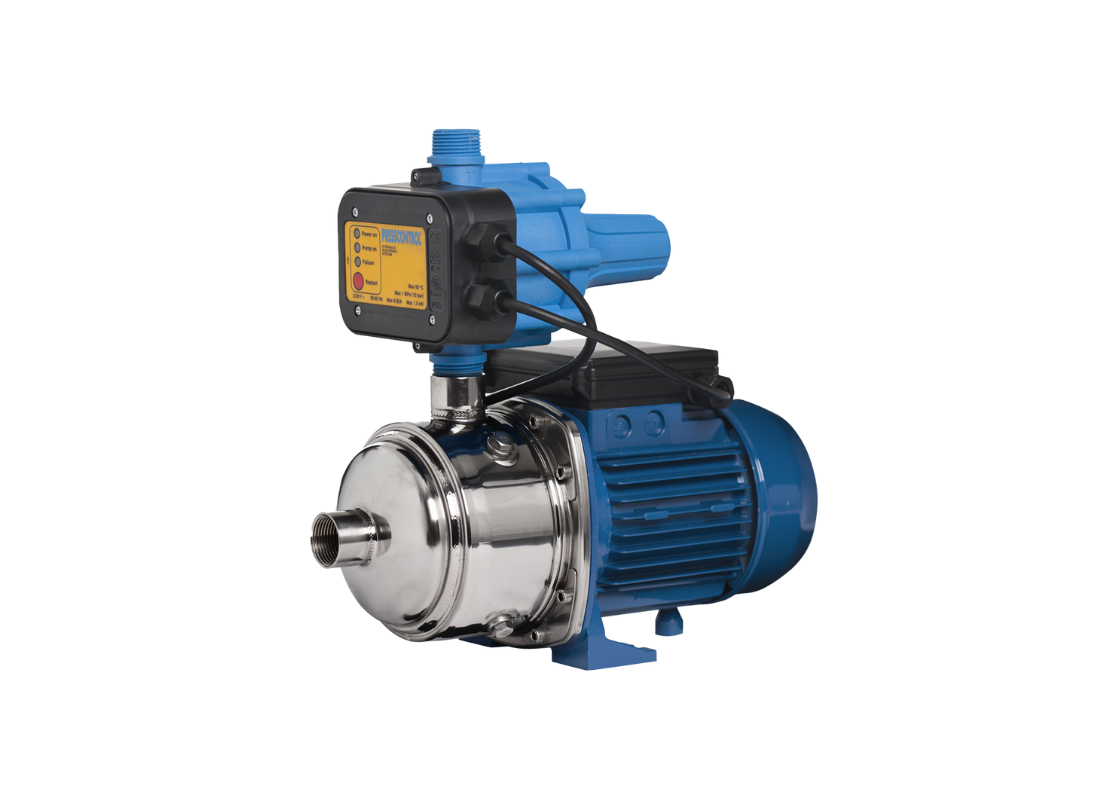

Ebara MATRIX 5-5T/1.3M-MC22 Stainless Steel Automatic Pressure Pump for Water Boosting with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview
Where automatic water pressure management is required, the Ebara MATRIX 5-5T/1.3M-MC22 delivers reliable clean water transfer for residential and commercial supply systems. Its integrated MC22 Mascontrol unit with 2.2 Bar restart pressure enables automatic pump operation based on system demand, making it suitable for building water supply, booster systems, and continuous pressure applications.
With flow performance reaching 130 L/Min and head capacity up to 57.5 metres, the pump provides stable pressure delivery across varying operating conditions. The multistage hydraulic arrangement supports balanced water movement through elevated pipelines, multi-outlet systems, and pressure-sensitive installations requiring steady circulation.
Water transfer is managed through a closed impeller configuration designed for controlled hydraulic efficiency and smooth circulation characteristics. The staged impeller assembly assists with pressure development while helping minimise turbulence within the pump chamber during continuous-duty operation.
304 stainless steel casings, impellers, shaft, and casing cover improve corrosion resistance and long-term durability in clean water applications. The Carbon/Ceramic/EPDM mechanical seal, TEFC motor construction, IP55 protection, and Class F insulation support dependable operation, while the close-coupled horizontal design allows compact installation and easier servicing access.
FEATURES- Integrated MC22 Mascontrol unit with 2.2 Bar restart pressure
- Automatic pressure-based pump start and stop operation
- Horizontal multistage hydraulic design for compact booster installations
- Closed impeller construction supports stable pressure transfer
- 304 stainless steel wetted components improve corrosion resistance
- Carbon/Ceramic/EPDM mechanical seal arrangement for reliable sealing stability
- IP55 motor protection with Class F insulation for demanding duty cycles
- Threaded suction and discharge connections simplify system integration
SPECIFICATIONS
| Max Flow | 130 L/Min |
| Max Head | 57.5 m |
| Power | 1.3 kW / 240v |
| Rated Current | 7.8 Amps |
| Suitable For | Pressure Boosting |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 85°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What restart pressure is provided by the MC22 unit?
The integrated MC22 Mascontrol unit has a 2.2 Bar restart pressure, allowing MATRIX_5_5T_1_3M_MC22 to restart automatically as system pressure falls.
Which maximum flow supports building water supply?
Building supply systems can receive up to 130 L/Min from MATRIX 5 5T 1 3M MC22 for booster installations requiring substantial clean-water flow.
What maximum head is available for boosting?
The pump's head capacity reaches 57.5 m, giving MATRIX-5-5T-1-3M-MC22 pressure capability for elevated pipelines and multi-outlet building installations for clean-water supply.
How does the closed impeller manage water transfer?
Closed impeller staging guides the flow through MATRIX/5/5T/1/3M/MC22 and helps maintain controlled circulation with smooth pressure development across successive stages.
Which materials and sealing components are fitted?
The wetted assembly combines stainless steel casing, impellers and shaft with a Carbon/Ceramic/EPDM seal in MATRIX55T13MMC22, plus IP55 motor protection and Class F insulation.
