SKU: 99752340

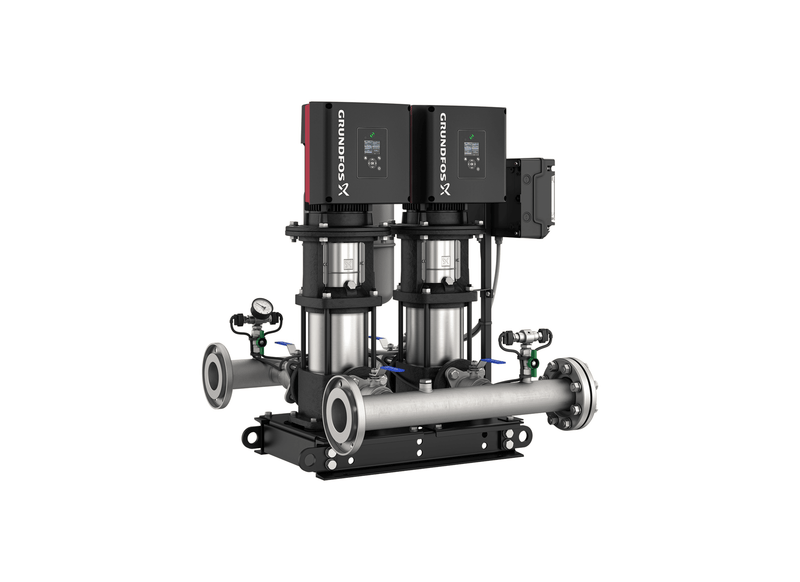

Grundfos Hydro Multi-E 2 x CRNE 15-8 Three Phase 2 x 7.5kW Variable Speed 304ss Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Commercial bakery plants running multi-shift steam and wash-down feeds select the Hydro Multi-E 2 CRNE 15-8. Two Grundfos CRNE 15-8 multistage pumps share the hydraulic load across a common skid, staging smoothly to match real-time draw. Ordering part number 99752340 puts the fully tested booster skid directly onto the plant room floor.
Maximum volumetric delivery easily sustains flow rates up to 933 L/min. Up to 160 metres of delivery head is available to keep upper-floor fixtures pressurised. There is no separate central controller to purchase: Multi-Master control resides within the pumps, either unit can assume the controlling role, and a fault is handed over cleanly without interrupting supply.
Delivered factory-piped on a shared steel frame, the booster includes stainless steel pipework, two 80 mm manifold connections, isolation and non-return valves, pressure sensors, plus a 24L diaphragm tank. It connects to a 3 x 380-415 V supply at 50 / 60 Hz with combined rated current of 30 A (2 x 15 A per pump). Motors carry IP55 sealing with maximum pressure of 16 bar. Liquid-temperature suitability is 5°C to 60°C, and inlet pressure is rated to 16 bar.
The assembly delivers reliable pressure boosting across hospital surgical wings, aged-care complexes and industrial process supply, safeguarding tenant comfort. Variable-speed motor modulation makes the set a practical clean-water pressure-boosting solution for both new plant rooms and system upgrades.
FEATURES
- Energy draw matches the actual job because speed follows demand, not a fixed curve.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- Pumps are cut in and out according to demand, every running unit turning at the same speed to hold the pressure set point.
- Stainless steel manifolds provide two 80 mm manifold connections ready for plant pipework.
- Both constant-pressure and proportional-pressure modes are available, so plant rooms can tune response to pipework.
- Rated 7.5 kW (P2) on every main pump in the frame.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a smartphone.
- Frequency converters on the motors pair with IE5 permanent magnet motors for efficient part-load operation.
- Maximum operating pressure of 16 bar with motors sealed to IP55.
- The system protects its pumps against dry running if the incoming supply is lost.
- The system pairs two CRNE 15-8 pumps in parallel duty, controlled as a single coordinated system.
What's Included
- 2 x Grundfos CRNE 15-8 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 933 L/Min |
| Max Head | 160 m |
| Power | 2 x 7.5 kW / 415v |
| Rated Current | 2 x 15 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How are the multistage pumps driven and electronically regulated across fluctuating demand?
Pumping units within the Grundfos Hydro Multi-E 2 CRNE 15-8 U2 A-A-I-I-DU (part number 99752340) are driven by two IE5 permanent-magnet MGE electric motors producing 7.5 kW per unit on a 3 x 380-415 V electrical supply.
What maximum discharge head and system pressure does this parallel centrifugal skid maintain?
To overcome high elevation changes, the Hydro Multi-E 2 CRNE 15-8 generates up to 160 m total dynamic head with an 16 bar system rating.
Which inlet and outlet pipe connection fittings are factory supplied on this booster package?
Pre-mounted stainless manifolds on the Hydro-Multi-E-2-CRNE-15-8 feature DN 80 suction and discharge headers with dedicated isolating valves and discharge check valves.
Which factory warranty terms protect this complete multi-pump booster package?
Factory backing for the Hydro Multi E 2 CRNE 15 8 includes an authentic Grundfos two-year manufacturer warranty covering the pumps, drive electronics, and skid assembly.
What peak flow rate can this parallel multistage pump package supply to the distribution network?
Meeting peak volumetric requirements, the 2 CRNE 15-8 (Hydro Multi-E) achieves a maximum water flow of 933 L/min across the network.
