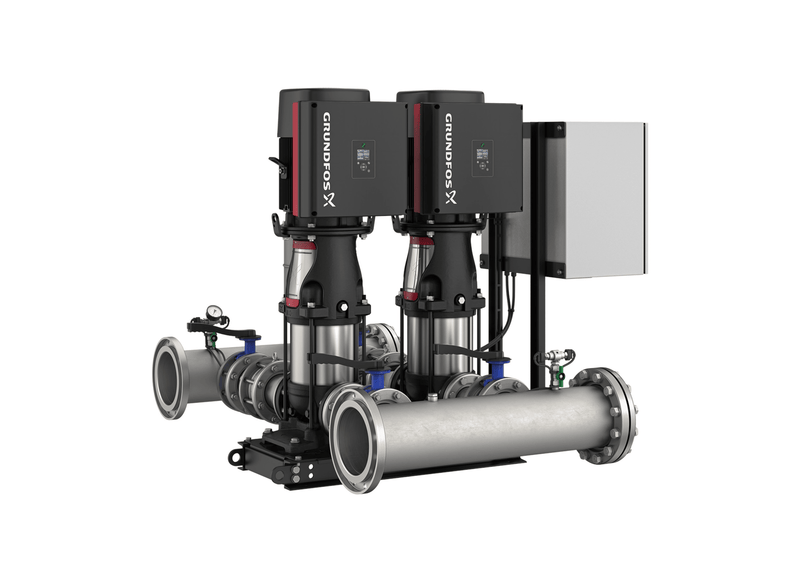

Grundfos Hydro Multi-E 2 x CRNE 45-3 Three Phase 2 x 18.5kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Pharmaceutical packing facilities requiring clean-water process pressure choose the Hydro Multi-E 2 CRNE 45-3. Two Grundfos CRNE 45-3 multistage pumps share the hydraulic load across a common skid, staging smoothly to match real-time draw. Quote part number 93368427 to have the entire pre-commissioned assembly delivered to site.
Throughput capacity scales smoothly up to 2333 L/min as fixtures open. Up to 111.2 metres of shut-off head is generated to overcome vertical riser friction. There is no separate central controller to purchase: Multi-Master control resides within the pumps, either unit can assume the controlling role, and a fault is handed over cleanly without interrupting supply.
Supplied as a fully piped booster assembly, the set integrates stainless steel pipework, two 150 mm manifold connections, isolation and non-return valves, pressure sensors, plus a 24L diaphragm tank. It connects to a 3 x 380-415 V supply at 50 / 60 Hz with combined rated current of 64 A (2 x 32 A per pump). Motors carry IP54 sealing with maximum pressure of 16 bar. Liquid-temperature suitability is 5°C to 60°C, and inlet pressure is rated to 16 bar.
Its home ground covers facilities like hospital surgical wings, aged-care complexes and industrial process supply, where line pressure must remain uncompromised. Variable-speed motor modulation makes the set a practical clean-water pressure-boosting solution for both new plant rooms and system upgrades.
FEATURES
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a smartphone.
- Slow-speed duty and staged switching keep consumption down through low-demand hours.
- The system pairs two CRNE 45-3 pumps in parallel duty, controlled as a single coordinated system.
- Each pump is driven by IE5 permanent magnet motors with frequency-controlled speed matching demand.
- Both constant-pressure and proportional-pressure modes are available, so plant rooms can tune response to pipework.
- The system protects its pumps against dry running if the incoming supply is lost.
- Maximum operating pressure of 16 bar with motors sealed to IP54.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- Rated 18.5 kW (P2) on every main pump in the frame.
- Pump staging follows demand automatically: pumps enter at low speed as pressure drops, ramp to equal speed, and exit as flow fades.
- Stainless steel manifolds provide two 150 mm manifold connections ready for plant pipework.
What's Included
- 2 x Grundfos CRNE 45-3 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 2333 L/Min |
| Max Head | 111 m |
| Power | 2 x 18.5 kW / 415v |
| Rated Current | 2 x 32 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 150 mm |
| Outlet Size | 150 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much fluid volume can the parallel centrifugal wet ends discharge when operating together?
When all pumps run simultaneously, the Grundfos Hydro Multi-E 2 CRNE45-3 U2 A-A-I-I-D (part number 93368427) maintains a total delivery throughput of up to 2333 L/min.
Which permanent magnet or inverter electric motors power this parallel pump assembly?
Mechanical propulsion across the Hydro Multi-E 2 CRNE45-3 relies on two 18.5 kW IE5 permanent-magnet MGE electric motors running on a 3 x 380-415 V mains feed.
How much total dynamic head does this multi-pump booster package generate under peak demand?
Vertical discharge capability on the Hydro-Multi-E-2-CRNE45-3 supplies up to 111.2 m dynamic elevation head while maintaining 16 bar pressure tolerance.
What plumbing manifold dimensions and isolating valves are factory assembled on this package?
Piping infrastructure across the Hydro Multi E 2 CRNE45 3 supplies factory-fitted DN 150 stainless steel suction and discharge headers with line check valves and isolating valves.
What manufacturer warranty protection backs the complete packaged booster skid?
Protection on the 2 CRNE45-3 (Hydro Multi-E) is provided by a comprehensive Grundfos two-year manufacturer warranty with extensive Australian technical service and spare parts support.
