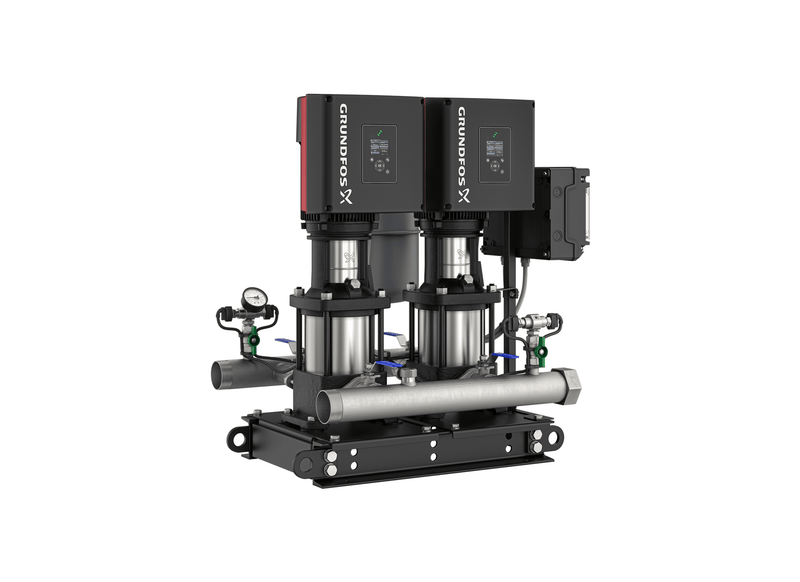

Grundfos Hydro Multi-E 2 x CRNE 5-2 Three Phase 2 x 0.37kW Variable Speed 304ss Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Suburban community centres and library facilities regulate shared water pressure with the Hydro Multi-E 2 CRNE 5-2. Integrated variable-speed drives coordinate the two CRNE 5-2 pumps in parallel, seamlessly ramping output as fixtures open. Everything is ordered under the single manufacturer part number 99752195.
Supplying up to 340 L/min of stable clean-water volume, The vertical stage assembly can build up to 19 metres of head for steep elevations. Because every pump carries its own frequency converter and Multi-Master software elects the controlling pump itself, losing a control unit or pressure sensor means seamless handover rather than a shutdown.
Pre-fitted on a common structural steel frame, the booster features stainless steel manifolds, two Rp 2 inch threaded manifold connections, isolation and non-return valves, pressure sensors, plus a 24L diaphragm tank. It connects to a 3 x 380-415 V supply at 50 / 60 Hz with combined rated current of 2.28 A (2 x 1.14 A per pump). Motors carry IP55 sealing with maximum pressure of 10 bar. Liquid-temperature suitability is 5°C to 60°C, and inlet pressure is rated to 10 bar.
The system delivers constant-pressure boosting across high-rise apartments, hotel plant rooms and schools and universities, ensuring dependable daily supply. Variable-speed motor modulation makes the set a practical clean-water pressure-boosting solution for both new plant rooms and system upgrades.
FEATURES
- Maximum operating pressure of 10 bar with motors sealed to IP55.
- Variable speed comes from frequency converters matched to IE5 permanent magnet motors, keeping the booster set in its efficient range.
- Cascade logic brings pumps on-line and off-line against changing demand without manual intervention.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- Power use precisely tracks demand, avoiding the waste of fixed-speed alternates.
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- The controller tracks the pressure setpoint with proportional deviation alerts before conditions become faults.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- Two Grundfos CRNE 5-2 pumps share the boosting work in parallel.
- Stainless steel manifolds provide two Rp 2 inch threaded manifold connections ready for plant pipework.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a smartphone.
- The system protects its pumps against dry running if the incoming supply is lost.
- At P2 each main pump is 0.37 kW, covering the duty without oversizing the frame.
What's Included
- 2 x Grundfos CRNE 5-2 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 340 L/Min |
| Max Head | 19 m |
| Power | 2 x 0.37 kW / 415v |
| Rated Current | 2 x 1.14 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What suction and discharge connection sizing is provided on the stainless steel manifolds?
Pre-assembled manifold pipework on the Grundfos Hydro Multi-E 2 CRNE 5-2 U2 A-A-I-I-DU (part number 99752195) includes R 2 stainless steel suction and discharge headers with isolating valves and non-return valves.
Which manufacturer warranty terms support this variable speed booster package?
Complete skid backing for the Hydro Multi-E 2 CRNE 5-2 includes an authentic Grundfos two-year manufacturer warranty covering the motors, wet ends, and integrated controls.
What peak water delivery capacity does this multi-pump booster assembly maintain across peak demand?
Under maximum plant draw, the Hydro-Multi-E-2-CRNE-5-2 supplies up to 340 L/min of clean water through parallel multistage stages.
How is mechanical power delivered and electronically regulated across this multi-pump booster skid?
Electrical propulsion across the Hydro Multi E 2 CRNE 5 2 utilizes two 0.37 kW IE5 permanent-magnet MGE electric motors wired for 3 x 380-415 V supply.
What dynamic elevation head does this variable frequency booster package achieve on the mains?
Under peak line requirements, the 2 CRNE 5-2 (Hydro Multi-E) delivers a maximum vertical head of 19 m and accommodates system pressures up to 10 bar.
