SKU: 99752240

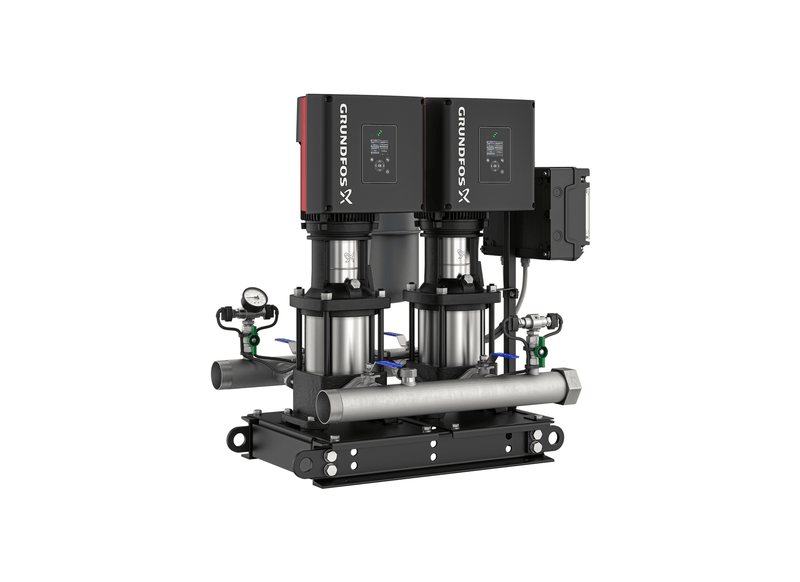

Grundfos Hydro Multi-E 2 x CRNE 5-8 Three Phase 2 x 1.5kW Variable Speed 304ss Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Veterinary hospital suites and animal care boarding facilities choose the Hydro Multi-E 2 CRNE 5-8. The package operates two Grundfos CRNE 5-8 vertical multistage pumps in parallel, automatically staging each unit as flow demand increases. Specify part number 99752240 and the complete factory-tested package arrives ready for connection.
Handling substantial simultaneous demand, flow achieves up to 340 L/min. To pressurise elevated upper levels, the pumps develop up to 79 metres of head. Because every pump carries its own frequency converter and Multi-Master software elects the controlling pump itself, losing a control unit or pressure sensor means seamless handover rather than a shutdown.
Delivered as a self-contained pumping skid, the assembly includes stainless steel manifolds, two Rp 2 inch threaded manifold connections, isolation and non-return valves, pressure sensors, plus a 24L diaphragm tank. It connects to a 3 x 380-415 V supply at 50 / 60 Hz with combined rated current of 6.2 A (2 x 3.1 A per pump). Motors carry IP55 sealing with maximum pressure of 10 bar. Liquid-temperature suitability is 5°C to 60°C, and inlet pressure is rated to 10 bar.
The package provides robust pressure boosting across high-rise apartments, hotel plant rooms and schools and universities, supporting busy peak trading. Variable-speed motor modulation makes the set a practical clean-water pressure-boosting solution for both new plant rooms and system upgrades.
FEATURES
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- The controller tracks the pressure setpoint with proportional deviation alerts before conditions become faults.
- Cascade logic brings pumps on-line and off-line against changing demand without manual intervention.
- The system pairs two CRNE 5-8 pumps in parallel duty, controlled as a single coordinated system.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a smartphone.
- Slow-speed duty and staged switching keep consumption down through low-demand hours.
- The system protects its pumps against dry running if the incoming supply is lost.
- Variable speed comes from frequency converters matched to IE5 permanent magnet motors, keeping the booster set in its efficient range.
- Maximum operating pressure of 10 bar with motors sealed to IP55.
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- Stainless steel manifolds provide two Rp 2 inch threaded manifold connections ready for plant pipework.
- At P2 each main pump is 1.5 kW, covering the duty without oversizing the frame.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
What's Included
- 2 x Grundfos CRNE 5-8 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 340 L/Min |
| Max Head | 79 m |
| Power | 2 x 1.5 kW / 415v |
| Rated Current | 2 x 3.1 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Under full duty operation, what maximum head and operating pressure does this booster package produce?
Vertical elevation performance allows the Grundfos Hydro Multi-E 2 CRNE 5-8 U2 A-A-I-I-DU (part number 99752240) to develop up to 79 m total dynamic head within an 10 bar system rating.
Which manifold connection ports and isolation valve components are supplied on this booster set?
Mechanical manifold assembly on the Hydro Multi-E 2 CRNE 5-8 supplies R 2 stainless steel suction and discharge pipework fitted with isolating valves and discharge check valves.
What warranty coverage protects this factory assembled multi-pump booster package?
Official manufacturer backing on the Hydro-Multi-E-2-CRNE-5-8 provides a Grundfos two-year warranty with authorized Australian technical assistance and spare parts availability.
Which volumetric pumping rate does this multistage booster unit deliver during maximum demand?
During periods of high consumption, the Hydro Multi E 2 CRNE 5 8 provides a maximum water flow rate of 340 L/min.
What variable speed electric motors power the parallel pump stages in this booster system?
Each centrifugal pump of the 2 CRNE 5-8 (Hydro Multi-E) is driven by a 1.5 kW IE5 permanent-magnet MGE electric motor running on a 3 x 380-415 V power supply with integrated speed regulation.
