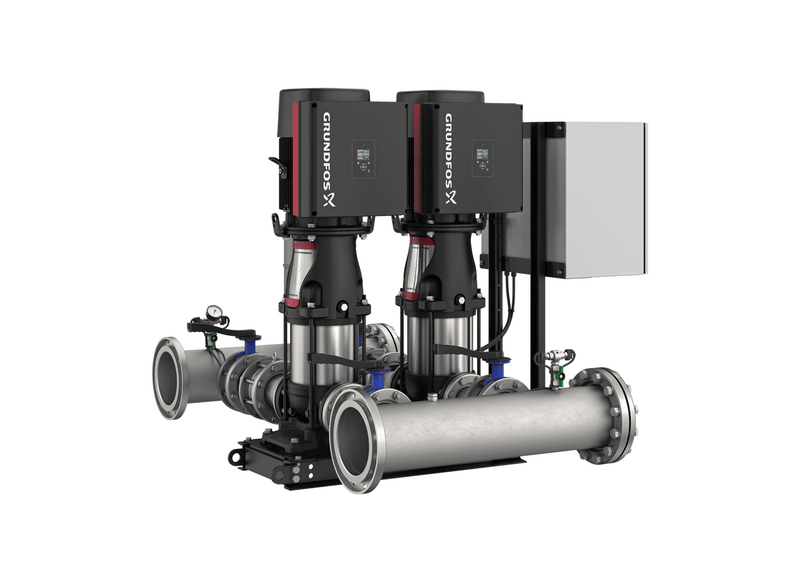

Grundfos Hydro Multi-E 2 x CRNE 95-2-2 Three Phase 2 x 18.5kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
University campus dormitories facing heavy morning demand spikes count on the Hydro Multi-E 2 CRNE 95-2-2 for reliable water delivery. Staged parallel operation between two CRNE 95-2-2 pumps maintains consistent line pressure without erratic cycling. The complete booster system ships factory assembled and certified under part number 93368459.
The staged pump configuration delivers up to 5000 L/min of continuous capacity. Line pressure is maintained with up to 71.4 metres of maximum delivery head. Advanced Multi-Master firmware shares operating duties directly between pump heads, providing immediate fail-safe handover if an individual drive is isolated.
Factory piped with wetted stainless steel components, the set features dual manifolds, two 200 mm manifold connections, isolation and non-return valves, pressure sensors, plus a 24L diaphragm tank. It connects to a 3 x 380-415 V supply at 50 / 60 Hz with combined rated current of 64 A (2 x 32 A per pump). Motors carry IP54 sealing with maximum pressure of 10 bar. Liquid-temperature suitability is 5°C to 60°C, and inlet pressure is rated to 10 bar.
Target commercial applications cover food production facilities, logistics distribution hubs and aquatic sports centres, where water consumption fluctuates. Variable-speed motor modulation makes the set a practical clean-water pressure-boosting solution for both new plant rooms and system upgrades.
FEATURES
- Stainless steel manifolds provide two 200 mm manifold connections ready for plant pipework.
- At P2 each main pump is 18.5 kW, covering the duty without oversizing the frame.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a smartphone.
- The system protects its pumps against dry running if the incoming supply is lost.
- Each pump is driven by IE5 permanent magnet motors with frequency-controlled speed matching demand.
- Maximum operating pressure of 10 bar with motors sealed to IP54.
- Two Grundfos CRNE 95-2-2 vertical multistage pumps run in parallel on one common base frame.
- Power use precisely tracks demand, avoiding the waste of fixed-speed alternates.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- Cascade logic brings pumps on-line and off-line against changing demand without manual intervention.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- Constant pressure control holds the delivered pressure flat while proportional mode lets setpoints flex with demand.
What's Included
- 2 x Grundfos CRNE 95-2-2 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 5000 L/Min |
| Max Head | 71 m |
| Power | 2 x 18.5 kW / 415v |
| Rated Current | 2 x 32 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 200 mm |
| Outlet Size | 200 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which suction and discharge manifold connections and isolation valves are integrated onto the skid?
Interconnecting pipework on the Grundfos Hydro Multi-E 2 CRNE95-2-2 U2 A-A-I-I-D (part number 93368459) features factory-fitted DN 200 stainless steel suction and discharge manifolds with non-return check valves and isolation valves.
How is this variable speed multi-pump package supported under manufacturer warranty?
Investment protection for the Hydro Multi-E 2 CRNE95-2-2 features a genuine Grundfos two-year manufacturer warranty supported by nationwide technical service and replacement components.
What peak water displacement rate does this variable frequency booster unit achieve?
During peak facility consumption cycles, the Hydro-Multi-E-2-CRNE95-2-2 delivers up to 5000 L/min across its parallel wet ends.
Which electric motor package and drive electronics power each pump on this packaged skid?
Drive hardware for the Hydro Multi E 2 CRNE95 2 2 consists of two IE5 permanent-magnet MGE electric motors rated at 18.5 kW each on a 3 x 380-415 V power supply.
What maximum dynamic lift and operating pressure rating applies to this booster package?
Pumping across elevated risers, the 2 CRNE95-2-2 (Hydro Multi-E) maintains up to 71.4 m total dynamic head while supporting 10 bar maximum pressure.
