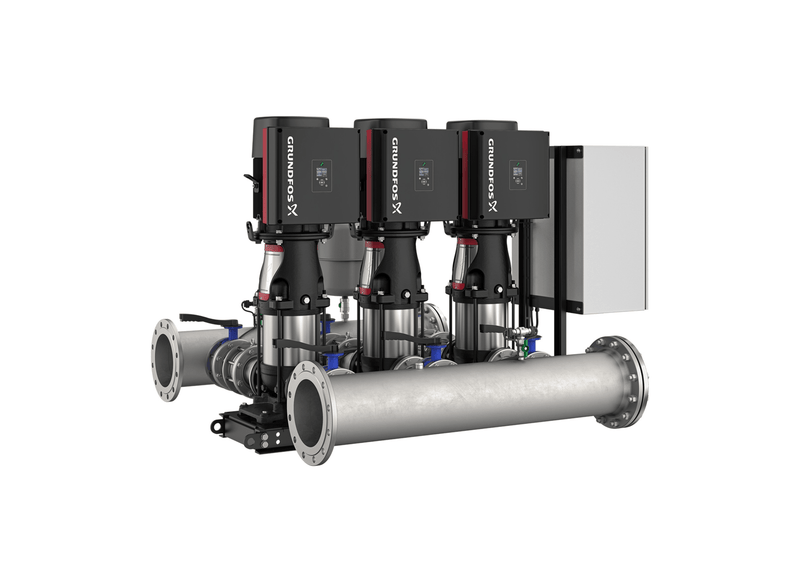

Grundfos Hydro Multi-E 3 x CRE 45-2 Three Phase 3 x 15kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Suburban sports clubs and fitness gyms balancing peak post-workout showers rely on the Hydro Multi-E 3 CRE 45-2. Three Grundfos CRE 45-2 multistage pumps work in unison on the base frame, modulating rotational speed to follow the facility draw curve. Everything is ordered under the single manufacturer part number 93328664.
The engineered pump set achieves flow rates up to 3500 L/min at full speed. The vertical stage assembly can build up to 75 metres of head for steep elevations. Integrated Multi-Master intelligence coordinates the pumps without requiring an external control panel, ensuring automatic role swapping and uninterrupted pressure stabilization.
Factory mounted on an anti-vibration skid, the set incorporates stainless steel manifolds, two 200 mm manifold connections, isolation and non-return valves, pressure sensors, plus a 24L diaphragm tank. It connects to a 3 x 380-415 V supply at 50 / 60 Hz with combined rated current of 77.4 A (3 x 25.8 A per pump). Motors carry IP54 sealing with maximum pressure of 10 bar. Liquid-temperature suitability is 5°C to 60°C, and inlet pressure is rated to 10 bar.
Proven across major commercial facilities like mixed-use commercial buildings, corporate office towers and shopping centres, the system runs with minimal maintenance. Variable-speed motor modulation makes the set a practical clean-water pressure-boosting solution for both new plant rooms and system upgrades.
FEATURES
- Each pump is driven by IE5 permanent magnet motors with frequency-controlled speed matching demand.
- Both constant-pressure and proportional-pressure modes are available, so plant rooms can tune response to pipework.
- Pumps are cut in and out according to demand, every running unit turning at the same speed to hold the pressure set point.
- Power use precisely tracks demand, avoiding the waste of fixed-speed alternates.
- Each main pump is rated 15 kW (P2), so per-pump draw scales down as speed follows demand.
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- Maximum operating pressure of 10 bar with motors sealed to IP54.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a smartphone.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- The system pairs three CRE 45-2 pumps in parallel duty, controlled as a single coordinated system.
- Dry-running protection is built into the control, protecting the pumps if the suction supply is interrupted.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- Stainless steel manifolds provide two 200 mm manifold connections ready for plant pipework.
What's Included
- 3 x Grundfos CRE 45-2 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 3500 L/Min |
| Max Head | 75 m |
| Power | 3 x 15 kW / 415v |
| Rated Current | 3 x 25.8 Amps |
| Suitable For | Commercial Water Supply, Pressure Boosting |
| Body Material | Cast Iron |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 200 mm |
| Outlet Size | 200 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which variable speed motor technology provides mechanical power to the pumps on this skid?
Mechanical propulsion across the Grundfos Hydro Multi-E 3 CRE45-2 U2 A-A-I-I-D (part number 93328664) relies on three 15 kW IE5 permanent-magnet MGE electric motors running on a 3 x 380-415 V mains feed.
Under peak elevation requirements, what total dynamic head does this booster set achieve?
Vertical discharge capability on the Hydro Multi-E 3 CRE45-2 supplies up to 75 m dynamic elevation head while maintaining 10 bar pressure tolerance.
What manifold port diameters and check valve fittings connect the pumps on this booster assembly?
Piping infrastructure across the Hydro-Multi-E-3-CRE45-2 supplies factory-fitted DN 200 stainless steel suction and discharge headers with line check valves and isolating valves.
What manufacturer warranty backing supports this packaged variable speed pump set?
Protection on the Hydro Multi E 3 CRE45 2 is provided by a comprehensive Grundfos two-year manufacturer warranty with extensive Australian technical service and spare parts support.
Which water throughput capacity does this multi-pump booster set maintain during maximum facility draw?
When all pumps run simultaneously, the 3 CRE45-2 (Hydro Multi-E) maintains a total delivery throughput of up to 3500 L/min.
