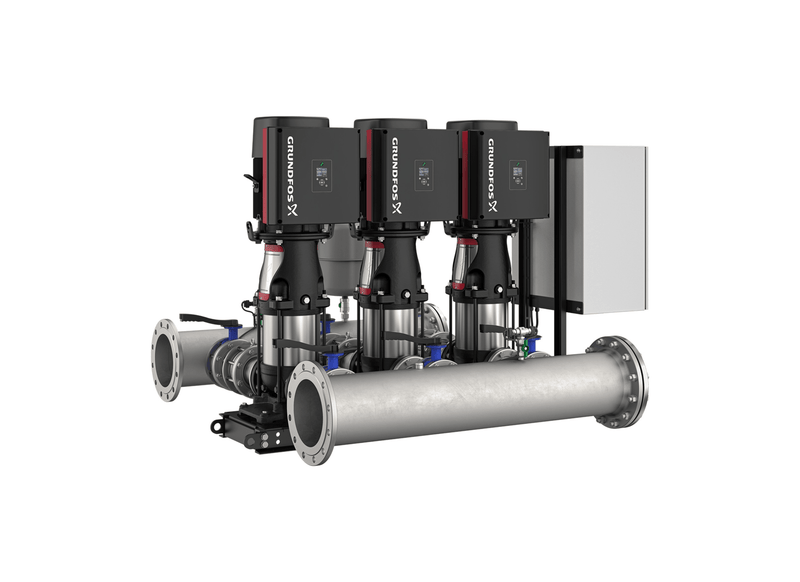

Grundfos Hydro Multi-E 3 x CRE 45-4 Three Phase 3 x 26kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Automotive service centres and heavy vehicle wash bays depend on the Hydro Multi-E 3 CRE 45-4. Three Grundfos CRE 45-4 multistage pumps share the hydraulic load across a common skid, staging smoothly to match real-time draw. Quote part number 93320255 to have the entire pre-commissioned assembly delivered to site.
Total manifold throughput reaches up to 3500 L/min under heavy draw. Up to 150.6 metres of shut-off head is generated to overcome vertical riser friction. There is no separate central controller to purchase: Multi-Master control resides within the pumps, either unit can assume the controlling role, and a fault is handed over cleanly without interrupting supply.
Pre-assembled on a heavy-gauge channel base, the package brings together stainless steel pipework, two 200 mm manifold connections, isolation and non-return valves, pressure sensors, plus a 24L diaphragm tank. It connects to a 3 x 380-415 V supply at 50 / 60 Hz with combined rated current of 132 A (3 x 44 A per pump). Motors carry IP54 sealing with maximum pressure of 16 bar. Liquid-temperature suitability is 5°C to 60°C, and inlet pressure is rated to 16 bar.
Installation environments routinely include hospital surgical wings, aged-care complexes and industrial process supply, where water usage shifts throughout the day. Variable-speed motor modulation makes the set a practical clean-water pressure-boosting solution for both new plant rooms and system upgrades.
FEATURES
- Power use precisely tracks demand, avoiding the waste of fixed-speed alternates.
- The system pairs three CRE 45-4 pumps in parallel duty, controlled as a single coordinated system.
- The system protects its pumps against dry running if the incoming supply is lost.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- Maximum operating pressure of 16 bar with motors sealed to IP54.
- Both constant-pressure and proportional-pressure modes are available, so plant rooms can tune response to pipework.
- Stainless steel manifolds provide two 200 mm manifold connections ready for plant pipework.
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a smartphone.
- Cascade logic brings pumps on-line and off-line against changing demand without manual intervention.
- Each pump is driven by IE5 permanent magnet motors with frequency-controlled speed matching demand.
- Rated 26 kW (P2) on every main pump in the frame.
What's Included
- 3 x Grundfos CRE 45-4 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 3500 L/Min |
| Max Head | 150 m |
| Power | 3 x 26 kW / 415v |
| Rated Current | 3 x 44 Amps |
| Suitable For | Commercial Water Supply, Pressure Boosting |
| Body Material | Cast Iron |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 200 mm |
| Outlet Size | 200 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which warranty protection and technical support covers this packaged booster assembly?
Complete skid backing for the Grundfos Hydro Multi-E 3 CRE45-4 U2 A-A-I-I-D (part number 93320255) includes an authentic Grundfos two-year manufacturer warranty covering the motors, wet ends, and integrated controls.
What volumetric liquid delivery can this multi-pump package supply for building water distribution?
Under maximum plant draw, the Hydro Multi-E 3 CRE45-4 supplies up to 3500 L/min of clean water through parallel multistage stages.
How are the pump wet ends powered and electronically controlled during variable demand hours?
Electrical propulsion across the Hydro-Multi-E-3-CRE45-4 utilizes three 26 kW IE5 permanent-magnet MGE electric motors wired for 3 x 380-415 V supply.
What vertical discharge head and system pressure rating does this packaged booster unit generate?
Under peak line requirements, the Hydro Multi E 3 CRE45 4 delivers a maximum vertical head of 150.6 m and accommodates system pressures up to 16 bar.
Which pipe connection fittings and check valves are assembled onto this packaged booster skid?
Pre-assembled manifold pipework on the 3 CRE45-4 (Hydro Multi-E) includes DN 200 stainless steel suction and discharge headers with isolating valves and non-return valves.
