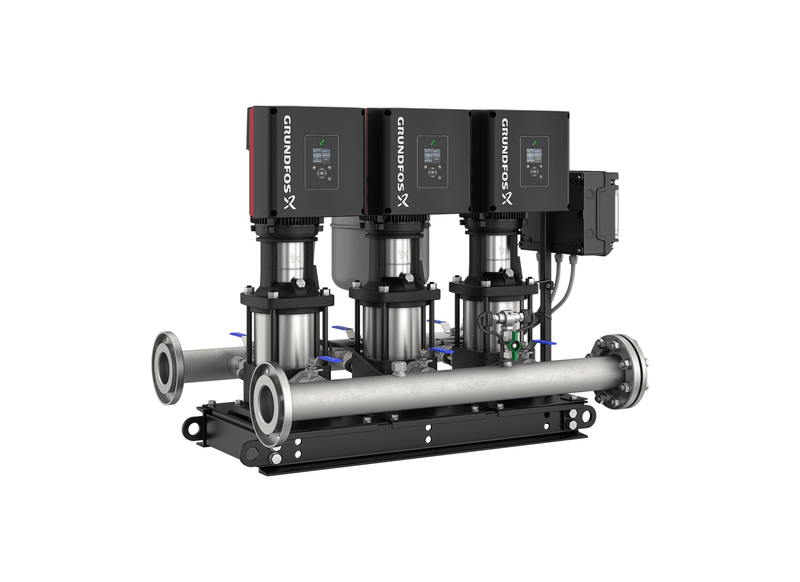

Grundfos Hydro Multi-E 3 x CRNE 10-2 Single Phase 3 x 1.1kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Regional community sports pavilions managing weekend game demand select the Hydro Multi-E 3 CRNE 10-2. The package operates three Grundfos CRNE 10-2 vertical multistage pumps in parallel, automatically staging each unit as flow demand increases. Part number 99752279 provides the complete tested package in a single order line.
Providing high volumetric performance up to 905 L/min across peak hours, Multistage vertical hydraulics produce up to 29 metres of maximum head. Because every pump carries its own frequency converter and Multi-Master software elects the controlling pump itself, losing a control unit or pressure sensor means seamless handover rather than a shutdown.
Constructed on a heavy-duty mounting frame, the assembly incorporates stainless steel manifolds, two 80 mm manifold connections, isolation and non-return valves, pressure sensors, plus a 24L diaphragm tank. It connects to a 1 x 200-240 V supply at 50 / 60 Hz with combined rated current of 19.4 A (3 x 6.47 A per pump). Motors carry IP55 sealing with maximum pressure of 10 bar. Liquid-temperature suitability is 5°C to 60°C, and inlet pressure is rated to 10 bar.
Key commercial installations regularly feature the set across high-rise apartments, hotel plant rooms and schools and universities for constant line pressure. Variable-speed motor modulation makes the set a practical clean-water pressure-boosting solution for both new plant rooms and system upgrades.
FEATURES
- Each main pump is rated 1.1 kW (P2), so per-pump draw scales down as speed follows demand.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- Stainless steel manifolds provide two 80 mm manifold connections ready for plant pipework.
- Cascade logic brings pumps on-line and off-line against changing demand without manual intervention.
- The system protects its pumps against dry running if the incoming supply is lost.
- Power use precisely tracks demand, avoiding the waste of fixed-speed alternates.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a smartphone.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- Variable speed comes from frequency converters matched to IE5 permanent magnet motors, keeping the booster set in its efficient range.
- Maximum operating pressure of 10 bar with motors sealed to IP55.
- Three Grundfos CRNE 10-2 pumps share the boosting work in parallel.
- The controller tracks the pressure setpoint with proportional deviation alerts before conditions become faults.
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
What's Included
- 3 x Grundfos CRNE 10-2 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 905 L/Min |
| Max Head | 29 m |
| Power | 3 x 1.1 kW / 240v |
| Rated Current | 3 x 6.47 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much total elevation head can this variable speed multi-pump package generate?
Header line pressure created by the Grundfos Hydro Multi-E 3 CRNE 10-2 U8 A-A-I-I-DU (part number 99752279) delivers up to 29 m total dynamic head across pipework rated up to 10 bar.
How are the suction and discharge manifolds plumbed to provide individual pump isolation?
Interconnecting fluid headers on the Hydro Multi-E 3 CRNE 10-2 incorporate DN 80 stainless steel suction and discharge pipework with built-in isolating valves and non-return valves.
What manufacturer warranty duration covers this variable speed booster assembly?
The complete factory package of the Hydro-Multi-E-3-CRNE-10-2 is supported by a Grundfos two-year manufacturer warranty encompassing the base skid, motors, and wet ends.
Under high volumetric demand, what water delivery capacity can this packaged booster unit maintain?
Discharge performance allows the Hydro Multi E 3 CRNE 10 2 to supply up to 905 L/min of water across distribution ringmains.
Which electric motors and integrated frequency converters power this multi-pump booster skid?
Variable frequency drive electronics on the 3 CRNE 10-2 (Hydro Multi-E) control three IE5 permanent-magnet MGE electric motors of 1.1 kW each from a 1 x 200-240 V power supply.
