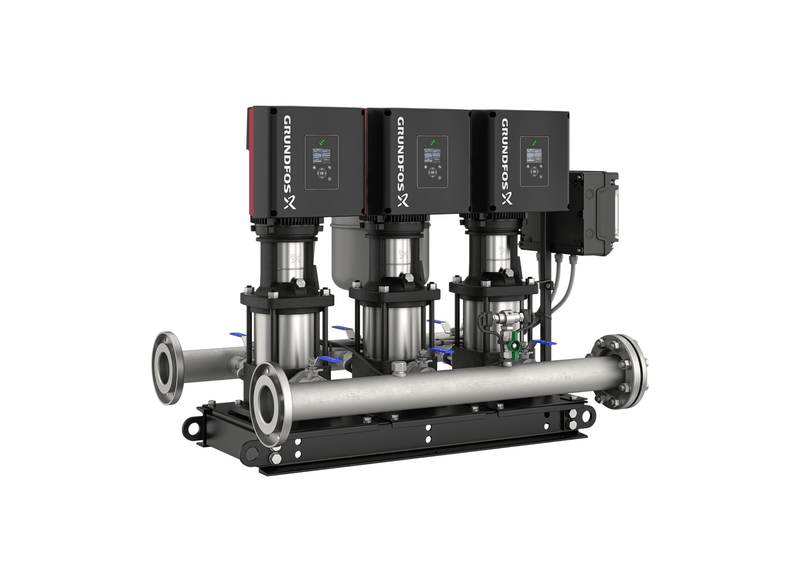

Grundfos Hydro Multi-E 3 x CRNE 10-2 Three Phase 3 x 0.75kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
High-occupancy residential hostels balancing shared kitchen and bathroom lines choose the Hydro Multi-E 3 CRNE 10-2. Staged parallel operation between three CRNE 10-2 pumps maintains consistent line pressure without erratic cycling. The complete booster system ships factory assembled and certified under part number 99752277.
Total system throughput expands up to 905 L/min during maximum operation. Line pressure is maintained with up to 29 metres of maximum delivery head. Advanced Multi-Master firmware shares operating duties directly between pump heads, providing immediate fail-safe handover if an individual drive is isolated.
Factory built on an anti-vibration channel, the booster combines stainless steel pipework, two 80 mm manifold connections, isolation and non-return valves, pressure sensors, plus a 24L diaphragm tank. It connects to a 3 x 380-415 V supply at 50 / 60 Hz with combined rated current of 5.55 A (3 x 1.85 A per pump). Motors carry IP55 sealing with maximum pressure of 10 bar. Liquid-temperature suitability is 5°C to 60°C, and inlet pressure is rated to 10 bar.
The package serves commercial facilities like food production facilities, logistics distribution hubs and aquatic sports centres, where sudden fixture rushes are common. Variable-speed motor modulation makes the set a practical clean-water pressure-boosting solution for both new plant rooms and system upgrades.
FEATURES
- The controller tracks the pressure setpoint with proportional deviation alerts before conditions become faults.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a smartphone.
- Stainless steel manifolds provide two 80 mm manifold connections ready for plant pipework.
- The system protects its pumps against dry running if the incoming supply is lost.
- At P2 each main pump is 0.75 kW, covering the duty without oversizing the frame.
- Energy draw matches the actual job because speed follows demand, not a fixed curve.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- The system pairs three CRNE 10-2 pumps in parallel duty, controlled as a single coordinated system.
- Pumps are cut in and out according to demand, every running unit turning at the same speed to hold the pressure set point.
- Frequency converters on the motors pair with IE5 permanent magnet motors for efficient part-load operation.
- Maximum operating pressure of 10 bar with motors sealed to IP55.
What's Included
- 3 x Grundfos CRNE 10-2 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 905 L/Min |
| Max Head | 29 m |
| Power | 3 x 0.75 kW / 415v |
| Rated Current | 3 x 1.85 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Under full system demand, how much water volume does this parallel pump package discharge?
Factory hydraulic data confirms the Grundfos Hydro Multi-E 3 CRNE 10-2 U2 A-A-I-I-DU (part number 99752277) provides up to 905 L/min peak water delivery during high draw.
What electric propulsion and frequency inverter technology drives this multi-pump set?
Built-in variable speed electronics on the Hydro Multi-E 3 CRNE 10-2 regulate three 0.75 kW IE5 permanent-magnet MGE electric motors operating from a 3 x 380-415 V supply.
How much total dynamic head pressure can this multistage booster package maintain?
Discharge pressure performance allows the Hydro-Multi-E-3-CRNE-10-2 to achieve up to 29 m maximum dynamic head under an 10 bar rated system pressure.
How are the pumps interconnected via common stainless steel suction and discharge manifolds?
Factory-assembled plumbing on the Hydro Multi E 3 CRNE 10 2 integrates DN 80 stainless steel suction and discharge pipe headers with dedicated isolation and check valves.
What manufacturer warranty terms back this complete packaged booster package?
Comprehensive warranty coverage on the 3 CRNE 10-2 (Hydro Multi-E) provides a Grundfos two-year manufacturer warranty backed by extensive Australian distribution and service networks.
