SKU: 99752282

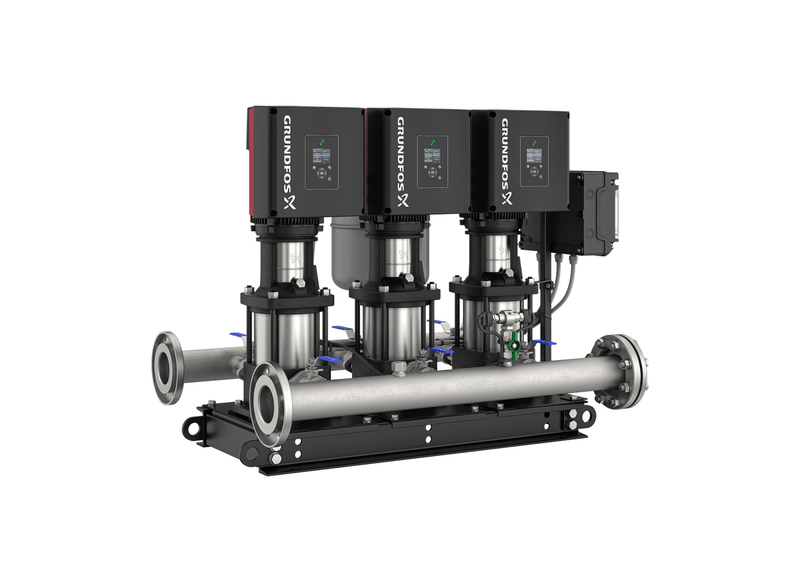

Grundfos Hydro Multi-E 3 x CRNE 10-2 Three Phase 3 x 1.1kW Variable Speed 304ss Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Commercial food cannery facilities maintaining steady process line water operate the Hydro Multi-E 3 CRNE 10-2. Integrated variable-speed drives coordinate the three CRNE 10-2 pumps in parallel, seamlessly ramping output as fixtures open. Everything is ordered under the single manufacturer part number 99752282.
Discharge delivery comfortably reaches up to 905 L/min under heavy duty. The vertical stage assembly can build up to 29 metres of head for steep elevations. Because every pump carries its own frequency converter and Multi-Master software elects the controlling pump itself, losing a control unit or pressure sensor means seamless handover rather than a shutdown.
Firmly secured on a structural base skid, the system features stainless steel manifolds, two 80 mm manifold connections, isolation and non-return valves, pressure sensors, plus a 24L diaphragm tank. It connects to a 3 x 380-415 V supply at 50 / 60 Hz with combined rated current of 7.11 A (3 x 2.37 A per pump). Motors carry IP55 sealing with maximum pressure of 10 bar. Liquid-temperature suitability is 5°C to 60°C, and inlet pressure is rated to 10 bar.
Clean-water boosting applications cover high-rise apartments, hotel plant rooms and schools and universities, where automated speed modulation is preferred. Variable-speed motor modulation makes the set a practical clean-water pressure-boosting solution for both new plant rooms and system upgrades.
FEATURES
- Dry-running protection is built into the control, protecting the pumps if the suction supply is interrupted.
- Each pump is driven by IE5 permanent magnet motors with frequency-controlled speed matching demand.
- Constant pressure control holds the delivered pressure flat while proportional mode lets setpoints flex with demand.
- Maximum operating pressure of 10 bar with motors sealed to IP55.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- Energy draw matches the actual job because speed follows demand, not a fixed curve.
- Pump staging follows demand automatically: pumps enter at low speed as pressure drops, ramp to equal speed, and exit as flow fades.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a smartphone.
- Three Grundfos CRNE 10-2 pumps share the boosting work in parallel.
- Stainless steel manifolds provide two 80 mm manifold connections ready for plant pipework.
- Each main pump is rated 1.1 kW (P2), so per-pump draw scales down as speed follows demand.
What's Included
- 3 x Grundfos CRNE 10-2 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 905 L/Min |
| Max Head | 29 m |
| Power | 3 x 1.1 kW / 415v |
| Rated Current | 3 x 2.37 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which electric motor power rating and voltage supply powers each pump in this booster set?
Inverter-driven electric propulsion on the Grundfos Hydro Multi-E 3 CRNE 10-2 U2 A-A-I-I-DU (part number 99752282) provides mechanical output via three 1.1 kW IE5 permanent-magnet MGE electric units from a 3 x 380-415 V electrical supply.
Which maximum vertical elevation does this packaged multi-pump booster unit provide?
Across high-lift distribution piping, the Hydro Multi-E 3 CRNE 10-2 supplies up to 29 m total dynamic head with an operating pressure rating of 10 bar.
What suction and discharge connection fittings are provided across the factory manifold skid?
Factory pipework configuration on the Hydro-Multi-E-3-CRNE-10-2 incorporates DN 80 stainless steel manifolds, complete with individual pump isolating valves and line check valves.
Which manufacturer warranty terms apply to the complete packaged booster set?
Australian warranty protection on the Hydro Multi E 3 CRNE 10 2 features a comprehensive Grundfos two-year manufacturer warranty covering the pumps, manifold headers, and motors.
How much fluid volume can this parallel multistage pump set discharge during high consumption periods?
Across variable demand cycles, the 3 CRNE 10-2 (Hydro Multi-E) maintains up to 905 L/min total water throughput into the ringmain.
