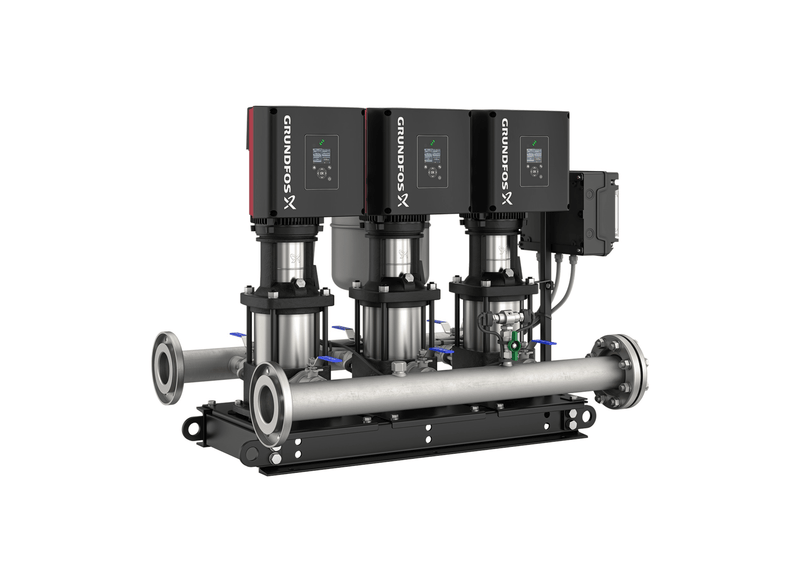

Grundfos Hydro Multi-E 3 x CRNE 10-4 Three Phase 3 x 1.5kW Variable Speed 304ss Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Civic cultural centres and performing arts theatres maintain amenities with the Hydro Multi-E 3 CRNE 10-4. The three-pump parallel layout shares duty evenly across the CRNE 10-4 wet ends, preserving steady pressure during morning spikes. Ordering part number 99752288 puts the fully tested booster skid directly onto the plant room floor.
Supplying up to 905 L/min of pressurized water across facility mains, Up to 60 metres of delivery head is available to keep upper-floor fixtures pressurised. There is no separate central controller to purchase: Multi-Master control resides within the pumps, either unit can assume the controlling role, and a fault is handed over cleanly without interrupting supply.
Supplied on an engineered floor-mounted chassis, the assembly brings together stainless steel pipework, two 80 mm manifold connections, isolation and non-return valves, pressure sensors, plus a 24L diaphragm tank. It connects to a 3 x 380-415 V supply at 50 / 60 Hz with combined rated current of 9.3 A (3 x 3.1 A per pump). Motors carry IP55 sealing with maximum pressure of 10 bar. Liquid-temperature suitability is 5°C to 60°C, and inlet pressure is rated to 10 bar.
The booster delivers seamless pressure regulation across hospital surgical wings, aged-care complexes and industrial process supply, adapting instantly to changes. Variable-speed motor modulation makes the set a practical clean-water pressure-boosting solution for both new plant rooms and system upgrades.
FEATURES
- The controller tracks the pressure setpoint with proportional deviation alerts before conditions become faults.
- Rated 1.5 kW (P2) on every main pump in the frame.
- Three Grundfos CRNE 10-4 pumps share the boosting work in parallel.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- Frequency converters on the motors pair with IE5 permanent magnet motors for efficient part-load operation.
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- Slow-speed duty and staged switching keep consumption down through low-demand hours.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- Dry-running protection is built into the control, protecting the pumps if the suction supply is interrupted.
- Maximum operating pressure of 10 bar with motors sealed to IP55.
- Pump staging follows demand automatically: pumps enter at low speed as pressure drops, ramp to equal speed, and exit as flow fades.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a smartphone.
- Stainless steel manifolds provide two 80 mm manifold connections ready for plant pipework.
What's Included
- 3 x Grundfos CRNE 10-4 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 905 L/Min |
| Max Head | 60 m |
| Power | 3 x 1.5 kW / 415v |
| Rated Current | 3 x 3.1 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum discharge head and system pressure does this parallel centrifugal skid maintain?
Dynamic head performance from the Grundfos Hydro Multi-E 3 CRNE 10-4 U2 A-A-I-I-DU (part number 99752288) attains a vertical elevation of up to 60 m within an 10 bar pressure rating.
Which inlet and outlet pipe connection fittings are factory supplied on this booster package?
Factory header connections on the Hydro Multi-E 3 CRNE 10-4 provide DN 80 stainless steel suction and discharge manifolds with individual pump isolating valves and non-return check valves.
Which factory warranty terms protect this complete multi-pump booster package?
Grundfos provides two-year manufacturer warranty coverage on the Hydro-Multi-E-3-CRNE-10-4, securing the complete multi-pump package, manifolds, and integrated electronics.
What peak flow rate can this parallel multistage pump package supply to the distribution network?
Hydraulic output from the Hydro Multi E 3 CRNE 10 4 provides a peak volumetric transfer capacity of 905 L/min during high consumption.
What electrical motor drive setup provides variable speed propulsion across this booster package?
High-efficiency motor packages on the 3 CRNE 10-4 (Hydro Multi-E) incorporate three 1.5 kW IE5 permanent-magnet MGE electric drives wired for 3 x 380-415 V operation.
