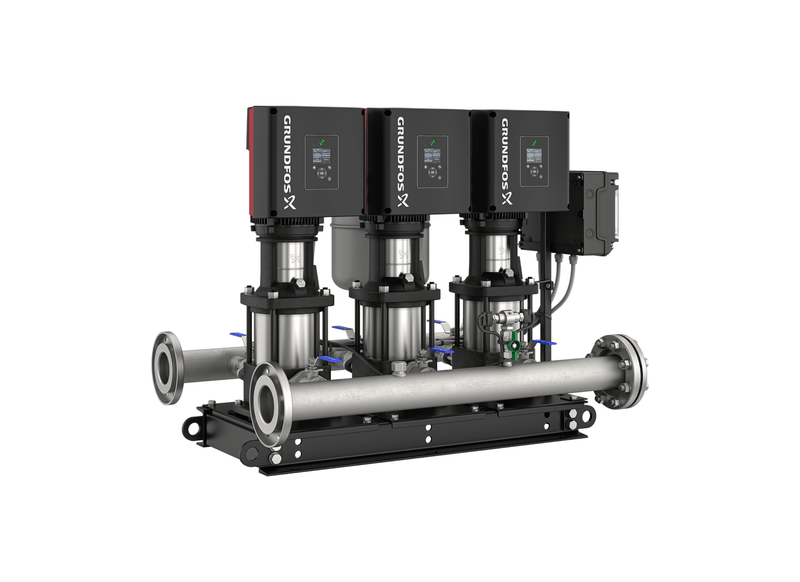

Grundfos Hydro Multi-E 3 x CRNE 10-6 Three Phase 3 x 3kW Variable Speed 304ss Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Wholesale produce market pavilions running morning wash hoses install the Hydro Multi-E 3 CRNE 10-6. Operating three CRNE 10-6 pumps in parallel duty, the booster automatically cuts pumps in and out to track line velocity. Quote part number 99752293 to have the entire pre-commissioned assembly delivered to site.
The booster provides up to 905 L/min of total clean-water capacity. Up to 89 metres of shut-off head is generated to overcome vertical riser friction. Advanced Multi-Master firmware shares operating duties directly between pump heads, providing immediate fail-safe handover if an individual drive is isolated.
Delivered as a factory-tested pumping assembly, the set incorporates stainless steel pipework, two 80 mm manifold connections, isolation and non-return valves, pressure sensors, plus a 24L diaphragm tank. It connects to a 3 x 380-415 V supply at 50 / 60 Hz with combined rated current of 18.6 A (3 x 6.2 A per pump). Motors carry IP55 sealing with maximum pressure of 10 bar. Liquid-temperature suitability is 5°C to 60°C, and inlet pressure is rated to 10 bar.
The system provides dedicated plant room boosting for food production facilities, logistics distribution hubs and aquatic sports centres, keeping line velocity balanced. Variable-speed motor modulation makes the set a practical clean-water pressure-boosting solution for both new plant rooms and system upgrades.
FEATURES
- Frequency converters on the motors pair with IE5 permanent magnet motors for efficient part-load operation.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- The system protects its pumps against dry running if the incoming supply is lost.
- Maximum operating pressure of 10 bar with motors sealed to IP55.
- Stainless steel manifolds provide two 80 mm manifold connections ready for plant pipework.
- Energy draw matches the actual job because speed follows demand, not a fixed curve.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a smartphone.
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- Pump staging follows demand automatically: pumps enter at low speed as pressure drops, ramp to equal speed, and exit as flow fades.
- Three Grundfos CRNE 10-6 pumps share the boosting work in parallel.
- Each main pump is rated 3 kW (P2), so per-pump draw scales down as speed follows demand.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- Constant pressure control holds the delivered pressure flat while proportional mode lets setpoints flex with demand.
What's Included
- 3 x Grundfos CRNE 10-6 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 905 L/Min |
| Max Head | 89 m |
| Power | 3 x 3 kW / 415v |
| Rated Current | 3 x 6.2 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What manufacturer warranty period covers the pumps and electronic drive package?
Equipment warranty protection on the Grundfos Hydro Multi-E 3 CRNE 10-6 U2 A-A-I-I-DU (part number 99752293) features an authentic Grundfos two-year manufacturer warranty covering the base assembly, wet ends, and drive package.
Which maximum volumetric delivery does this packaged booster system provide for distribution headers?
Full-load water displacement on the Hydro Multi-E 3 CRNE 10-6 achieves up to 905 L/min across the common discharge manifold.
How are the centrifugal pumps driven and inverter regulated across variable network demands?
Electronic speed regulation across the Hydro-Multi-E-3-CRNE-10-6 is provided by three IE5 permanent-magnet MGE electric motors of 3 kW apiece on a 3 x 380-415 V electrical supply.
Under full discharge duty, what maximum elevation head does this packaged booster skid maintain?
Total dynamic head delivered by the Hydro Multi E 3 CRNE 10 6 attains up to 89 m to overcome pipe elevation resistance up to 10 bar.
Which suction and discharge pipe fittings are factory integrated on this packaged booster set?
Site plumbing connections on the 3 CRNE 10-6 (Hydro Multi-E) feature DN 80 stainless steel suction and discharge manifolds complete with dedicated isolating valves and non-return valves.
