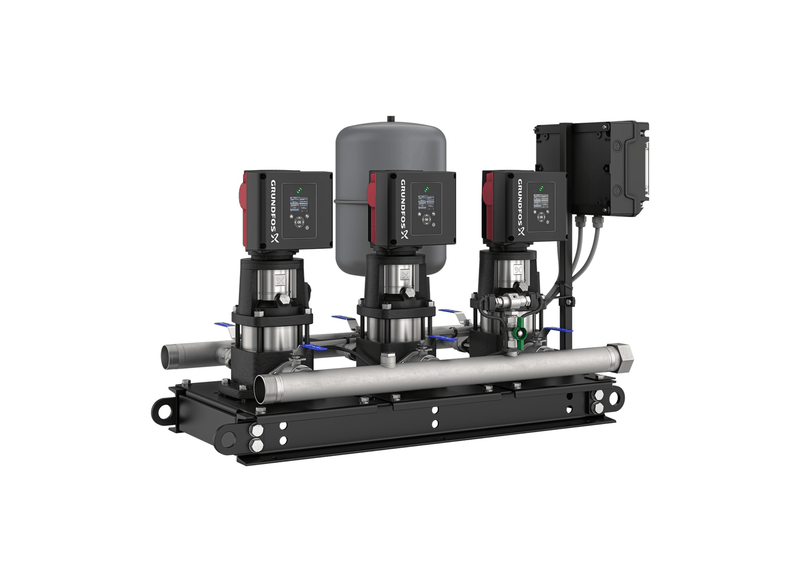

Grundfos Hydro Multi-E 3 x CRNE 5-12 Three Phase 3 x 2.2kW Variable Speed 304ss Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Meat packaging wholesale depots running wash-down sanitation lines install the Hydro Multi-E 3 CRNE 5-12. Integrated variable-speed drives coordinate the three CRNE 5-12 pumps in parallel, seamlessly ramping output as fixtures open. Specify part number 99752248 and the complete factory-tested package arrives ready for connection.
Header volume achieves up to 510 L/min under maximum commercial loading. To pressurise elevated upper levels, the pumps develop up to 120 metres of head. Because every pump carries its own frequency converter and Multi-Master software elects the controlling pump itself, losing a control unit or pressure sensor means seamless handover rather than a shutdown.
Positioned on an engineered structural skid, the set brings together stainless steel manifolds, two Rp 2 inch threaded manifold connections, isolation and non-return valves, pressure sensors, plus a 24L diaphragm tank. It connects to a 3 x 380-415 V supply at 50 / 60 Hz with combined rated current of 13.3 A (3 x 4.43 A per pump). Motors carry IP55 sealing with maximum pressure of 16 bar. Liquid-temperature suitability is 5°C to 60°C, and inlet pressure is rated to 16 bar.
The set is widely installed across facilities like high-rise apartments, hotel plant rooms and schools and universities for responsive, staged pressure control. Variable-speed motor modulation makes the set a practical clean-water pressure-boosting solution for both new plant rooms and system upgrades.
FEATURES
- Pumps are cut in and out according to demand, every running unit turning at the same speed to hold the pressure set point.
- Stainless steel manifolds provide two Rp 2 inch threaded manifold connections ready for plant pipework.
- Each main pump is rated 2.2 kW (P2), so per-pump draw scales down as speed follows demand.
- The system pairs three CRNE 5-12 pumps in parallel duty, controlled as a single coordinated system.
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- Variable speed comes from frequency converters matched to IE5 permanent magnet motors, keeping the booster set in its efficient range.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- Maximum operating pressure of 16 bar with motors sealed to IP55.
- Constant pressure control holds the delivered pressure flat while proportional mode lets setpoints flex with demand.
- Dry-running protection is built into the control, protecting the pumps if the suction supply is interrupted.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- Slow-speed duty and staged switching keep consumption down through low-demand hours.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a smartphone.
What's Included
- 3 x Grundfos CRNE 5-12 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 510 L/Min |
| Max Head | 120 m |
| Power | 3 x 2.2 kW / 415v |
| Rated Current | 3 x 4.43 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which manifold connection ports and isolation valve components are supplied on this booster set?
Factory manifold integration on the Grundfos Hydro Multi-E 3 CRNE 5-12 U2 A-A-I-I-DU (part number 99752248) incorporates R 2 stainless steel suction and discharge pipework with individual check valves and isolating valves.
What warranty coverage protects this factory assembled multi-pump booster package?
Australian technical protection for the Hydro Multi-E 3 CRNE 5-12 includes a genuine Grundfos two-year manufacturer warranty supported by factory-trained technicians and spare components.
Which volumetric pumping rate does this multistage booster unit deliver during maximum demand?
Under maximum water demand, the Hydro-Multi-E-3-CRNE-5-12 delivers a peak displacement rate of 510 L/min across parallel centrifugal stages.
What variable speed electric motors power the parallel pump stages in this booster system?
Variable speed propulsion on the Hydro Multi E 3 CRNE 5 12 utilizes three 2.2 kW IE5 permanent-magnet MGE electric motors connected to a 3 x 380-415 V power line.
Under high pressure conditions, what maximum dynamic head does this parallel pump unit deliver?
Delivering high-elevation lift, the 3 CRNE 5-12 (Hydro Multi-E) maintains up to 120 m dynamic head with an allowable working pressure of 16 bar.
