SKU: 93637845

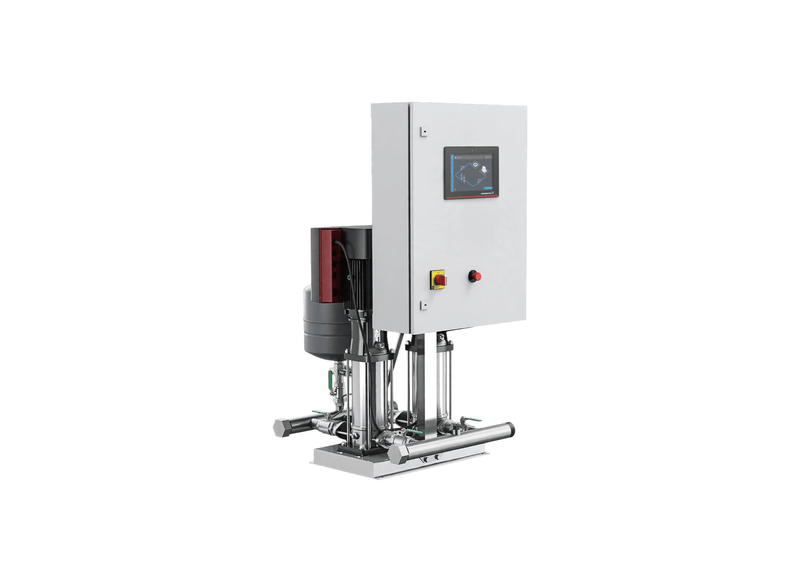

Grundfos Hydro MPC-E 2 x CRNE 10-9 Three Phase 2 x 5.5kW 304ss Booster System w/8L Tank and CU 352 Controller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The Hydro MPC-E 2 CRNE 10-9 is a proven fit for mixed-use buildings where a single booster covers retail, offices and apartments, with two Grundfos CRNE 10-9 pumps staged automatically as demand varies. Quote part number 93637845 to have it arrive pre-configured and ready for the plant room.
The system supports flow rates up to 519 L/min. It can develop up to 131 metres of head for dependable pressure boosting. A Grundfos GENIECON PANEL on the common base frame provides the system control; the GENIECON UNIT within it holds the exact hydraulic and electrical data of the pumps, so staging and changeover decisions are based on the pumps' actual curves.
Factory assembled on a common base, the set combines stainless steel pipework, two 50 mm manifold connections, isolation and non-return valves, pressure sensors and a gauge, plus an 8L diaphragm tank. It connects to a 3 x 400 V supply at 50 Hz with a rated current of 20.7 A. Motors are protected to IP54, while maximum system pressure is 16 bar. Liquid-temperature suitability is 5°C to 60°C.
Typical duty sits with water supply networks, irrigation schemes and industry. It is designed for clean-water pressure boosting where demand varies through the day.
Features
- The controller tracks the pressure setpoint with proportional deviation alerts before conditions become faults.
- A suction-side pressure sensor guards the pumps against dry running.
- The touch-panel GENIECON interface shows system status and allows direct setpoint changes on the door.
- Stainless steel manifolds provide two 50 mm manifold connections ready for pipework.
- Two Grundfos CRNE 10-9 vertical multistage pumps run in parallel on one common base frame.
- Each main pump is rated 5.5 kW (P2), so per-pump draw scales down as speed follows demand.
- Pump staging follows demand automatically: pumps enter at low speed as pressure drops, ramp to equal speed, and exit as flow fades.
- An integrated 8L diaphragm tank carries small draw-offs and limits pump cycling.
- The GENIECON UNIT applies the pumps' exact hydraulic and electrical data when making control decisions.
- Maximum operating pressure of 16 bar with motors sealed to IP54.
- Slow-speed duty and staged switching keep consumption down through low-demand hours.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- Frequency converters on the motors pair with permanent magnet motors for efficient part-load operation.
What's Included
- 2 x Grundfos CRNE 10-9 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- GENIECON PANEL with touch display
- GENIECON multi-pump control unit
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- Inlet pressure monitoring (dry-run protection)
- 8L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 519 L/Min |
| Max Head | 131 m |
| Power | 2 x 5.5 kW / 415v |
| Rated Current | 20.7 Amps |
| Suitable For | Commercial Water Supply, Corrosive Transfer Duty |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C – 60°C |
| Inlet Size | 65 mm |
| Outlet Size | 65 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How is this variable speed booster system protected by factory warranty terms?
The complete factory package of the Grundfos Hydro MPC-E 2 CRNE 10-9 V1 GA-A-A-AG is supported by a Grundfos two-year manufacturer warranty encompassing the base skid, motors, and wet ends.
What peak volumetric water flow can this packaged booster assembly maintain across the network?
Meeting high volumetric requirements, the Hydro MPC-E 2 CRNE 10-9 achieves a maximum water delivery capacity of 519 L/min through coordinated parallel pump operation.
Which electric motor specification and frequency converter powers this multi pump booster unit?
Mechanical drive on the Hydro-MPC-E-2-CRNE-10-9 features two inverter-controlled variable frequency drive MGE electric motors producing 5.5 kW per pump, powered by a 3 x 400 V connection for energy-optimised water delivery.
What vertical head pressure and maximum operating pressure rating does this booster unit provide?
Discharge pressure performance allows the Hydro MPC E 2 CRNE 10 9 to achieve up to 131 m maximum dynamic head under a 16 bar rated system pressure.
What plumbing connection hardware and stainless steel manifolds are integrated on this skid?
Interconnecting pipework on the 2 CRNE 10-9 (Hydro MPC-E) features factory-fitted R 2 1/2" stainless steel suction and discharge manifolds fitted with non-return check valves and isolation valves.
